3.11 - Mounting the front brake hose
(optional)
1
2
2
2
3
3
4

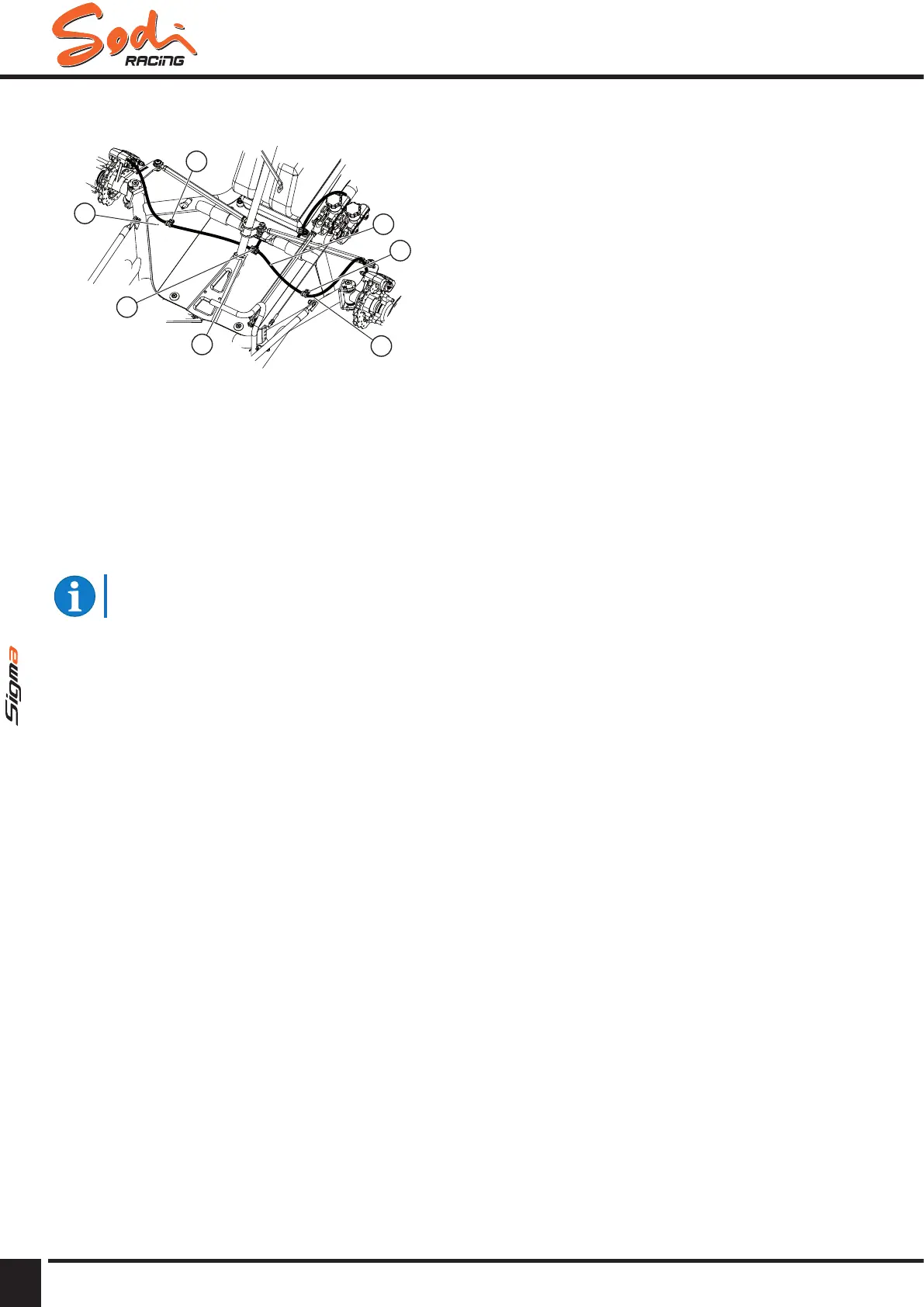

Legend
1 Brake hose
2 Landmark drilling
3 Screw + nut
4 Screw + nut
● Drill the alu board to 6 mm on the landmark (2).
● Place the clamps on the brake hose (1) and tighten
the screws and nuts (3).
● Tighten the connection of the brake hose (1) with
the screw and the nut (4).
● To adjust the front tracking width see
Standard adjustments / Front tracking width
(Kart with front brake).
