Sodi Sigma DD2 - Adjustments; 5.1 - Standard adjustments; 5.2 - Adjustment of front wheels

This document can not be reproduced or released without the Sodikart authorization.
MAN.SIG.EN.02
04/2014
18
CONFIGURE THE KART ACCORDING TO THE GUIDE INSTRUCTIONS
User maintenance guide
5 - Adjustments

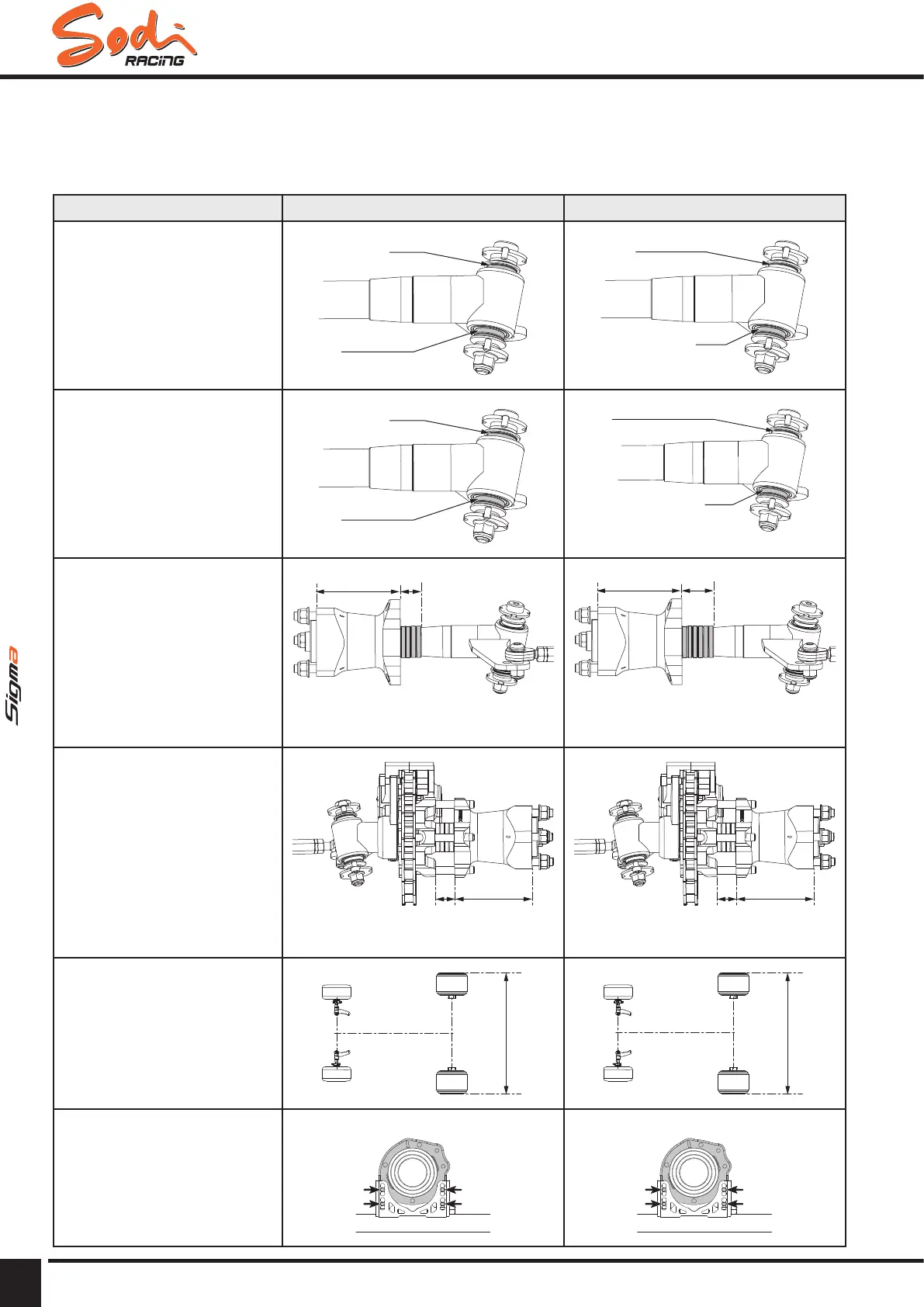

5.1 - Standard adjustments
Dry track Wet track
Stub axle height
SIGMA S3
SIGMA DD2
4mm
4mm + 2mm
2mm
4mm + 4mm
Stub axle height
SIGMA KZ
4mm
4mm + 2mm
0mm
4mm + 4mm + 2mm
Front tracking width
B A
A = 1 rings inside (5mm)
B = 100mm
B A
A = 6 rings inside (30mm)
B = 100mm
Front tracking width
(Kart with front brake)
B
A
A = 1 rings inside (5mm).
B = 100mm
B
A
A = 4 rings inside (20mm).
B = 100mm
Rear tracking width
1390
to
1400
1360
to
1380
Rear axle position MEDIUM MEDIUM
