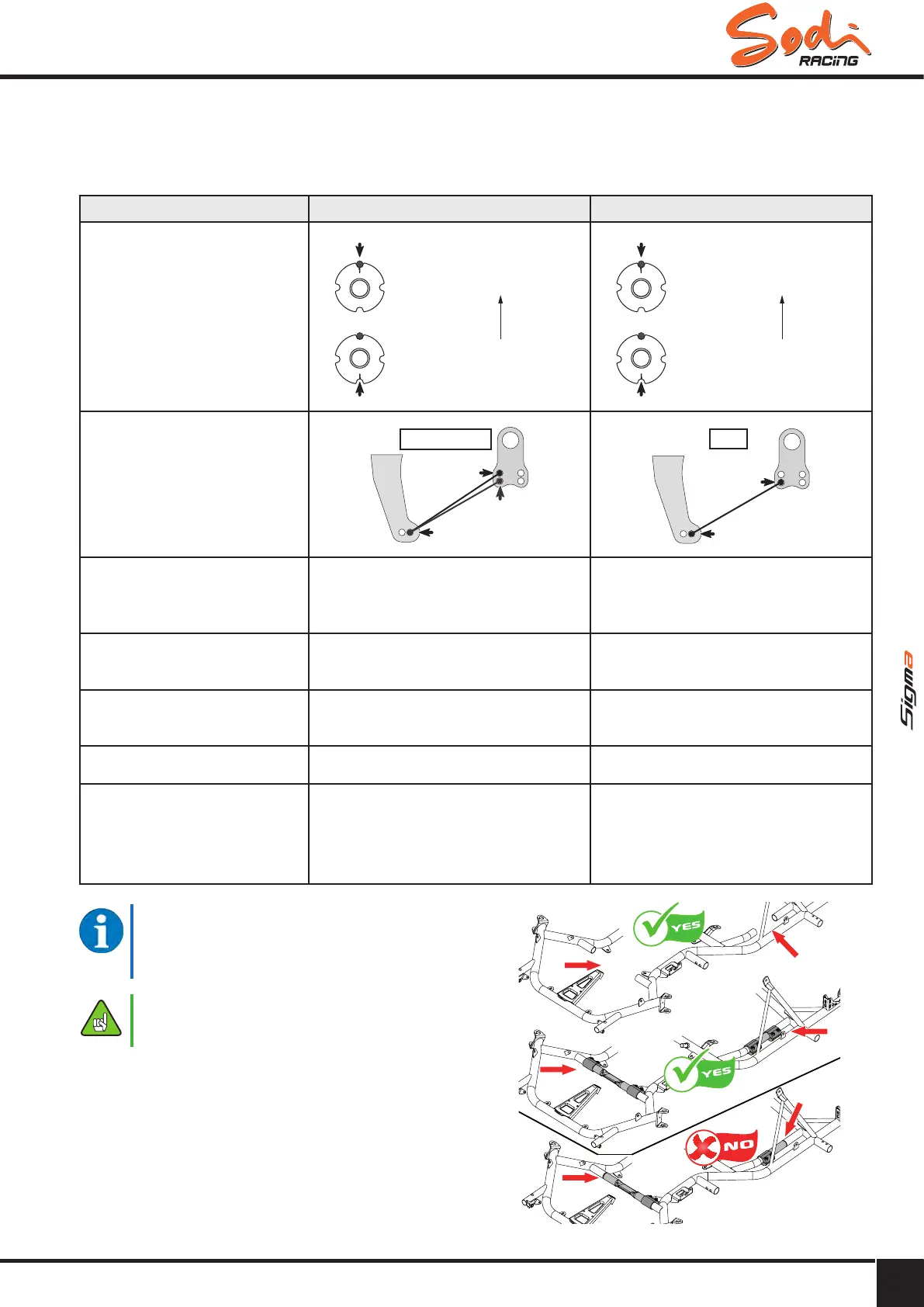

User maintenance guide
Dry track Wet track
Position of eccentrics
TOP
FWD
Mark - Forward
Eccentric 1°
Mark – Backward
BOTTOM
TOP
FWD
Mark - Forward
Eccentric 1°
Mark – Backward
BOTTOM
Position of steering tie rods
ends
1
B
A
2 1
A
B
B-1 or A-1
1
A
2 1
A
B
A-1
Lateral stabilizer
SIGMA S3
SIGMA DD2
REMOVE the stabilizer.
REMOVE or PLACE the stabilizer
following track conditions.
Lateral stabilizer
SIGMA KZ
REMOVE the stabilizer.
REMOVE or PLACE the stabilizer
following track conditions.
Front stabilizer REMOVE or PLACE the stabilizer
following track conditions.
REMOVE or PLACE the stabilizer
following track conditions.
Tyres
(Cf. chap. 6.2.2) (Cf. chap. 6.2.2)
Seat stiffeners SIGMA S3 - SIGMA DD2 :
- 2 on the left and 1 on the right.
SIGMA KZ :
- 2 on the left and 1 on the right.
SIGMA S3 - SIGMA DD2 :
- 2 on the left and 1 on the right.
SIGMA KZ :
- 2 on the left and 2 on the right.
● These adjustments are given for
information. It is advisable to rene these
adjustments according to track conditions
(weather - grip), driving, engine and tires.
●● Always●attach●the●stabilisers●to●the●frame●
with●a●sleeve●at●each●side.
