CONFIGURE THE KART ACCORDING TO THE GUIDE INSTRUCTIONS
User maintenance guide

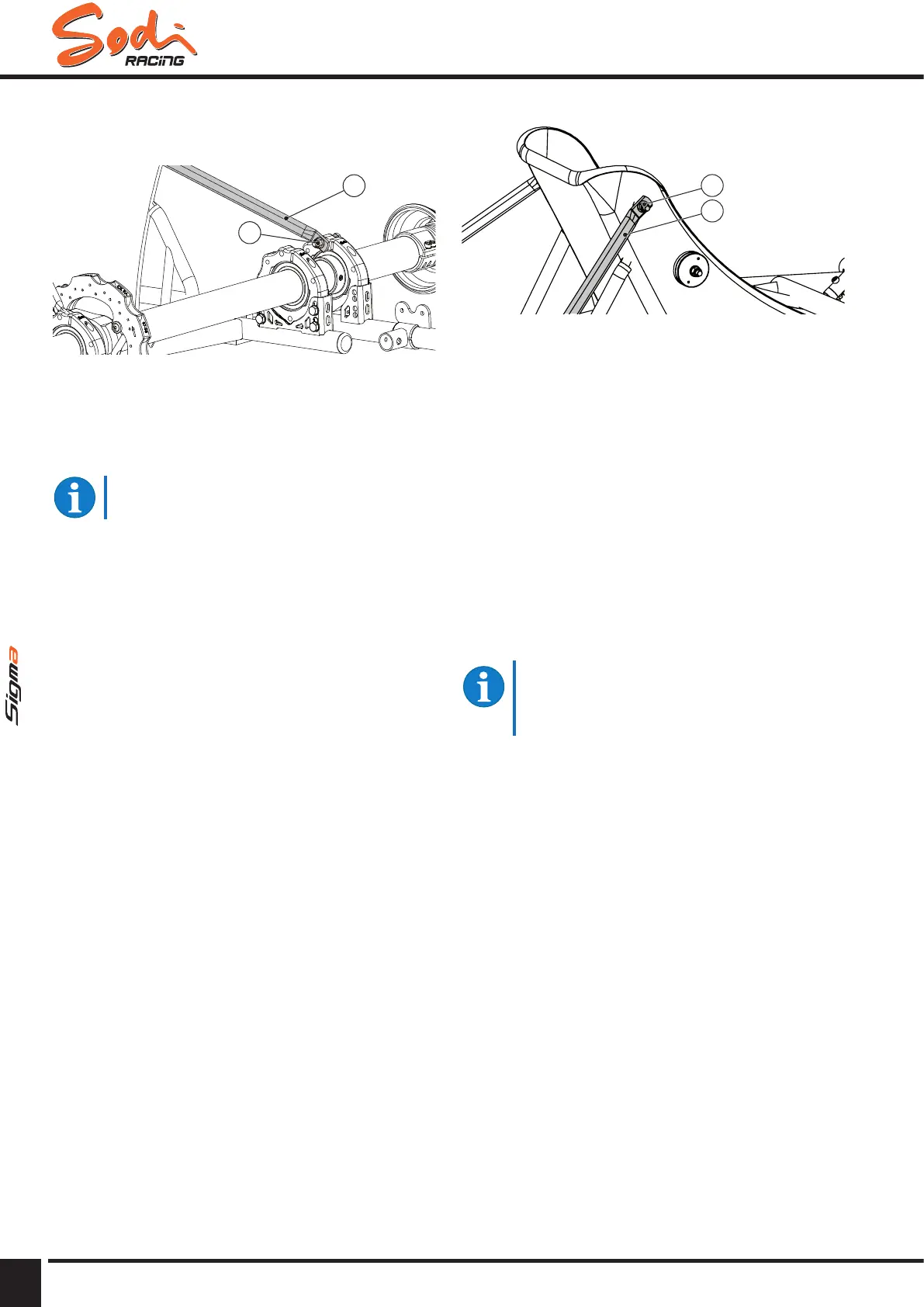

3.7 - Assembly of the seat stiffeners
Lower end
1
2
Legend
1 Seat stiffener
2 Screw
● Put the seat stiffener lower end (1) in place.
● Pre-tighten the assembly with the screw (2).
● For screws and nuts references, refer to
the spare parts.
Upper end
1
2
Legend
1 Seat stiffener
2 Screw + conical washer + nut
● Place the upper end of the stiffener.
● Make sure there is no contact with the exhaust
system and with any part of the engine.
If necessary, slightly bend the stiffener.
● Drill a 8.5 mm diameter hole in the seat.
● Place one screw + conical washer (2).
● Tighten both upper and lower end.
● Apply the same procedure to mount the stiffener on
the left side of the seat.
Note: It is possible to install several seat stiffener (left
and right):
- SIGMA S3-SIGMA KZ-SIGMA DD2 :
2 stiffeners left side and 1 right side stiffener.
● For screws and nuts references, refer to
the spare parts.
● For other types of stiffeners, refer to the
spare parts and the website ITAKA.
