Sodi Sigma DD2 User Manual

This document can not be reproduced or released without the Sodikart authorization.
MAN.SIG.EN.02
04/2014
21
USE SPARE PARTS OF SODI ORIGIN
User maintenance guide

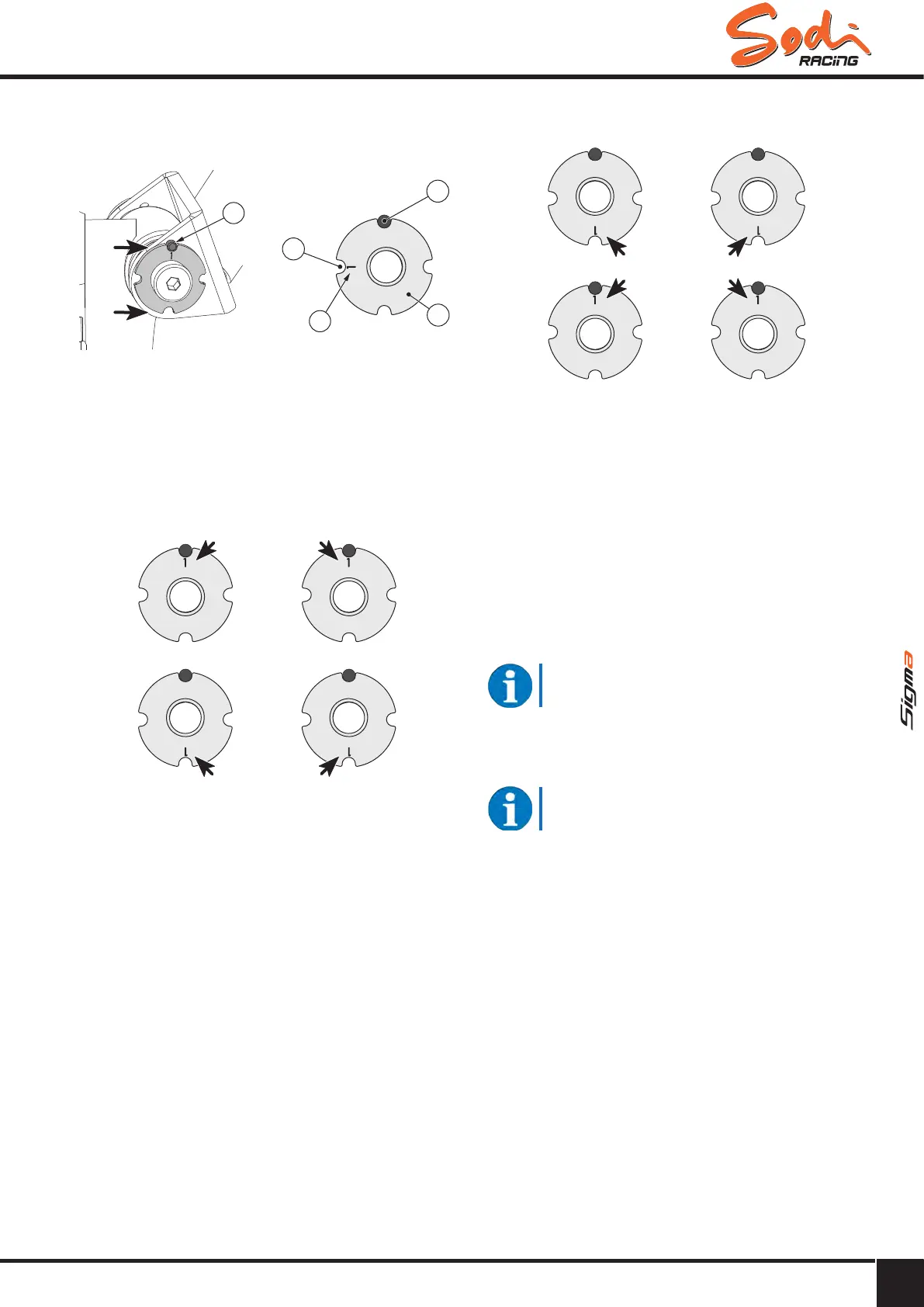

5.2.3 - Adjustment of the caster
Description of the eccentric
Front
Rear
2
1
3
4
2
Legend
1 Eccentric
2 Screw on the fork
3 Marked slot
4 Mark
(1=0.5°, 2 eccentric marked "1" gives 1°)
Adjustment of the caster - High
Front
Left
Right
Rear
Front
Rear
Front
Rear
Front
Rear
Top
Bottom
Eccentrics on top:
● The mark is positioned in front of the screw.
(Towards the front of the chassis).
Eccentrics on bottom:
● The mark is positioned on the opposite side of the
screw.
(Towards the rear of the chassis).
Adjustment of the caster - Low
Front
Left
Right
Rear
Front
Rear
Front
Rear
Front
Rear
Top
Bottom
Eccentrics on top:
● The mark is positioned on the opposite side of the
screw. (Towards the rear of the chassis).
Eccentrics on bottom:
● The mark is positioned in front of the screw.
(Towards the front of the chassis).
Standard adjustment
● 1° eccentrics place in high caster position .
Increase the caster
● 2° eccentric in high caster position.
● In extreme conditions, use 3°, 4° or more
eccentrics.
Reduce the caster
● 2°or 3° eccentric in low caster position.
● In extreme conditions use eccentrics higher
degrees.
