Sodi Sigma DD2 - 3.6 - Assembly of the seat

This document can not be reproduced or released without the Sodikart authorization.
MAN.SIG.EN.02
04/2014
11
USE SPARE PARTS OF SODI ORIGIN
User maintenance guide
Ground clearance
A
1
2
Legend
1 Seat
2 Frame tubes
● Adjust the bottom of the seat (1) with the lower face
of the frame tubes (2).
Seat Position
C
B
SIGMA S3
● B = 220 mm ± 5 mm (mid-point of the rounded,
middle of the seat).
● C = 1020 mm ± 10 mm.
SIGMA KZ
● B = 210 mm ± 5 mm (mid-point of the rounded,
middle of the seat).
● C = 1050 mm ± 10 mm.
SIGMA DD2
● B = 210 mm ± 5 mm (mid-point of the rounded,
middle of the seat).
● C = 1040 mm ± 10 mm.
●● Check●the●presence●of●the●diver●under●the●
red●plug.

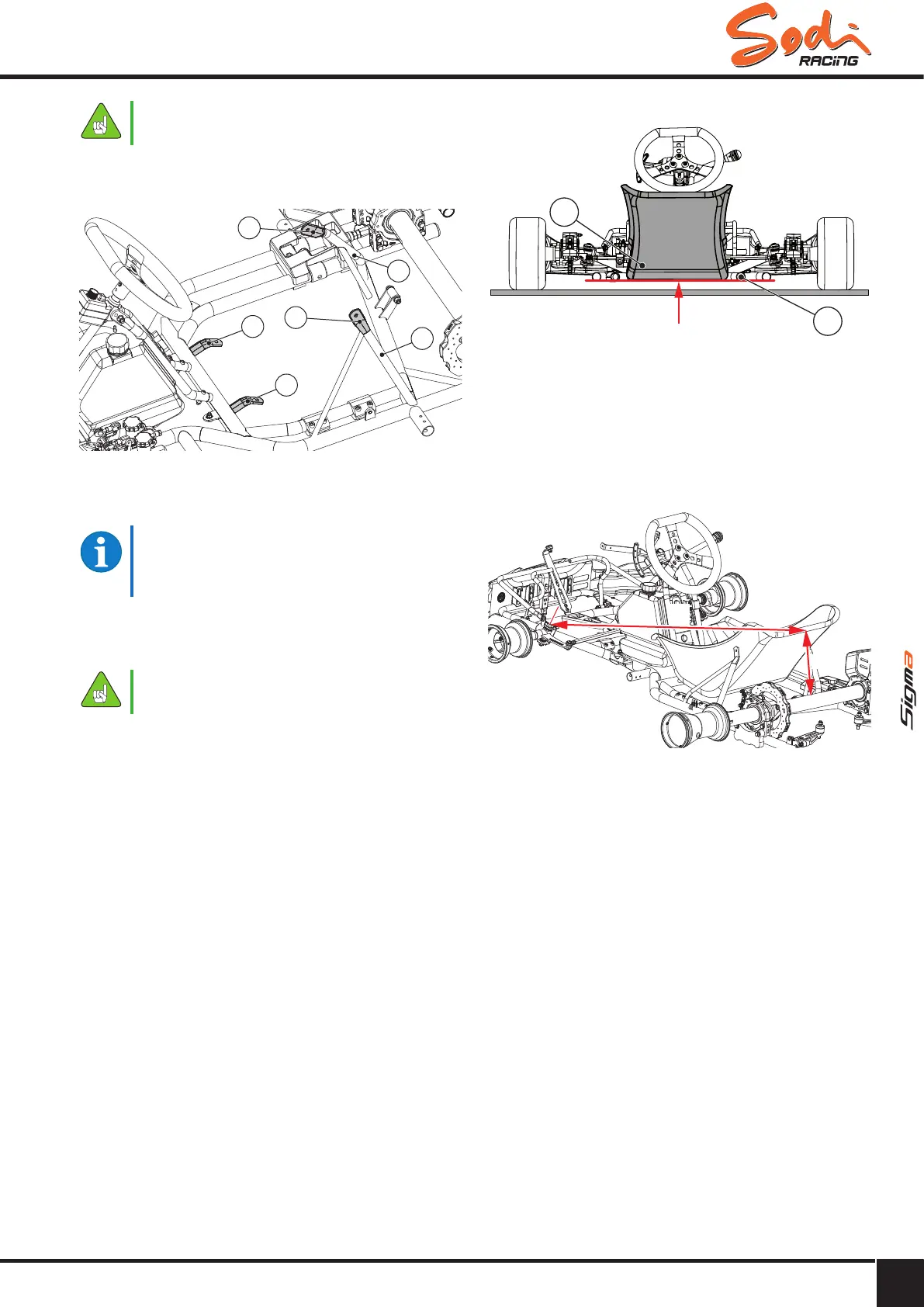

3.6 - Assembly of the seat
1
1
2
2
1
1
Legend
1 Fixing points
2 Seat supports
● Measurements given below correspond
to the standard adjustment of the seat,
recommended by SODIKART, for your
chassis.
● Get the seat supports (2) closer, or wider, depending
on the seat size.
● Use the shims of the seat xing kit to get a good t.
●● The●washers●of●the●seat●xing●kit●comply●
with●CIK/FIA●and●with●your●local●national●
rules.●
