SmartSMS User Manual Soft dB inc.
User Manual p. 71
7.1 Sound Level Sensors Installation
The best location to put the Smart Sound Level Sensor is in the acoustic tile (Figure 64). Sensors
must be installed, if possible, in a central position to catch most of the noise in the zone.
The Sound Level Sensors should be installed at least 3 feet away from any ventilation air outlet.
The air coming out of the air outlet can cause turbulence on the sensor's membrane and distort the
measurements.

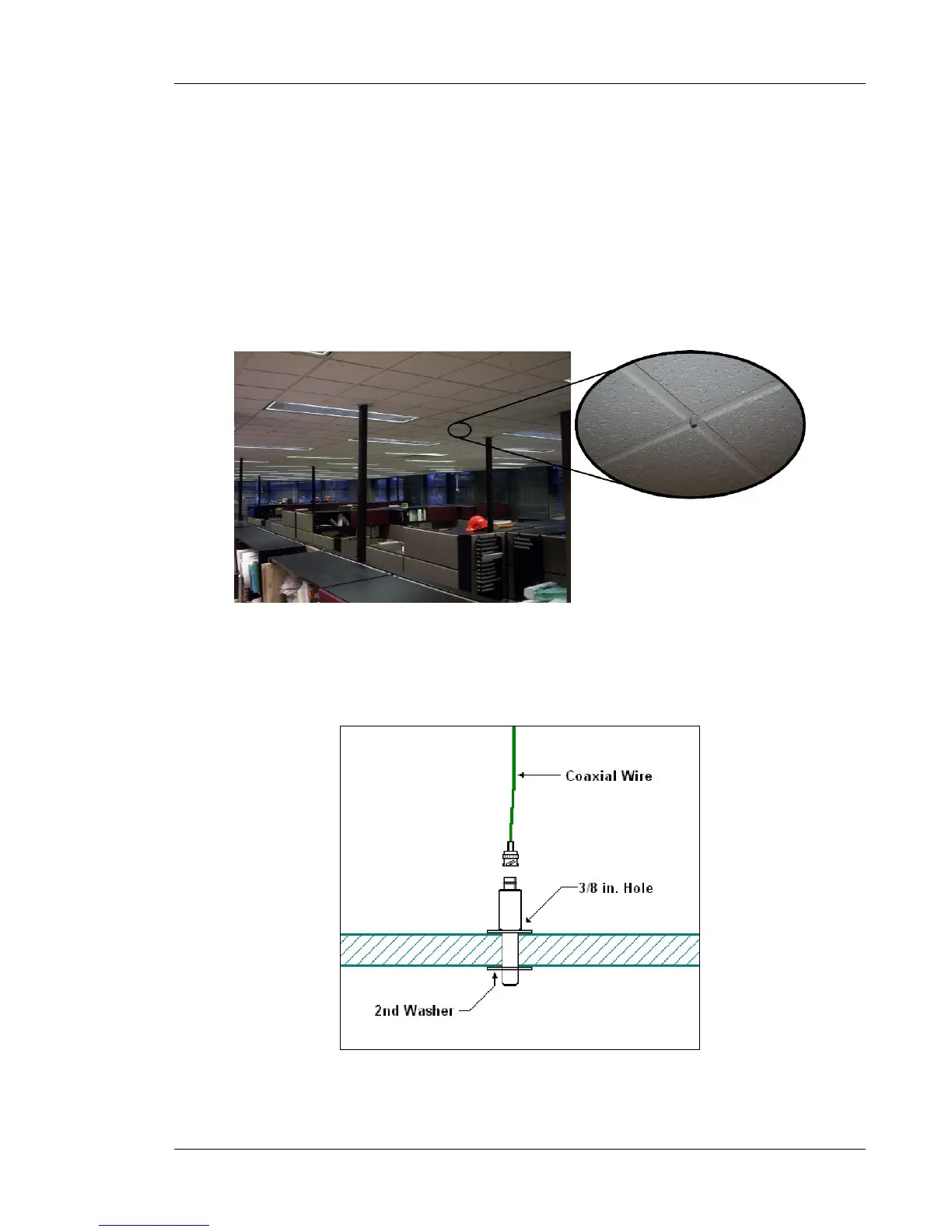

Figure 64: Example of the location and installation of a Sound Level Sensor
Drill a 3/8-inche hole through the tile to install the sensor. Insert the sensor through the tile and use
a second washer if necessary to keep the sensor in place.
Figure 65: Installation of a Sound Level Sensor through the tiles
