Chapter 4: Connecting Environmental Sensors (Optional)
Control and Communication Gateway Installation Guide - MAN-01-00132-1.2
31
► To connect a solar irradiance sensor to the SolarEdge gateway:
1 Connect the thin wires to the control and communication gateway sensors connector as follows (see
Figure 20):
 Orange - to V1
 Black - to Ground
 Red - to 12V
 Leave the thicker black wire (Shield) unconnected.

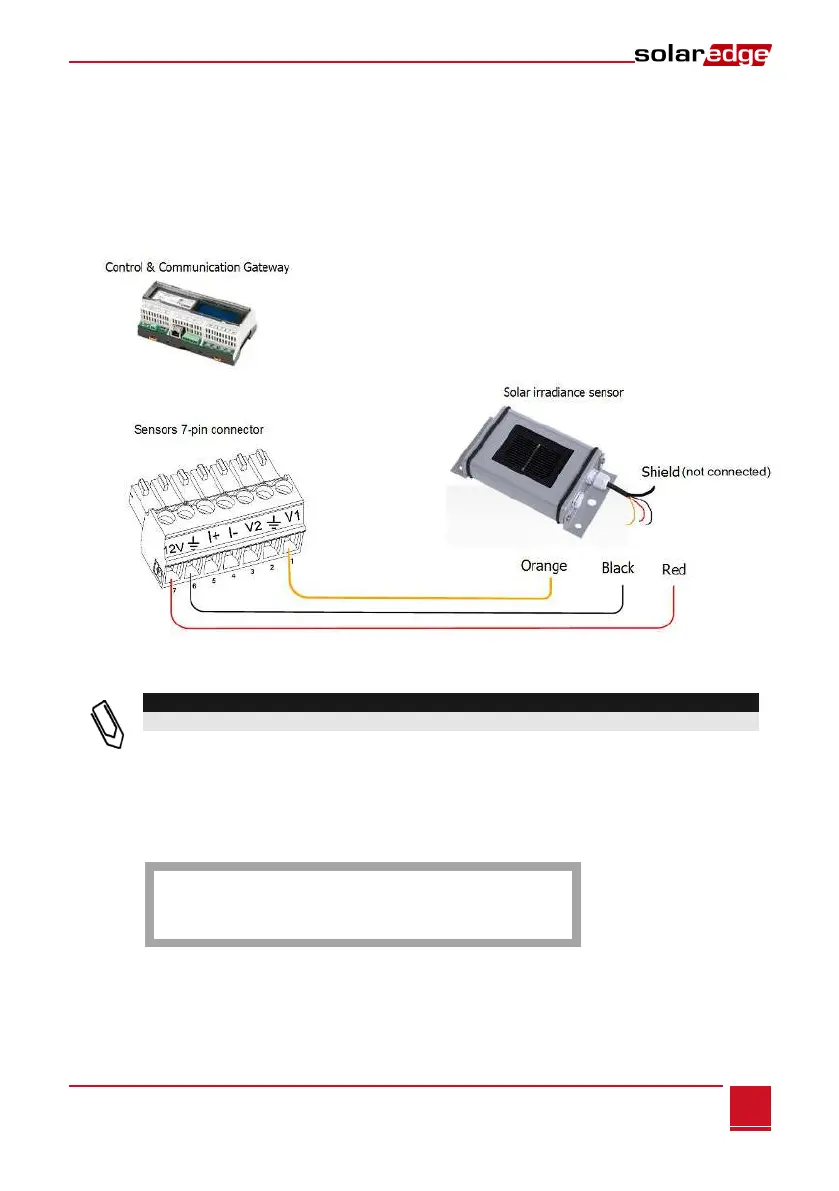

Figure 20: Solar irradiance sensor connection
NOTE:
When configuring this sensor in the gateway, the type should be Irradiance Direct.
► To configure the sensors in the SolarEdge gateway:
1 Enter Setup mode, as described in in Setup Menu Options on page 35.
2 Under the main menu, select Sensors.
3 Select the preferred sensor submenu (V1, V2 or I), and select Enable.
S e n s o r < E N >
R a n g e < 0 - 2 V >
T y p e < - - - >
T w o P o i n t s
If the CPU version of the SolarEdge gateway is 2.07xx and higher, the sensors are automatically configured.
If the CPU version is lower, configure the sensors as described in To configure sensors in the SolarEdge
gateway: on page 27.
