Wifi communication interface is a standard interface, your can read the real
time data in the local network by your smartphone or check the details from
the internet either from PC or smartphone with the wifi monitoring.
Connection steps :
1. Install the antenna on the inverter.
2. Connect the wifi with the router. (as described in the wifi setting guide)
3. Set the station account on the SolaX web.(as described in the wifi
setting guide)
● Wi connection
6.6.2 Communication Interface
This product has a series communication interfaces besides WIFI , LAN, Dry
contact and extend port and for human and machine communication.
Operating information like output voltage, current, frequency, fault information,
etc., can be delivered to PC or other monitoring equipments via these interfaces.
LAN
● Communication
LAN communication is one standard communication interface. It transmits the
data between the router and X-hybrid series inverters in the local area network.
User can set the parameters with specialized software provided by SolaX.

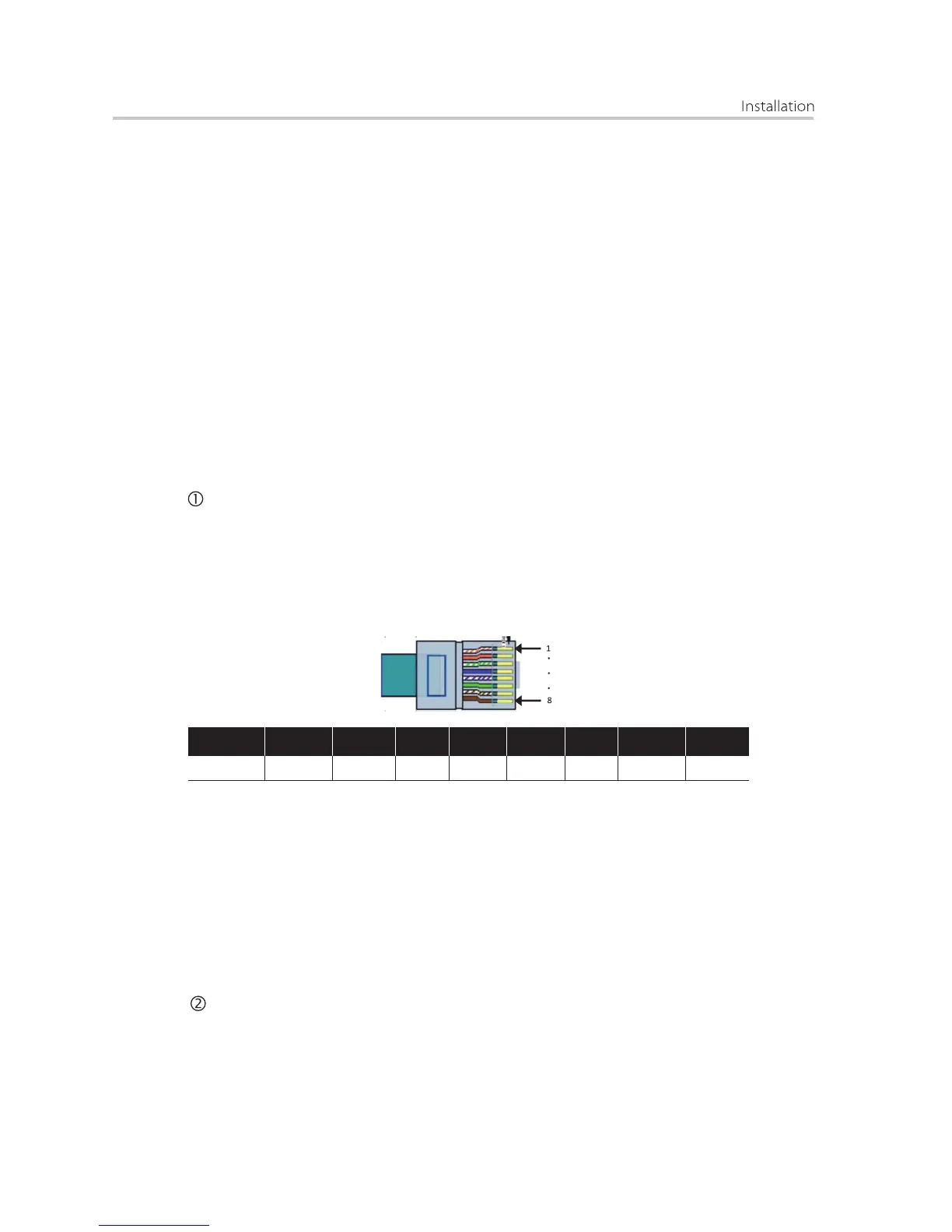

The pin definition of the connector is as below.
● Connection steps
1. Prepare two RJ45 connectors and a communication cable.
2. Trip the insulation from the communication cable.
3. Insert the communication cable into the RJ45 connector following the PIN
definition rule.
4. Crimp the RJ45 connector with the crimping plier.
5. Repeat the above steps to fix the other head of the communication cable.
6. Insert one side of the cable into the LAN port on the inverter, and the
other side of the cable into the router or into the PC if you want to set the
parameters or upgeade the software with SolaX APP.
Dry contact
● Communication
Dry contact is provided to give a remote monitor and remote control with the
optional accessory. The remote monitor function provides an indication on
the inverter's working status. The dry contact communication uses terminal
blocks. The PIN definitions and the circuit connection are as below.
Pin
Function
1
TX+
2
TX-
3
RX+
4
n/c
5
n/c
6
RX-
7
n/c
8
n/c
