27

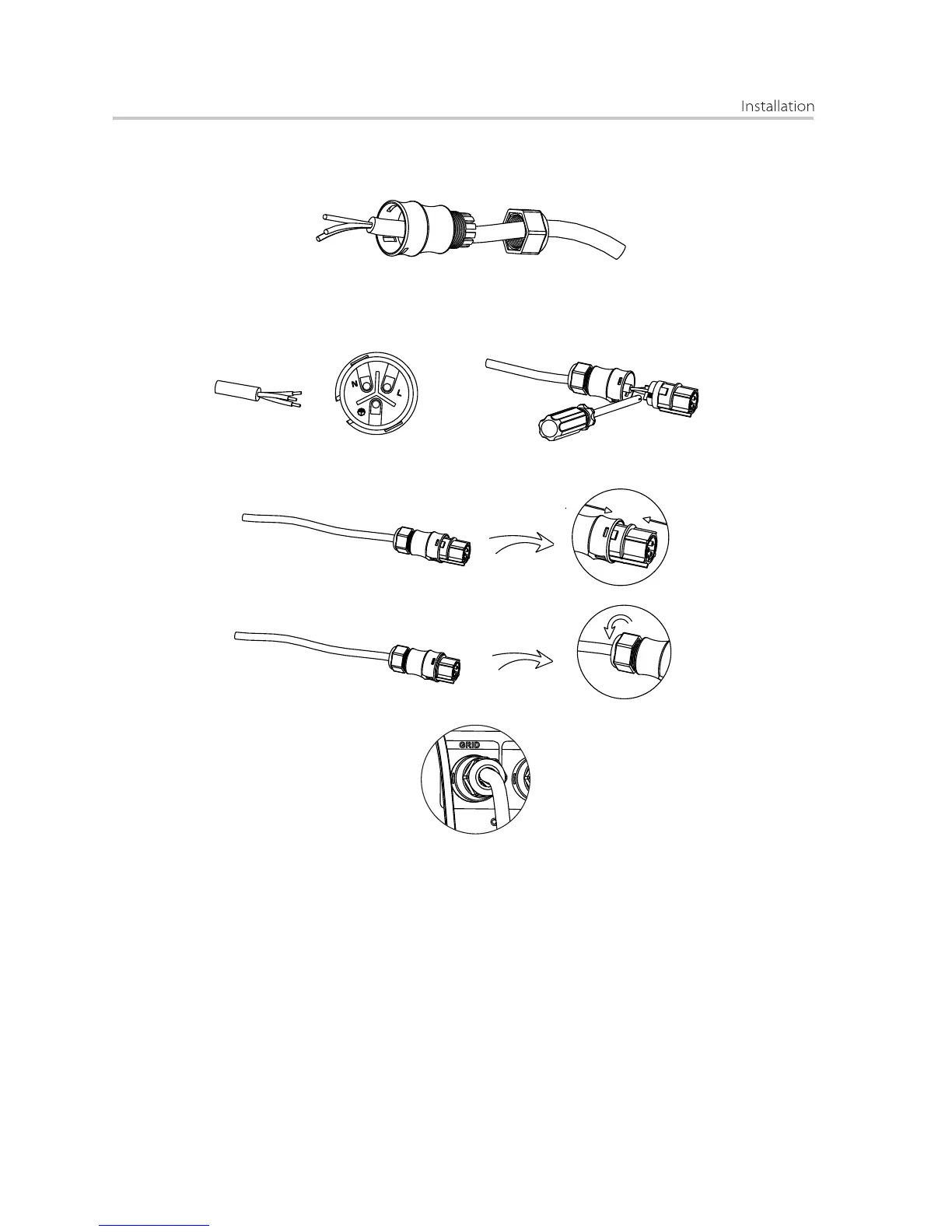

5:Slide the cable nut and then back shell onto the cable.
6. Insert the tripped end of each three wires into the appropriate hole in the
female insert,and then tight each screw(to tight each wire in place).
7. Screw down the threaded sleeve.
8. Screw down thepressurescrew.
9. ConnecttheACplugtotheinverter.
Mains cable (AC line cable ) shall be short circuit protected and thermal overload
protected.
Selection of Fuse and Cables
Always fit the input cable with fuse. Normal gG(US:CC or T) fuses will protect
the input cable in short circuit situation. They will also prevent damage to
adjoining equipment.
Dimension the fuses according to local safety regulations. Appropriate input
voltage and the related current of the solar inverter.
AC output protected by external fuse (gG rated current 20A/250VAC for 3KW
and 3.7KW; 25A/250VAC for 5KW) provide in all live connections to the AC supply.
The rated short circuit breaking capacity of the above protective device shall
be at least equal to the prospective fault current at the point of installation.
See section technical data of this manual for details.
