6.5 Installation Steps

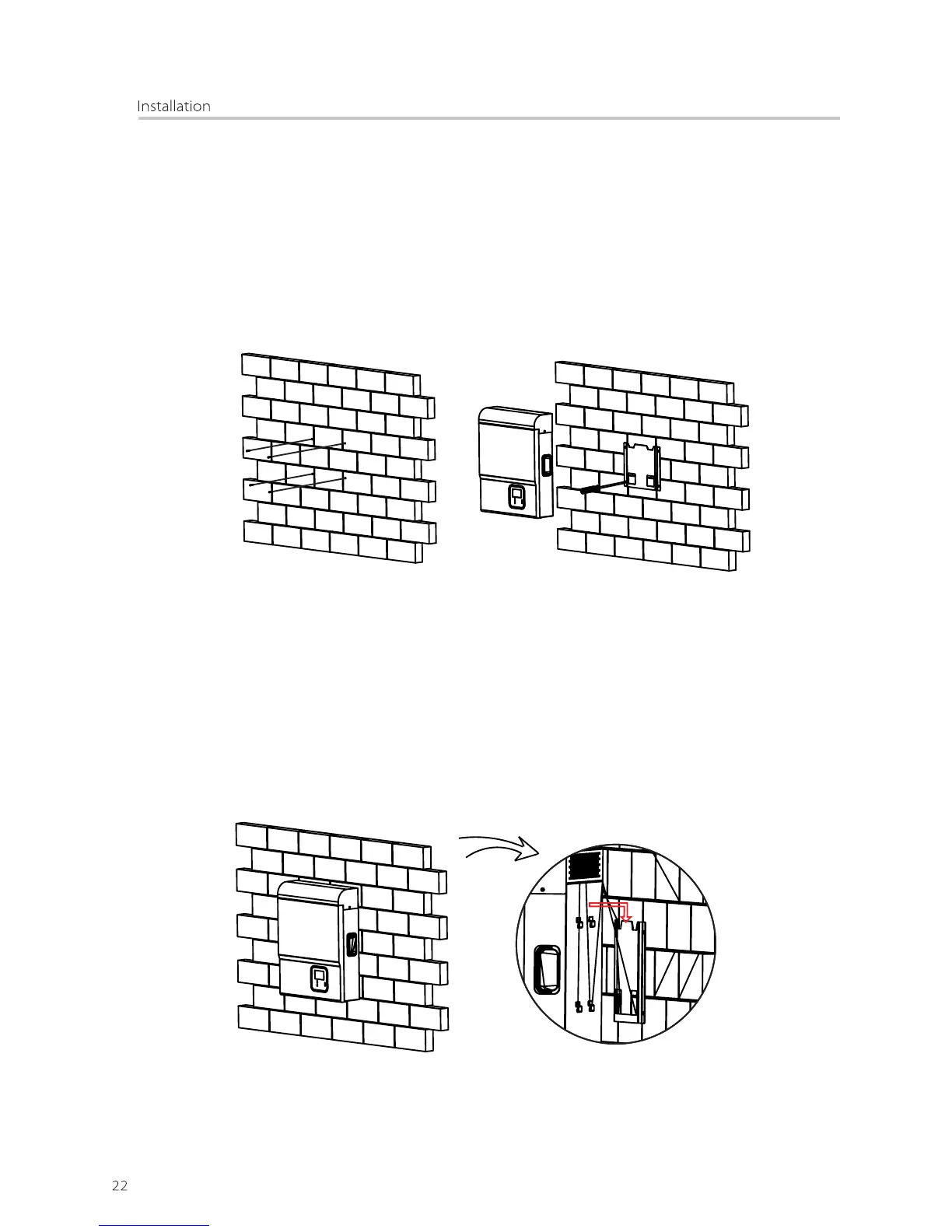

Step1: Screw The Wall Bracket on The Wall
• Use the wall bracket as a template to mark the position of the 4 holes.
• Drill holes with ф6 driller carefully, make sure the holes are deep enough
(at least 50mm) for install and tight the expansion tubes.
• Install the expansion tubes in the holes, and tight them . Install the wall bracket
using the expansion screws in the screw package.
Step2: Hang the X-hybrid Inverter On the Wall Bracket.
• Transportion of the inverter needs at least 2 people, each one needs to
use the handles at the sides of the inverter.
• Hang the inverter over the bracket, move the inverter close to it, slightly
laydown the inverter make sure the 4 mounting bars on the back of the
inverter is fixed well with the 4 grooves on the bracket.
Note:The installation of SK-BMU is the same as above.
