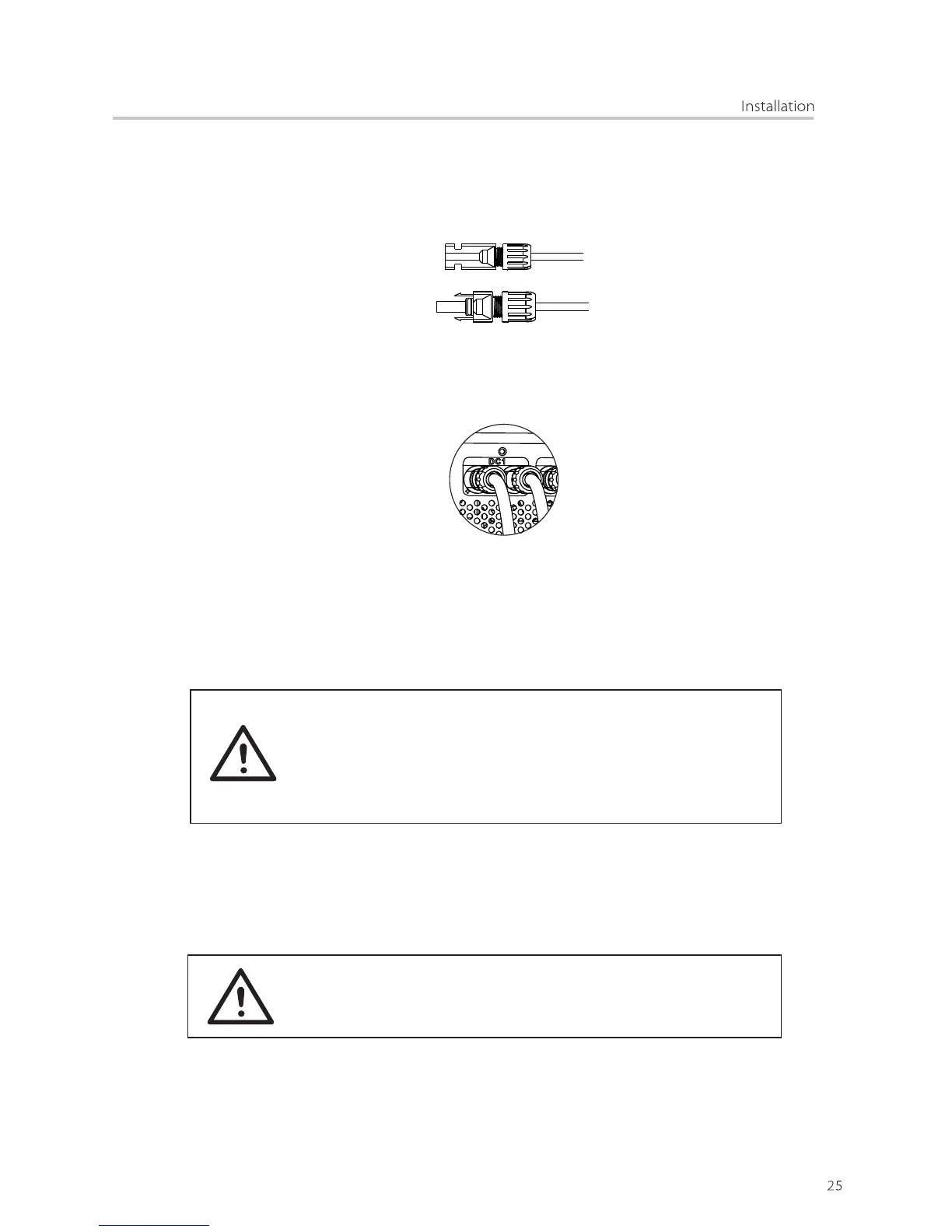

8 Tight the DC connector..
a. Slide the cable nut towards the back shell.
b. Rotate the cable nut to secure the cable.
9 After securing the cable tightly, align the 2 half connectors and mate them .
together by hand until a “click” is felt or heard.
10. Separate the DC connector
a. Use the specified wrench tool.
b. When separate the DC+ connector, push the tool down from up side.
c. When separate the DC- connector, push the tool down from the bottom side.
d. Separate the connectors by hands.
Before connecting, disconnecting the connection between solar
generator and inverter and locked it to the open position during
installation. Place a warning sign“do not turn on maintenance in
progress” on the external disconnect switch when it is shut down,
and make sure that on-off remote controls are inhibited.
WARNING!
Must comply with the connection requirement of your distribution
grid.
WARNING!
Ÿ AC Output Connection
X-hybrid series inverters are designed for single phase grid. Voltage range is
typical 230V according to different countries. The typical frequency is 50Hz/60Hz.
Other technical requests should comply with the requirements of local public
grid. For the terminal and cable design please follow below requirements.
