SolaX Power X1-EVC Series User Manual

3
2 Product Overview
2.1 System Description
The X1/X3-EVC series are AC EV charger and intended only for charging electric vehicles.
It should be installed in a fixed location and connected to the AC supply. The EV-Charger
can communicate with other devices or systems (inverter, meter, CT, third-party charger
management platform, etc.) to realize intelligent control of charging process. For details,
please refer to "6.1 Decide Application Scenario".
2.2 Supported Power Grid
There are different ways of wiring for different grid systems. Models named without "-P"
support TN-S, models named with "-P" support TN-C-S, shown as below:

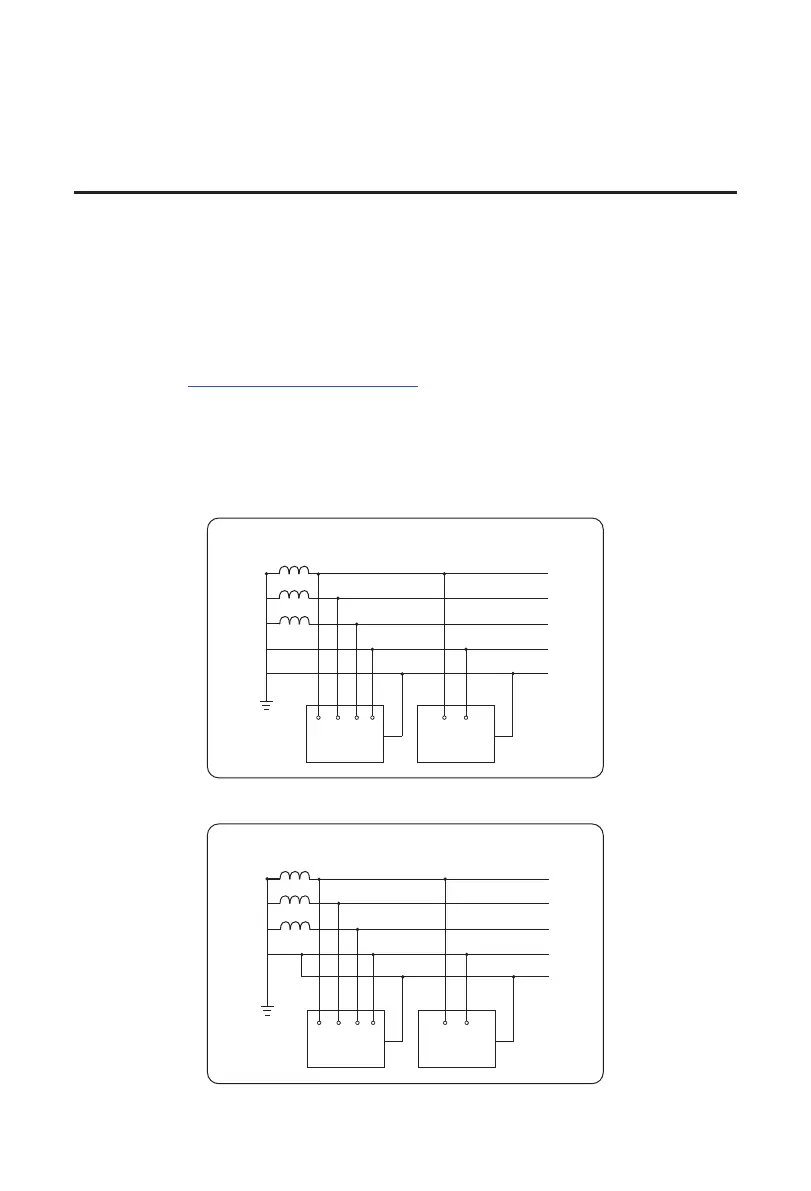

TN-S
N N
N
N
L1
L2
L3
L1 LL2 L3 PE PE
Three-phase
EV-Charger
Single-phase
EV-Charger
PE
PE
Figure 2-1 Supported power grid for models named without "-P"
TN-C-S
N N
N
PEN
L1
L2
L3
L1 LL2 L3 PE PE
Three-phase
EV-Charger
Single-phase
EV-Charger
PE
Figure 2-2 Supported power grid for models named with "-P"
