Preparation before Installation
4.1.2 Installation Carrier Requirement
The mounting location must be suitable for the weight and dimensions of the product and
the support surface for installation must be made of a non-flammable material.
• Solid brick/concrete, or mounting surface with equivalent strength;
• The EV-Charger must be supported or strengthened if the wall strength is not
enough (such as wooden wall, the wall covered by thick layer of decoration).
Fire resistant
10.5 kg
Be suitable for the dimension
of the EV-Charger (249 mm ×
370 mm × 155 mm for Socket
Type, 265 mm × 370 mm ×
155 mm for Plug Type) and
able to withstand the weight
of 10.5 kg
.

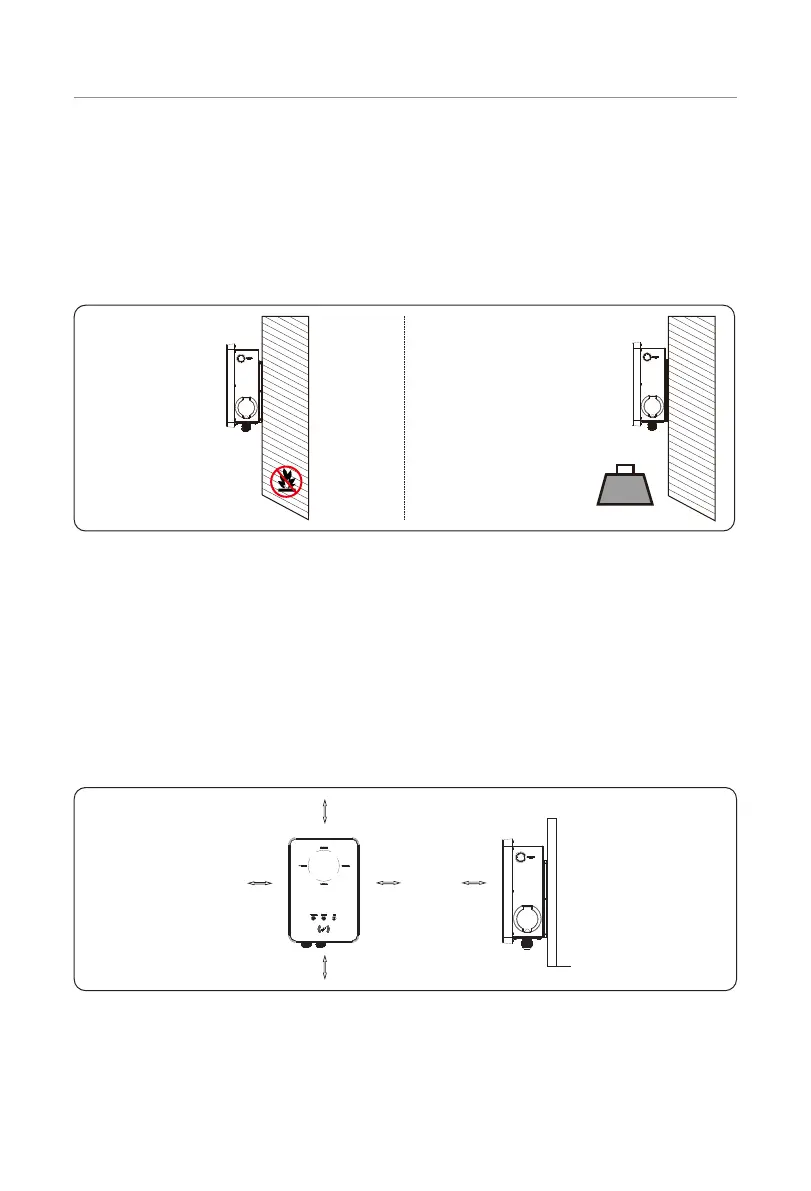

Figure 4-1 Installation carrier requirement
The EV-Charger can also be mounted on EVC pedestal provided by SolaX. For details,
please refer to the quick installation guide of the pedestal.
4.1.3 Clearance Requirement
To guarantee proper heat dissipation and ease of disassembly and operation, the minimum
space around the EV-Charger must meet the standards indicated below.
In areas with high ambient temperatures, increase the clearances and provide adequate
fresh air ventilation if feasible.
>200 mm
>400-700 mm
>1.2-1.5 m
>300 mm >300 mm
Figure 4-2 Clearance requirement
