6 Installation and Wiring
WARNING!
• Only the qualified personnel can perform the mechanical installation following the
local standards and requirements.
• Check the existing power cables or other piping in the wall to prevent electric shock
or other damage.
CAUTION!
• Always be aware of the weight of the EV-Charger. Personal injuries may result if the
EV-Charger is lifted improperly or dropped while being transported or mounted.
• Use insulated tools and wear individual protective tools when installing the
EV-Charger.
NOTICE!
• Install the EV-Charger at a maximum back tilt of 5 degrees and avoid forward/
backward tilted, side tilted, or upside down.

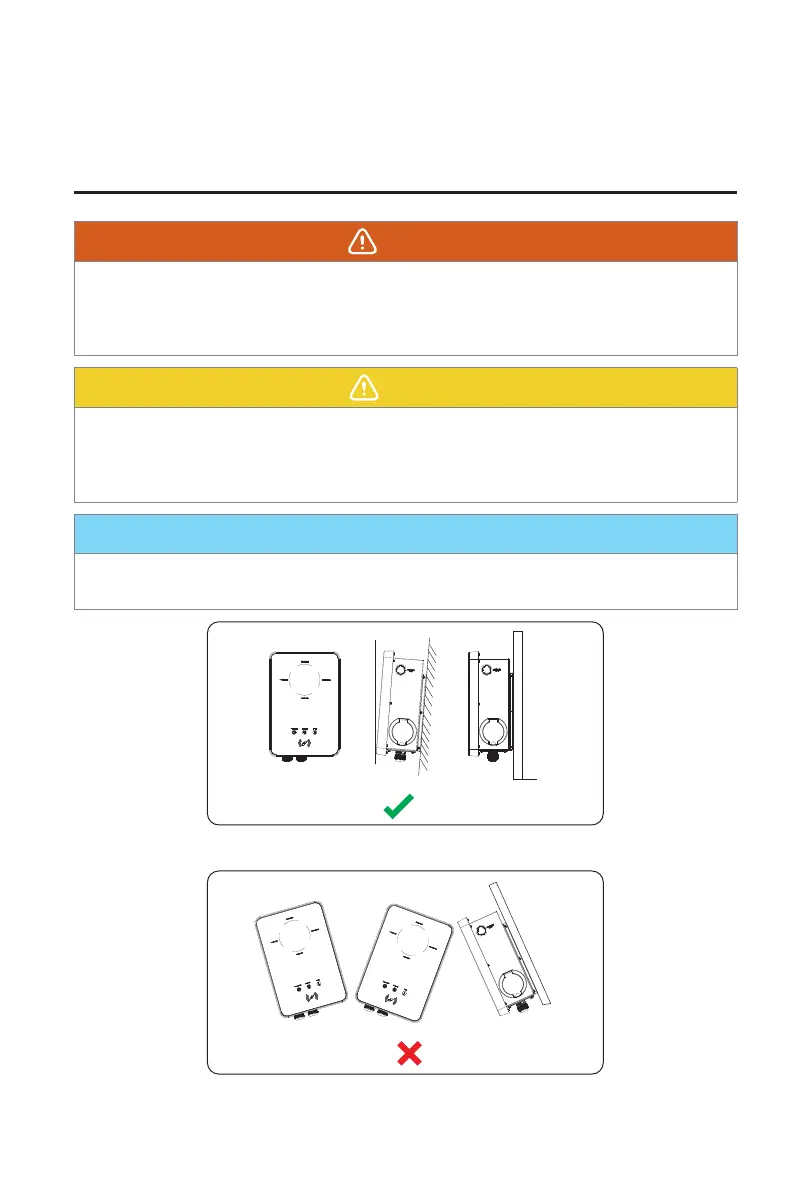

≤5°
Figure 6-1 Correct installtion
Figure 6-2 Incorrect installation
