Screen Display

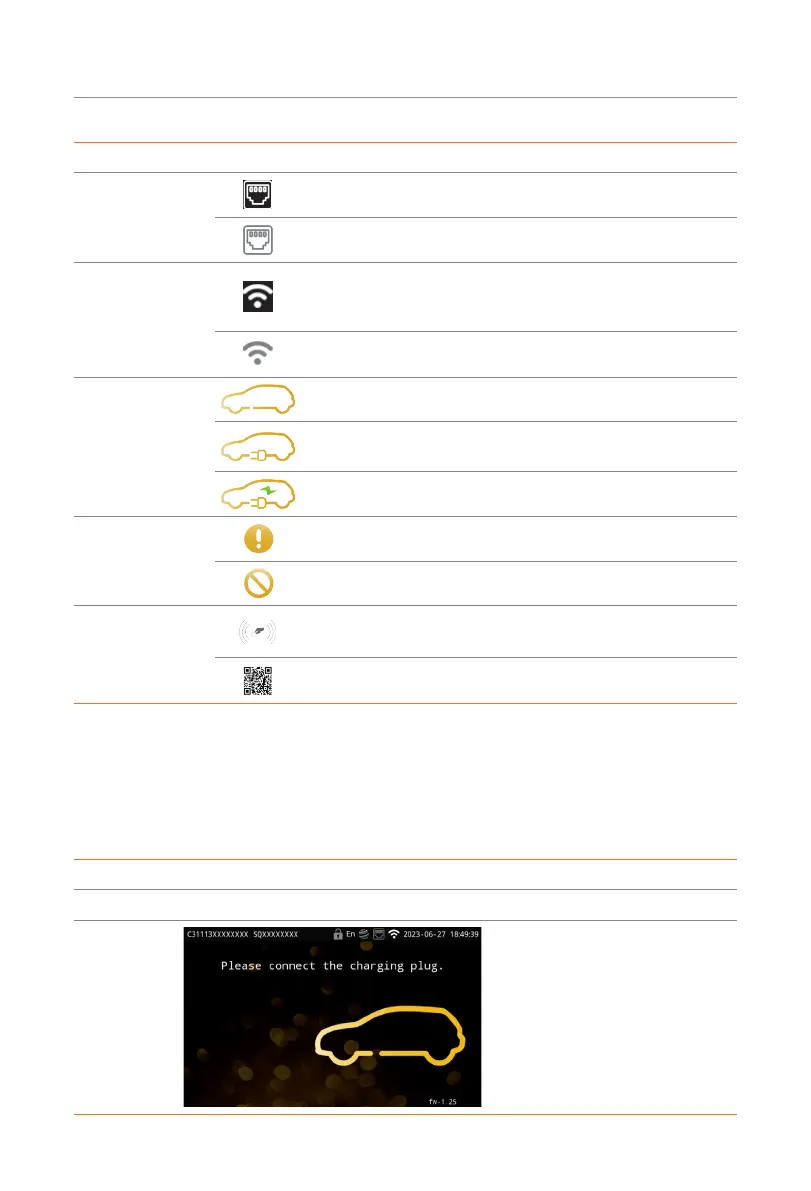

Item Icon Description
LAN status
The EV-Charger has been connected with LAN
The EV-Charger is not connected with LAN
WiFi status
The EV-Charger has been connected with Wi-Fi (The
amounts of the white bars shows the strength of the
signal. The more the white bars, the stronger the signal.)
The EV-Charger is not connected with Wi-Fi
EV connection
status
The charging connector is not connected with EV
The charging connector is connected with EV in but not
charging
Charging
Abnormal status
The EV-Charger is in error state
The EV-Charger is unavailable
Activation area
Available for card-swiping for Home scene
QR code for OCPP scene
10.2 Description of Status Screen
In different states, the screen will display different information or operation tips. Below
table gives examples and brief explanations in different states.
Table 10-3 Descriptions of status screen
Status Screen Picture Description
For Home Scene
Available
The EV-Charger is powered on,
but the charging connector is
not plugged into the EV.
