51
Wiring
NOTICE!
• Properly place the plastic housing into a hydraulic wire crimper.
• DO NOT place the conductor insulation into the connector body.
• DO NOT crush the plastic housing while crimping.
• DO NOT crush or damage the conductor insulation while crimping.

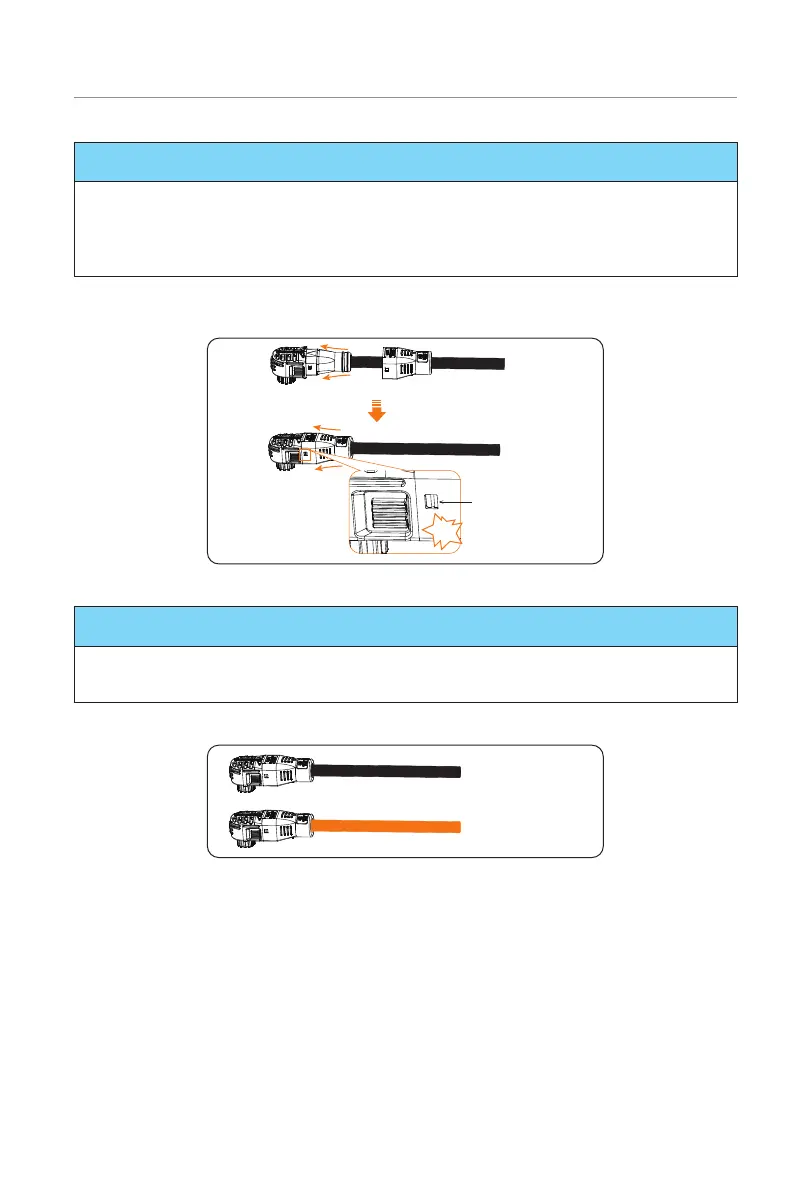

Step 5: Orderly push the cable seal ring and tail cover into the body. The sound of "Click"
will be heard when the tail cover is properly plugged into the body.
Click
Snap-fit joint
Figure 7-14 Assembling connector
NOTICE!
• User should hear the sound of "Click" while pressing the tail cover into the location
position.
Step 6: Make the positive power cable according to the above steps.
Negative power cable
Positive power cable
Figure 7-15 Making positive power cable
After finishing the installation of the female connector onto the power cable, and due to
the special terminal connector on the power cable, please note the following details.
To Next Page
