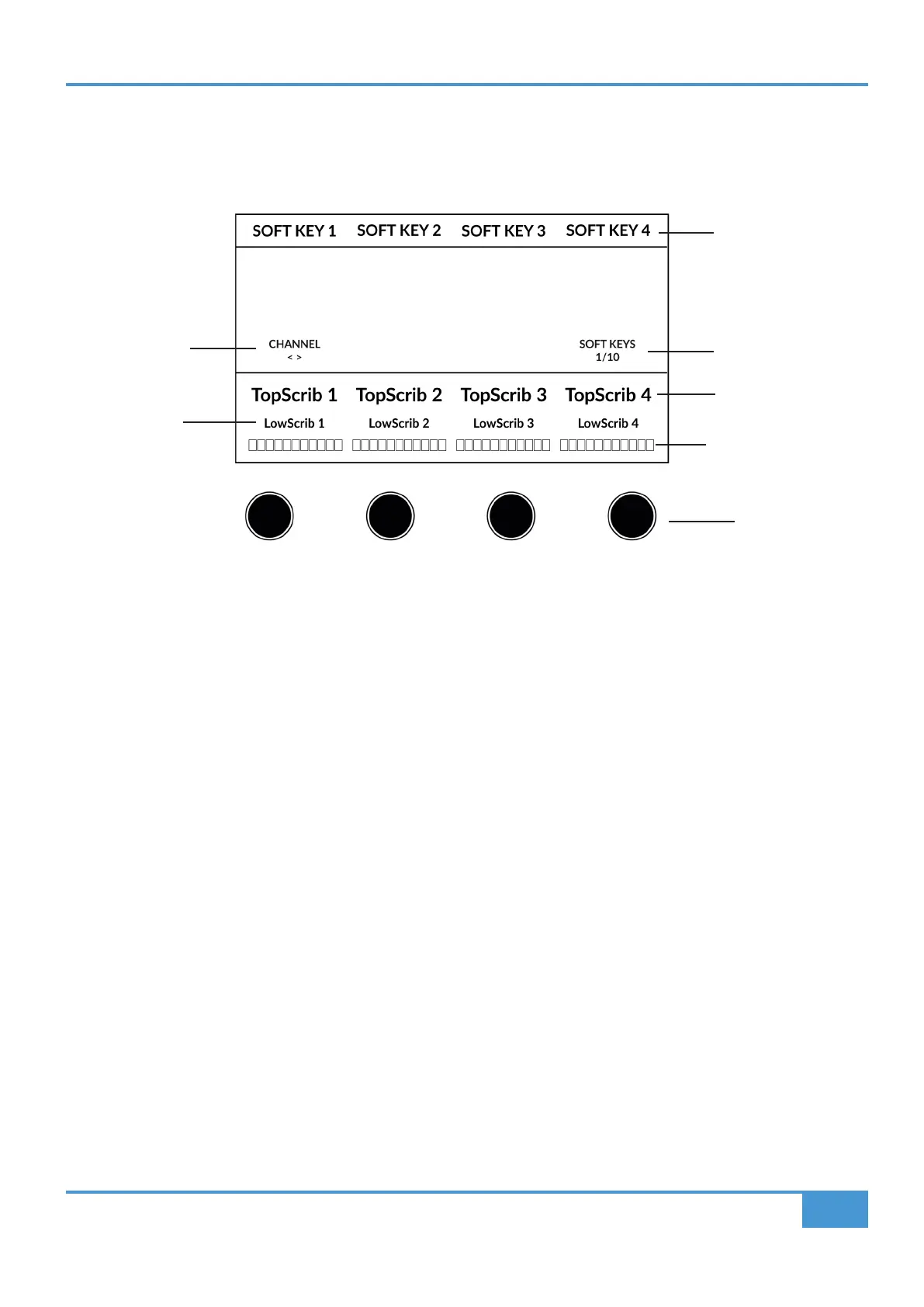

Large LCD Layout
Soft Key Labels - Labels for the functions assigned to the soft keys directly above.
Timecode - Shows the current timecode in Bars/Beats or SMPTE.
Channel Mode - Indicates the current CHANNEL encoder Mode.
Soft Key Page - Displays the current Soft Keys page number
Top Scribble - Displays the track name or V-Pot parameter value when the V-Pot is being turned for
tracks 1-4 or 5-8 of the current controller bank.
Low Scribble - Unused by Pyramix.
V-Pot Readout Bar - Displays the position of the currently assigned V-Pot function.
V-Pots - 4 x V-Pots that control the assigned parameters.
Soft Key Labels
Soft Key Page
Top Scribble Strip
Channel Encoder
Mode
V-Pots
Low
Scribble Strip
V-Pot Readout
Bar
