SSL UF1 User Guide

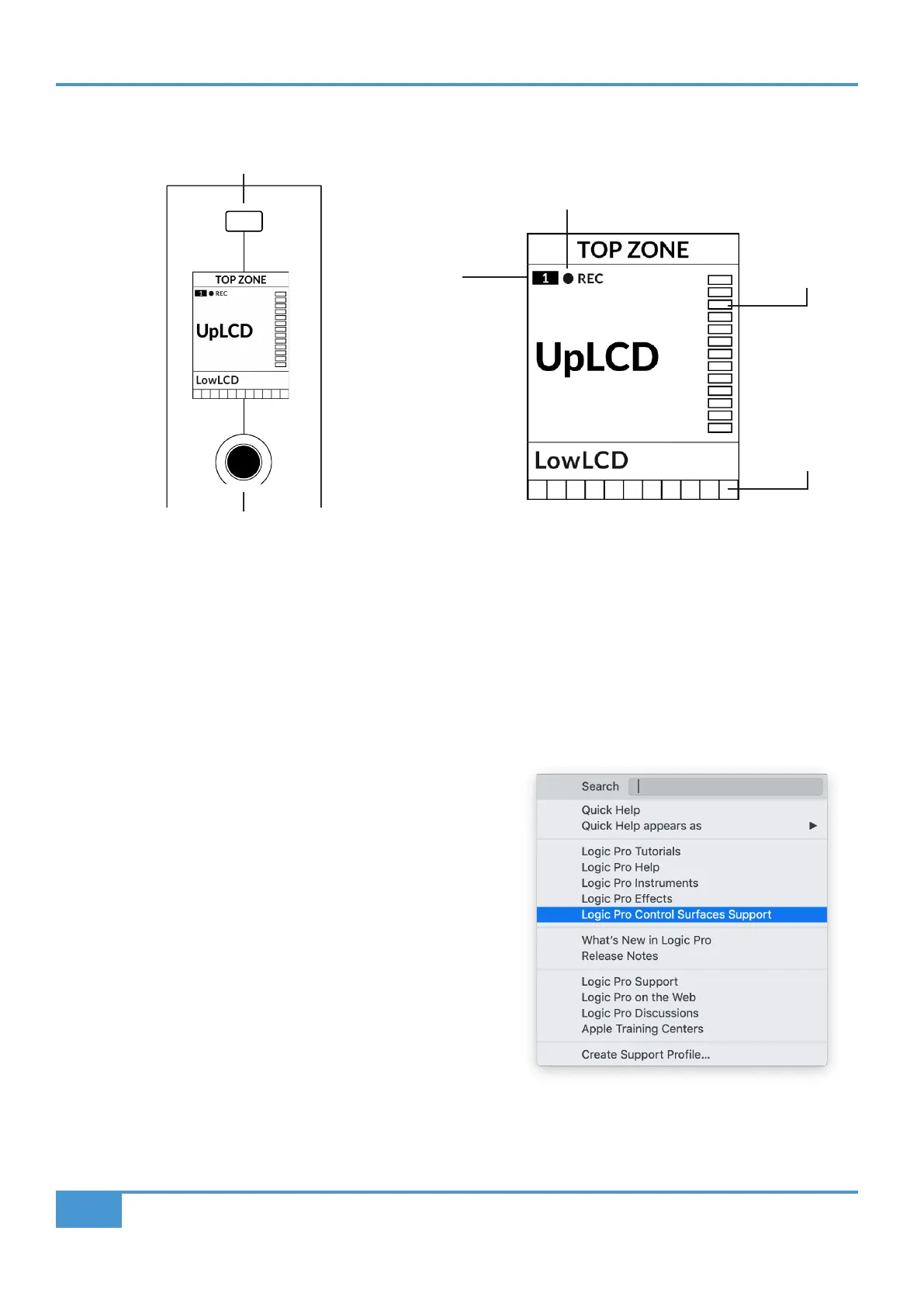

Small LCD Layout
Top Zone - Provides a label for the function assigned to the soft key directly above.
Selected Track / Track Record-Enabled (REC) - In Logic, the REC text follows the currently selected track. If the track is record-
enabled, the REC text pulses.
Fader Sel Indication - Displays the fader number within the current controller bank UF1 is focused on.
UpLCD - Displays the 6-character track name.
LowLCD - Displays a label or value readout for the parameter currently assigned to the V-Pot.
DAW Track Metering - 12-segment track metering + clip
V-Pot Readout Bar - Displays the position of the currently assigned V-Pot (encoder) function.
Before You Start...
The information in this Logic Tutorial sets out the key features of using UF1
with Logic.
For complete, in-depth coverage of all the functions and features you can
control in Logic using UF1, please refer to the Logic Help Menu > Logic
Pro Control Surface Support document. Open the document and go to
the Mackie Control section.
V-Pot
Readout Bar
DAW Track
Metering
Fader Sel
Indication
Selected Track/
Track Record-Enabled
Soft Key
V-Pot Encoders
The Mackie Control section of the Logic Pro
Control Surfaces Support contains a full Mackie
Control Protocol guide.
Enlarged view of LCD screen
