Large LCD Layout - Meter Mode
This mode is for controlling your SSL Meter plug-ins. Access this mode by toggling the MODE key to the yellow state.
Overview

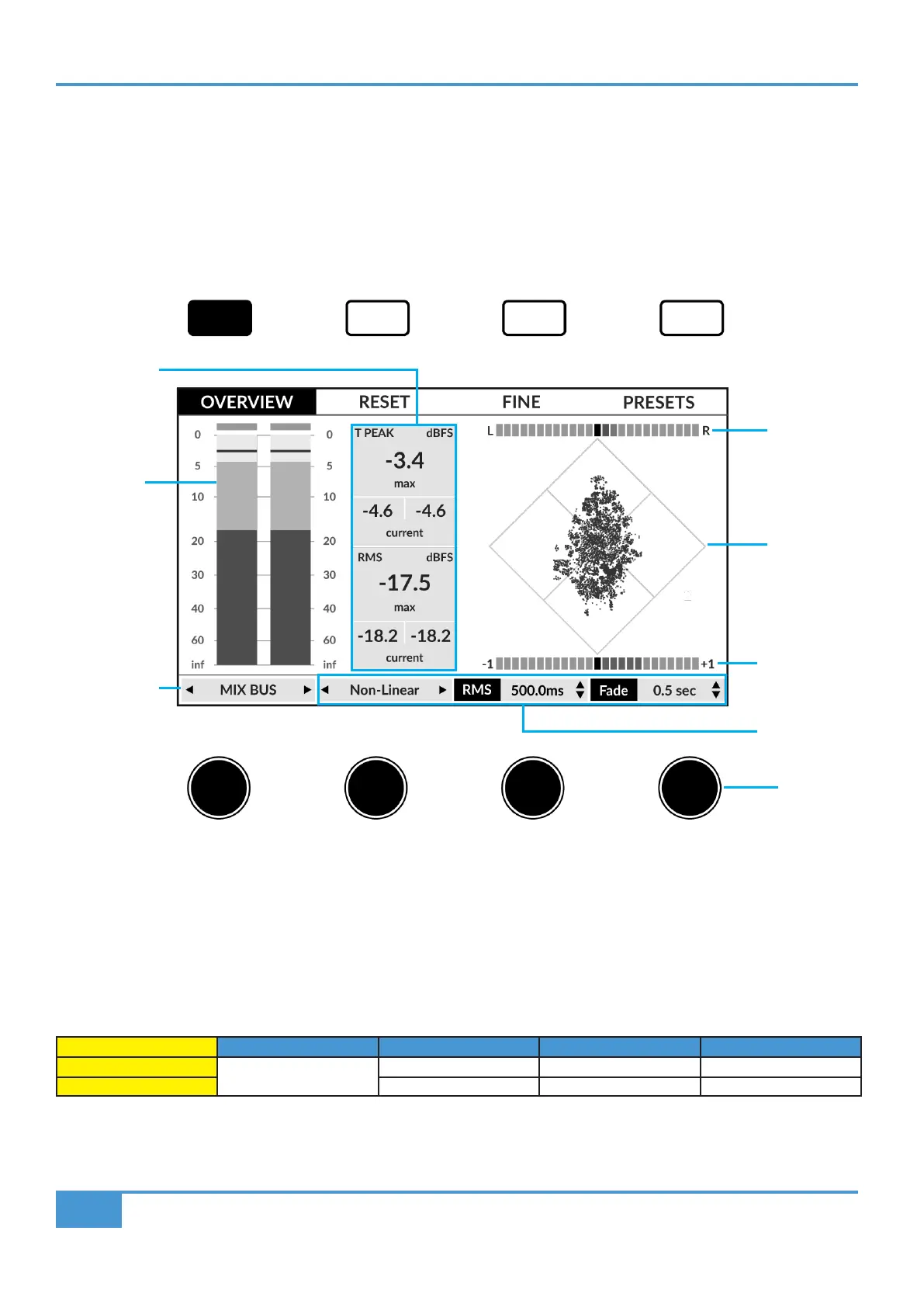

The Overview screen displays all your key Peak & RMS metering, phase and stereo balance information.
Meter Screen Selector - Press the key to toggle through the 3 different meter screens: Overview, Analogue and RTA.
Reset - Resets all metering, including clip indicators and max values.
Fine Encoder Mode - Puts the encoders into fine resolution mode for precise adjustments.
Presets Menu - Opens a menu where you can load your Meter plug-in presets from by scrolling with the 4th encoder and pushing
to confirm the load.
Page Meter Plug-in Selector Parameter Control 1 Parameter Control 2 Parameter Control 3
1
Scroll to select the Meter
plug-in instance
Digital Meter Type RMS Integration Time Lissajous Fade Time
2 Peak Hold Time True Peak Mode On/Off -
V-Pots
Phase
Correlation
Meter
Lissajous
Phase
Scope
L-R
Balance
Bar
Presets
Menu
Fine
Encoder Mode
Meter Screen
Selector
Meter Plug-in
Selector
Reset
Parameter
Control 1
Parameter
Control 2
Parameter
Control 3
Meter Plug-in
Parameters
Digital
Meter
Bargraphs
Selected
Meter Plug-in
Instance
Text
Readouts
Max and
Current Values
