LUNA Tutorial
97
SSL UF1 User Guide
Small LCD Layout

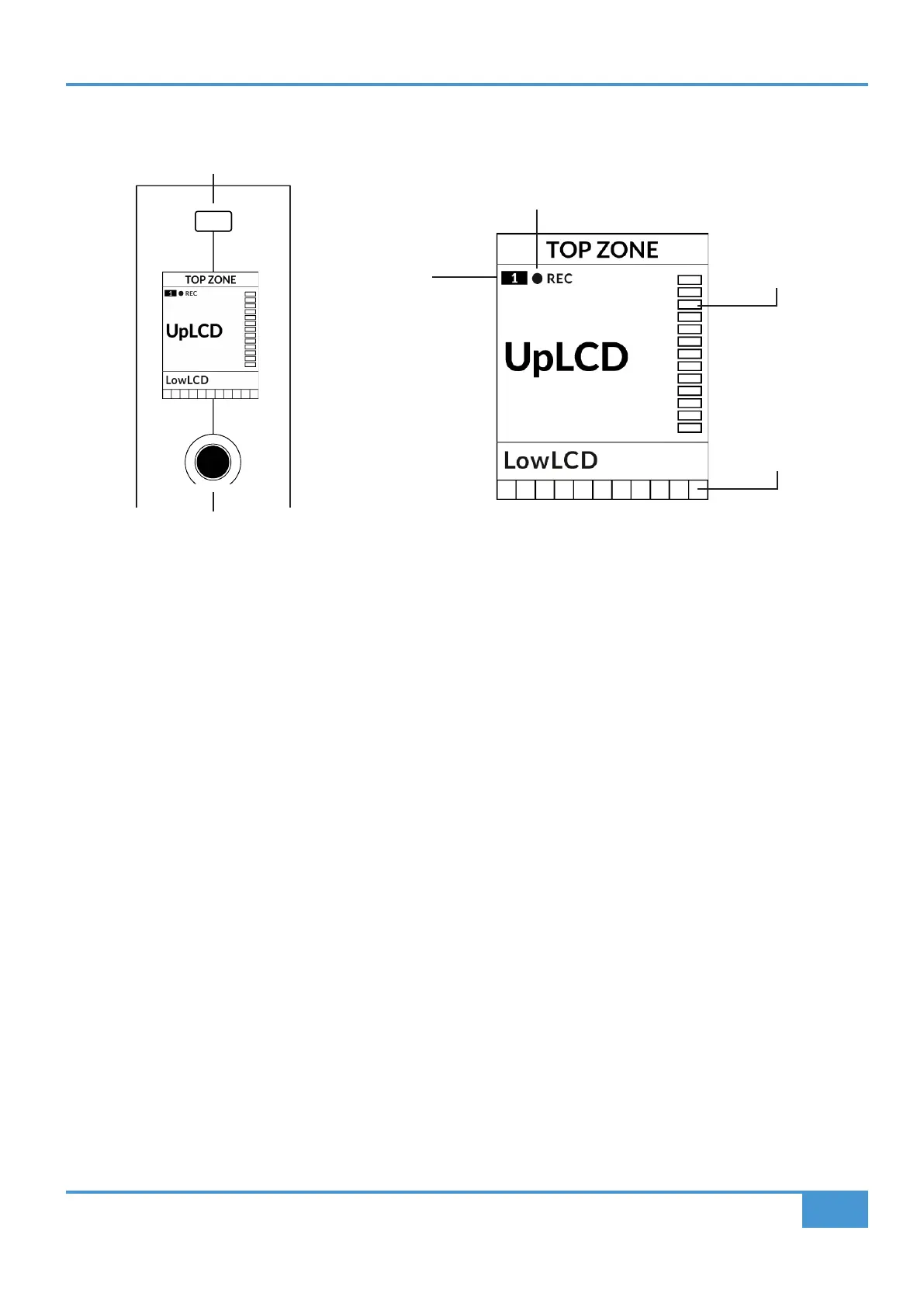

Top Zone - Provides a label for the function assigned to the Soft Key button directly above.
Track Record-Enabled (REC) - In LUNA, the REC text appears when a track is record-enabled.
Fader Sel Indication - Displays the fader number within the current controller bank UF1 is focused on.
UpLCD - Displays the 7-character track name or parameter being controlled by the V-Pot, depending on the current mode.
LowLCD - Displays a value readout for the parameter currently assigned to the V-Pot, or, the fader gain if the fader is
moved.
DAW Track Metering - 12-segment track metering + clip
V-Pot readout bar - Displays the position of the currently assigned V-Pot (encoder) function.
V-Pot
Readout Bar
DAW Track
Metering
Fader Sel
Indication
Track Record-Enabled
Soft Key
V-Pot Encoder Enlarged view of LCD screen
