Connector Panel

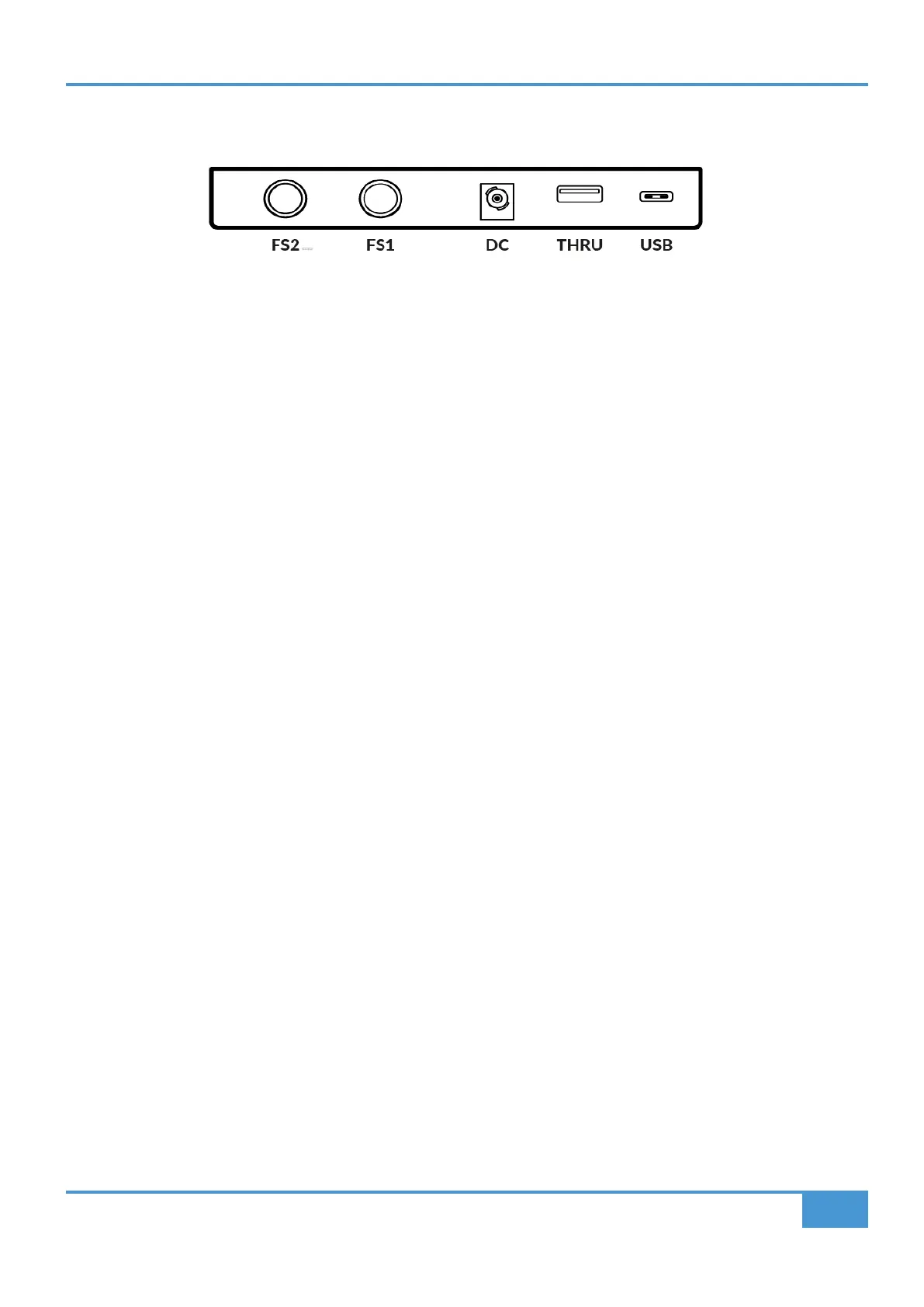

The recessed section hosts UF1's connectors.
USB - 'C' Type Connector
Connect the included USB cable from your computer to the USB port on UF1. This handles all of the communication between your
DAW and UF1, via the SSL 360° software application.
THRU - 'A' Type Connector
The THRU connector is an in-built USB hub and it can be used to chain a UF1 and UF8/UC1 unit together, without needing to plug
each unit into your computer individually. It can also be used to plug in USB dongles.
DC Connector
Use the included AC/DC Power Supply to provide power for your UF1.
FS1 & FS2 - 1/4" Jack Connectors
These allow for the connection of foot-switches, which can be used to trigger DAW commands or user-assigned keyboard shortcut
sequences.
UF1 has been tested with popular foot-switches such as the BOSS FS-6 (other brands are available), whose foot-switch behaviour
(or polarity as it is often referred to), is a 'normally closed' switch. In some cases, these foot-switches offer the ability to change
the polarity.
Please use a foot-switch designed for 'normally closed' operation and also, to ensure full compatibility use a momentary action
foot-switch, or choose a foot-switch that can be set to momentary. This will ensure correct operation with assigned DAW commands.
