SOLIS S6 Series User Manual

User Manual
3. Installation

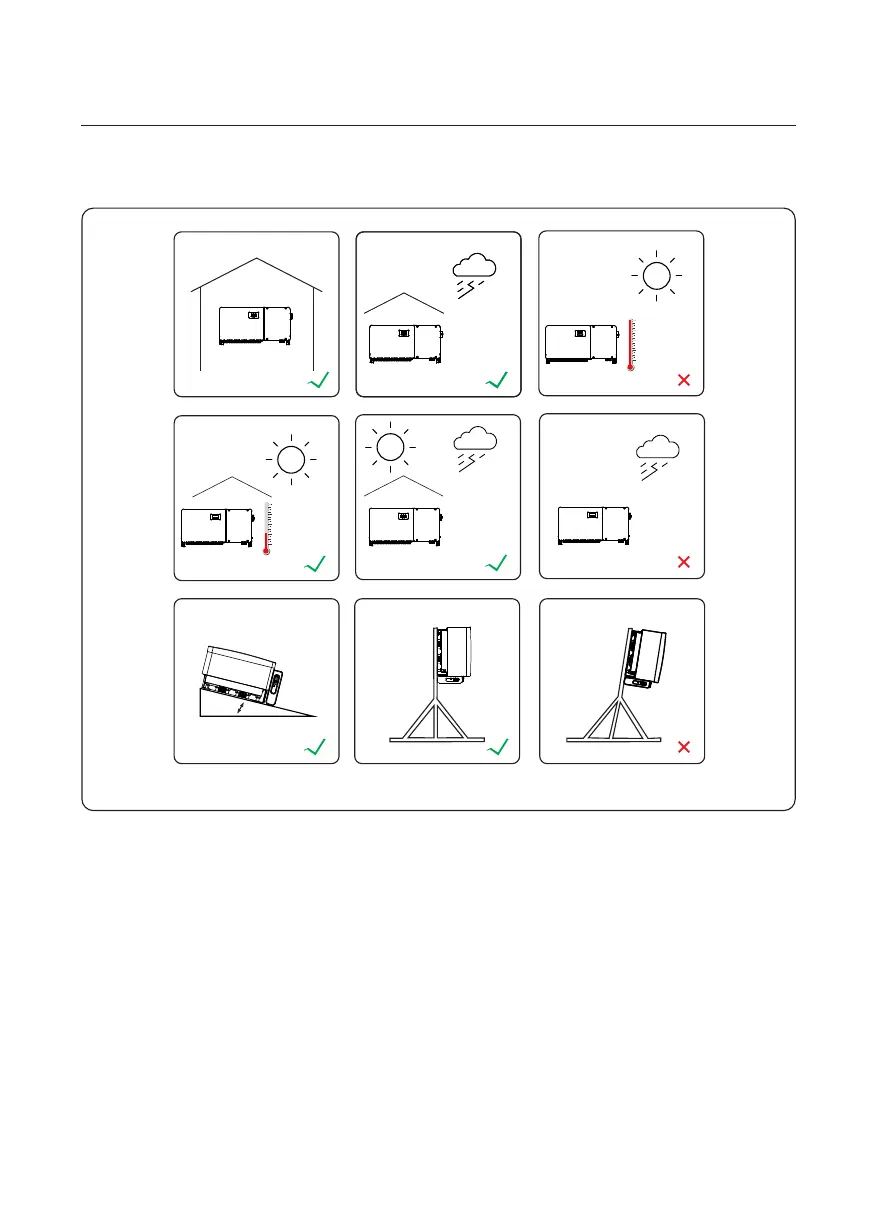

3.1.1.1 Examples of correct and incorrect installations
3.1.2 Other environmental considerations
3.1.2.1 Consult technical data
Consult the specifications section (section 9) for additional environmental conditions
(protection rating, temperature, humidity, altitude, etc.).
3.1.2.3 Vertical wall installation
For vertical installation, this model of Solis inverter should be mounted vertically
(90 degrees or backwards in less than or equal to 15 degrees).
Figure 3.1 Recommended Installation locations
≥15°
3.1.2.2 Horizontal installation
For horizontal installation, this model of Solis inverter should be mounted horizontally
(upwards in more than 15 degrees off the horizontal plane).
9
Indoor
Direct Sun
Shade Cover
Shade Cover
Direct Rain
Shade Cover
Rating
NEMA 4X

SOLIS S6 Series Specifications

General

Number of MPPTs	2
THDi	<3%
DC Switch	Yes
Max. AC Output Power	6000W
Rated AC Output Power	6000W
Max. AC Apparent Power	6000VA
Rated Grid Voltage	230V
Grid Voltage Range	180V-280V
Rated Grid Frequency	50Hz/60Hz
Grid Frequency Range	45-55Hz / 55-65Hz
Protection	DC Reverse-Polarity Protection, AC Short-Circuit Protection
Operating Temperature Range	-25°C to 60°C
Cooling	Natural Cooling
Communication	WiFi/GPRS
