SOLIS S6 Series User Manual

1. Introduction
User Manual
1.5 Inverter Circuit Diagram
4
Technician Screwdriver
Torqx T20 Screwdriver
Wire Strippers
12AWG to 6AWG
Wire Strippers
20AWG to 10AWG
Drill and Impact Driver
Multimeter (AC/DC amps)
Channel Locks
LUG Crimping Tool
Torque Screwdriver MC4 Crimping Tool
1.6 Tools Required for Installation

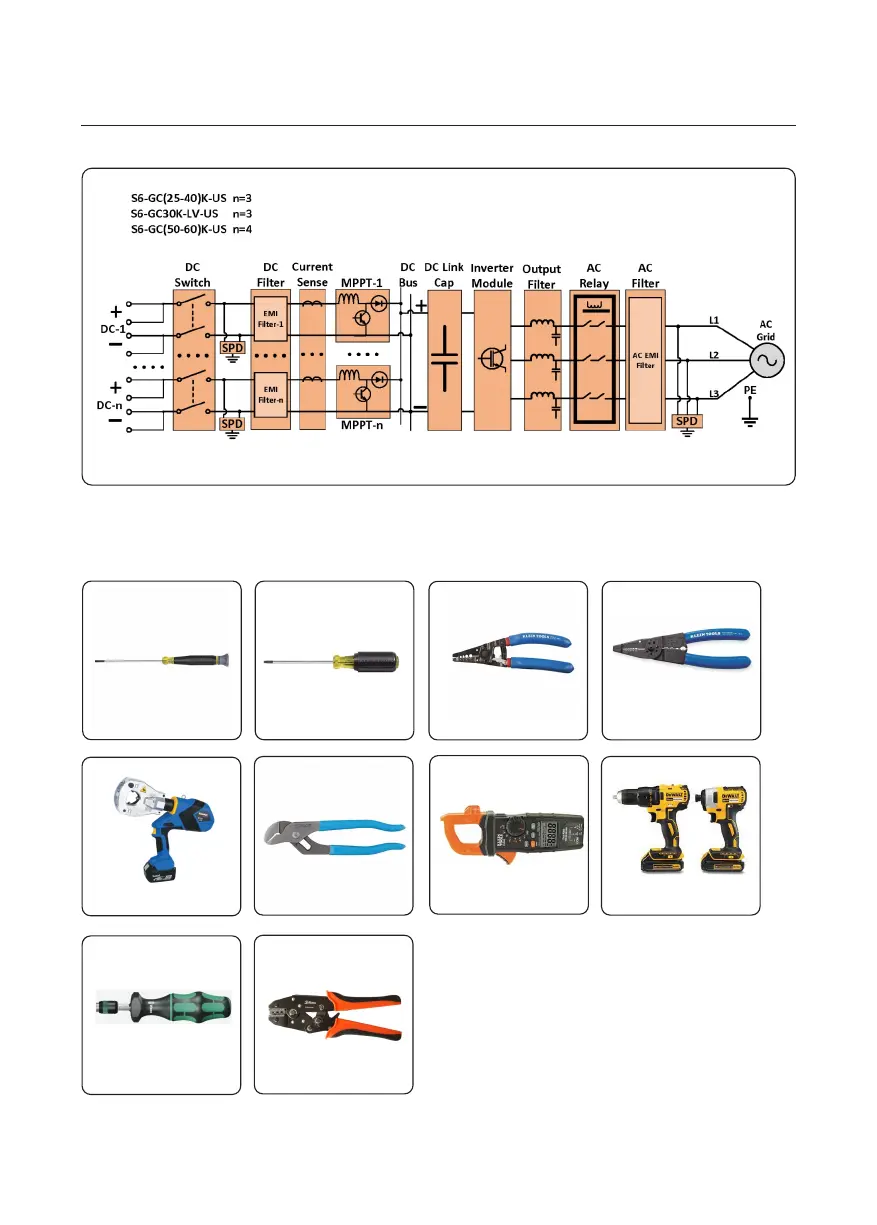

Figure 1.5 Inverter Circuit Diagram

SOLIS S6 Series Specifications

General

Number of MPPTs	2
THDi	<3%
DC Switch	Yes
Max. AC Output Power	6000W
Rated AC Output Power	6000W
Max. AC Apparent Power	6000VA
Rated Grid Voltage	230V
Grid Voltage Range	180V-280V
Rated Grid Frequency	50Hz/60Hz
Grid Frequency Range	45-55Hz / 55-65Hz
Protection	DC Reverse-Polarity Protection, AC Short-Circuit Protection
Operating Temperature Range	-25°C to 60°C
Cooling	Natural Cooling
Communication	WiFi/GPRS
