1 2 3 4 5 6 7 8 9 10 11 12
The inverter package will include a 12-Pin connector.
The Pin definition is shown below. Facing the connector, Pin 1 is on the left of the first row.
The rest polarity is showing in below diagram.
PIN Definition Description
1 RS485 A IN
2 RS485 B IN
3 RS485 A OUT
4 RS485 B OUT
5 RS485 A IN
6 RS485 B IN
7 RS485 A OUT
8 RS485 B OUT
9 RS485 A
10 RS485 B
11 / Reserved A
12 / Reserved

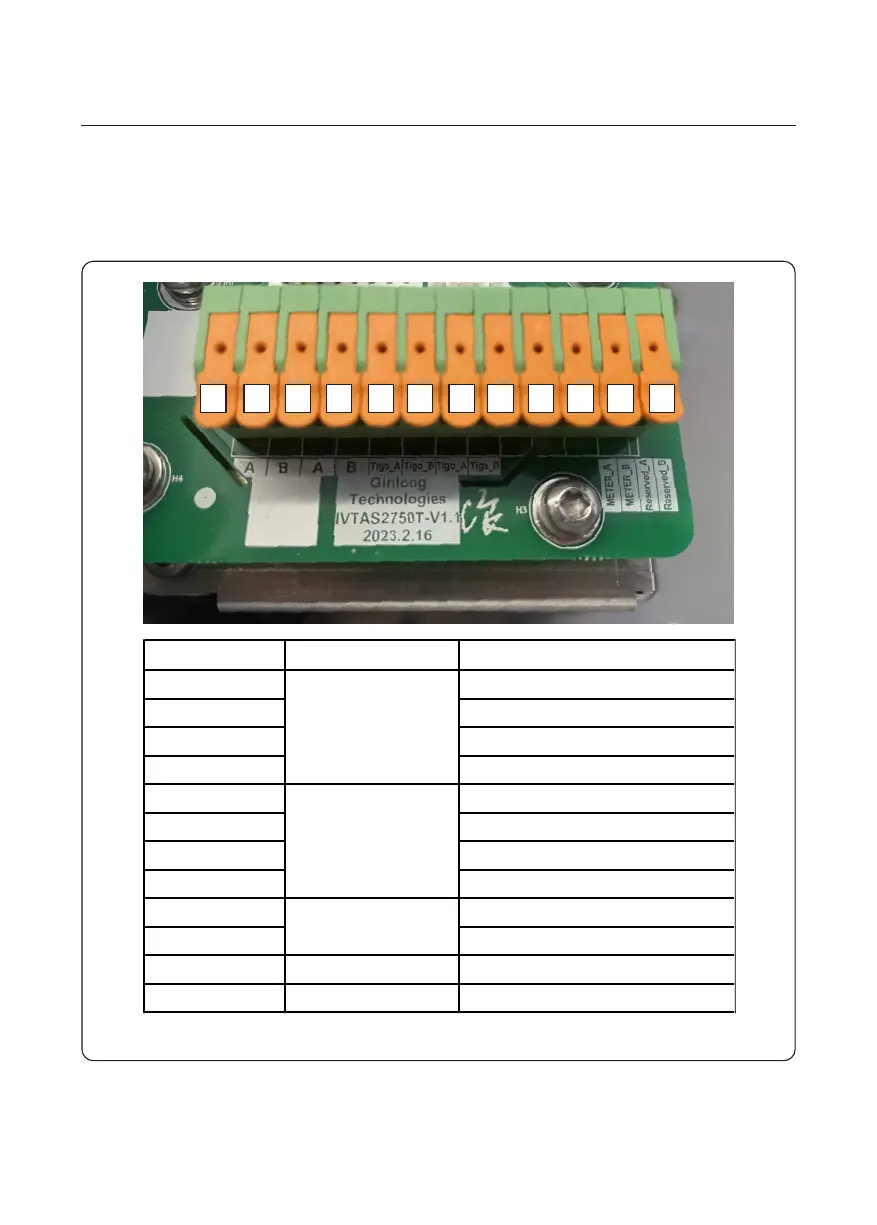

Figure 4.1 12-pin connector
