6.7.16 I/V Curve
This function is used to scan the I/V characteristic curves of each PV strings.

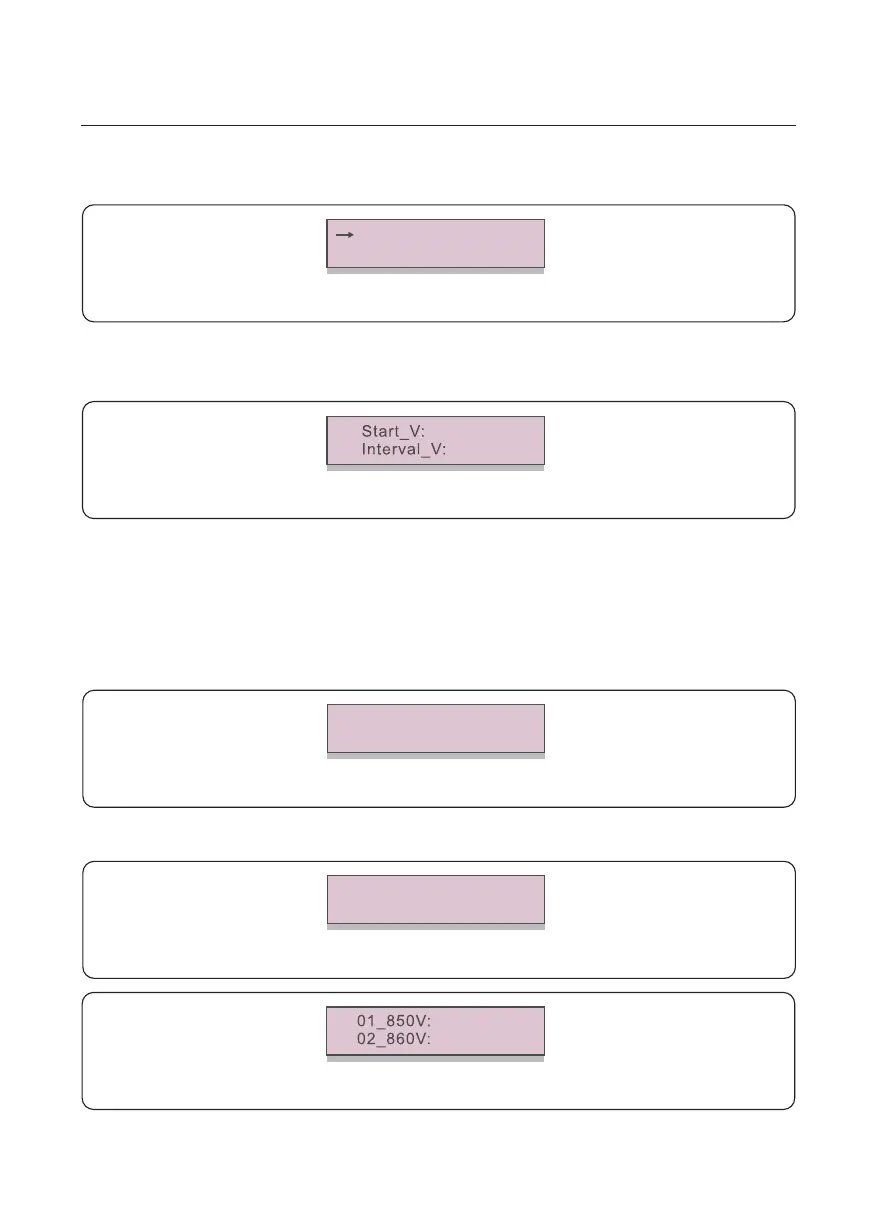

Figure 6.47 I/V Curve
Set I/V Curve
I/V Curve Scan
6.7.16.1 Set I/V Curve
This setting can set the scanning voltage start point and the voltage interval.
Figure 6.48 Set I/V Curve
850V
010V
Start_V: The start voltage of the I/V scan. (Adjustable from 300V-1000V)
Interval_V: The scanning voltage interval.(Adjustable from 1-100V)
In total, 60 data points can be scanned.
6.7.16.2 I/V Curve Scan
Press “ENT” to start the I/V curve scan.
Figure 6.49 I/V Curve Scan (1)
Scanning...01
After it is completed, the screen will display “Scan OK” and then enter the following section.
Figure 6.50 I/V Curve Scan (2)
Select String No.: 01
Figure 6.51 I/V Curve Scan (3)
9.56A
9.44A
6. Normal operation
60

SOLIS S6 Series Specifications

General

Number of MPPTs	2
THDi	<3%
DC Switch	Yes
Max. AC Output Power	6000W
Rated AC Output Power	6000W
Max. AC Apparent Power	6000VA
Rated Grid Voltage	230V
Grid Voltage Range	180V-280V
Rated Grid Frequency	50Hz/60Hz
Grid Frequency Range	45-55Hz / 55-65Hz
Protection	DC Reverse-Polarity Protection, AC Short-Circuit Protection
Operating Temperature Range	-25°C to 60°C
Cooling	Natural Cooling
Communication	WiFi/GPRS
