SOLIS S6 Series User Manual

User Manual
This function is for maintenance personnel only, wrong operation
will prevent the inverter from reaching maximum power.
2. Volt-Watt (Not Required)
Description: Inverter will change the active output power based on voltage change.
Note: This Setting is NOT required by UL1741SA Standards.
3. Volt-Var (Default)
Description: Inverter will change the reactive output power based on voltage change.
Q1,cap
Q2=Q3=0
Q4,ind
V1 V2 Vnom V3 V4

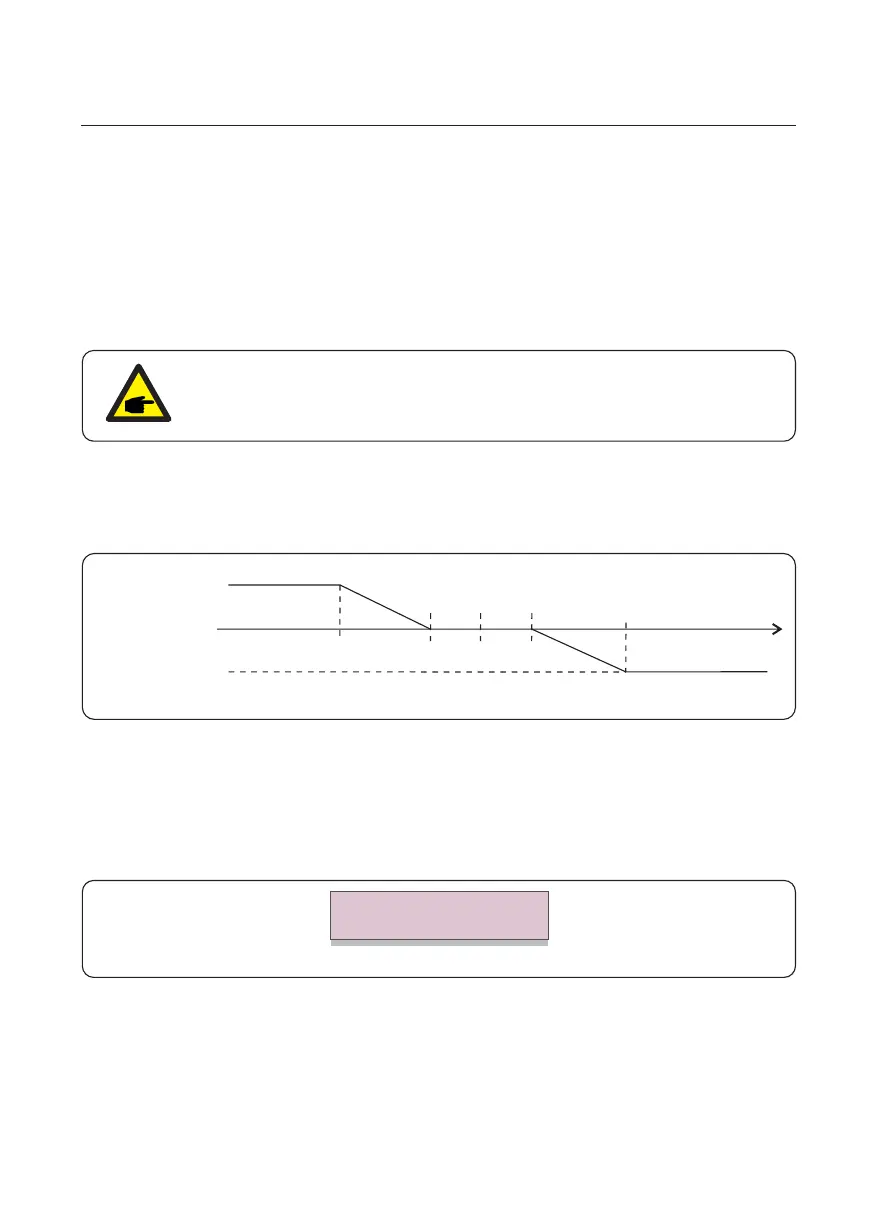

Figure 6.21 Volt-VAR curve for Q(V)
Default Settings for UL1741SA:
Q1: (0-60%) Default +44% Q4: (-60%-0%) Default -44%
Rated 480V Grid
V1:(369.6-494.4V) Default 441.6V V2: (441.6-504V) Default 470.4V
V3:(456-518.4V) Default 489.6V V4: (465.6-590.4V) Default 518.4V
Figure 6.22 Volt-VAR
Voltage1: 441.6V
Voltage2: 470.4V
1.NULL
Description: Inverter is not under any working mode.
6. Normal operation
47
NOTE

SOLIS S6 Series Specifications

General

Number of MPPTs	2
THDi	<3%
DC Switch	Yes
Max. AC Output Power	6000W
Rated AC Output Power	6000W
Max. AC Apparent Power	6000VA
Rated Grid Voltage	230V
Grid Voltage Range	180V-280V
Rated Grid Frequency	50Hz/60Hz
Grid Frequency Range	45-55Hz / 55-65Hz
Protection	DC Reverse-Polarity Protection, AC Short-Circuit Protection
Operating Temperature Range	-25°C to 60°C
Cooling	Natural Cooling
Communication	WiFi/GPRS
