3.6.1 Measurements in IT networks
Before performing measurements select the appropriate network type in the main menu (menu
Measurement settings, section ).
NOTE!
After selecting an IT type network, the function of the contact electrode is inactive.

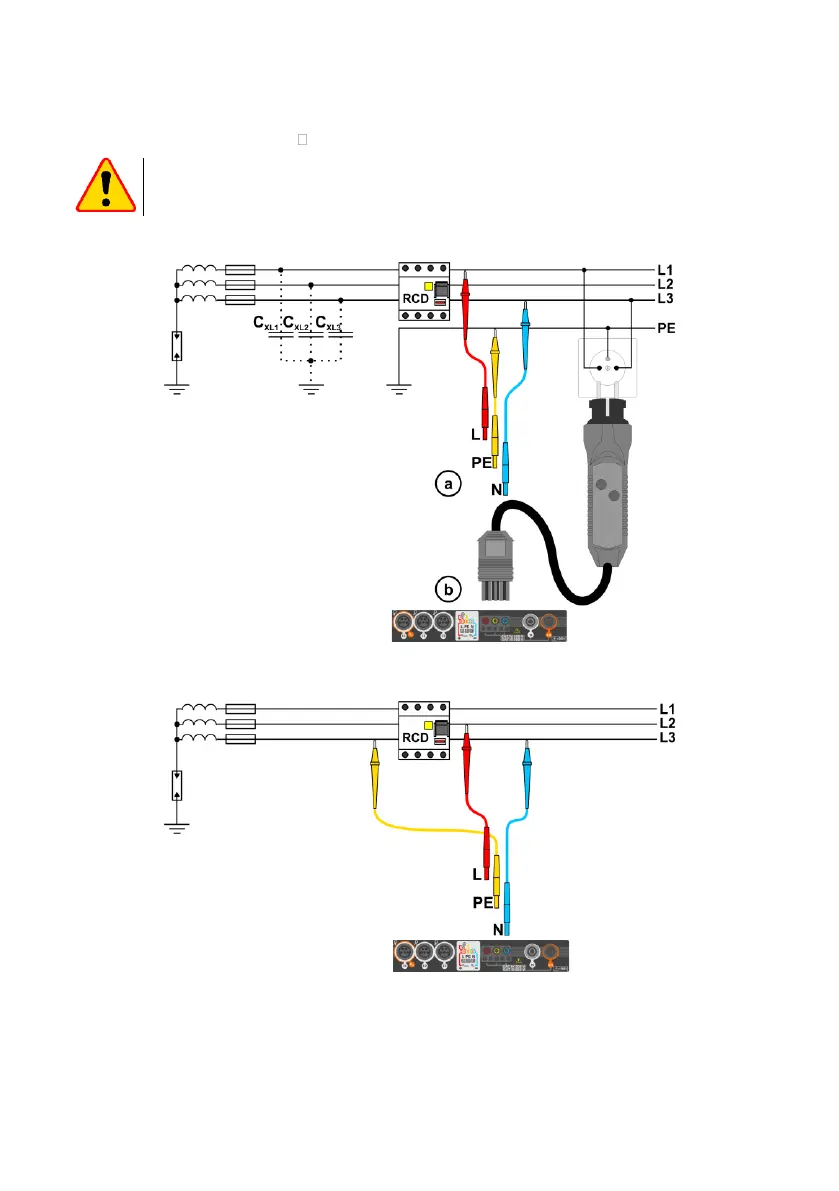

The manner of connecting the device to the installation is shown in Fig. 3.7 and Fig. 3.8.
Fig. 3.7 RCD measurement in the IT network. The circuit is closed by the parasitic
capacitances C
x
Fig. 3.8 RCD testing without the PE conductor
Operating voltage range: 95 V … 270 V.
