MPI-540 ● MPI-540-PV – BRIEF USER MANUAL
After setting the required parameters, you can go directly to the required measurements.
Menu bar functions
entering the measurement screen (live values in a tabular view) with the specified settings
(without saving the configuration).
saving the configuration of inverter efficiency to a file with an option to start the measurement
directly after saving (field Go to Live mode in the pop-up window).
entering the list of saved configurations of inverter efficiency and creating a new configuration.
Configurations are presented similarly to the measuring configurations, they have their own icon
. Double-tap on a selected configuration will open it automatically and entering the screen
with inverter efficiency settings. The button in the menu bar is used for adding new configu-
rations starting of the inrush current (a window is displayed, as shown in Fig. 3.10 with default
settings). Icon is used to edit the chosen configuration.
3.18.2 Live mode
After entering the live mode screen, all the parameters of the measured inverter circuit are shown
in a tabular view.

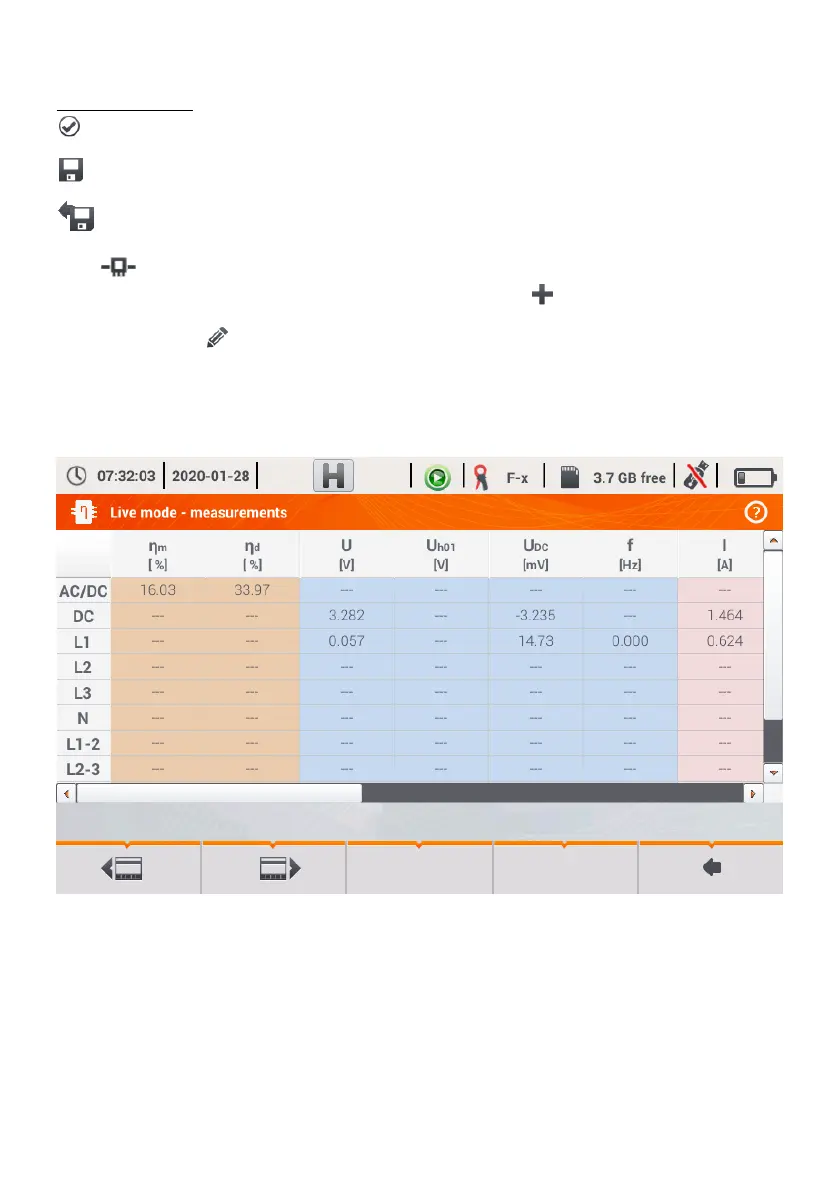

Fig. 3.10. Live mode in tabular view for the inverter efficiency measurement mode
