MPI-540 ● MPI-540-PV – BRIEF USER MANUAL
33

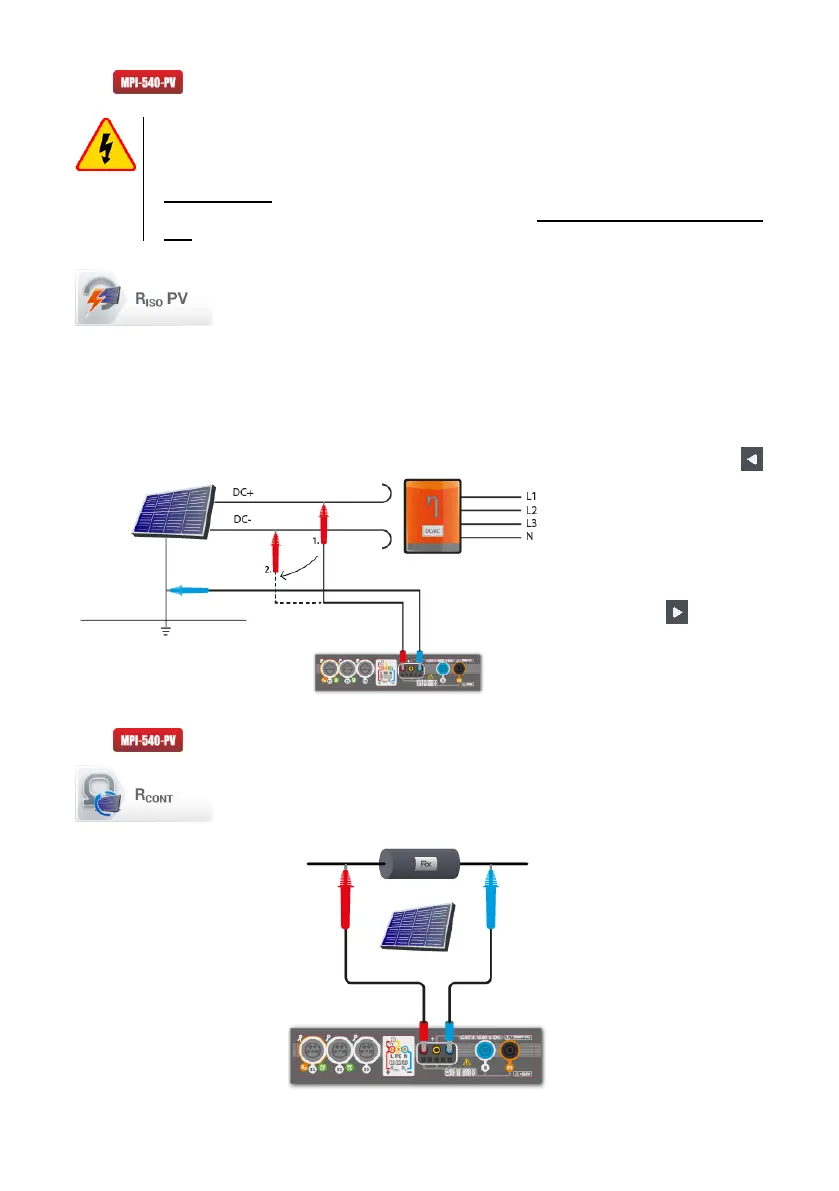

3.14 Insulation resistance (PV)
WARNING
 During measurements of insulation resistance, dangerous voltage up to 1 kV
occurs at the ends of test leads of the meter.
 It is forbidden to disconnect test leads before the measurement is completed.
Failure to obey the above instruction will lead to electric shock with high volt-
age and make it impossible to discharge the tested object.
The measurement is performed similarly as in sec. 3.8. Measure the insula-
tion resistance between the positive pole (DC+) and grounding, as well as
between the negative pole (DC-) and grounding. For this purpose:
 connect the grounding with R
ISO-
socket of the meter, connect DC+ line
with R
ISO+
meter, select R
ISO+
method in the instrument and start the
measurement,
 connect DC- line with R
ISO+
socket, select R
ISO-
method in the instrument
and start the measurement.
After selecting the bar
on the right side, a menu
will slide out with additional
measurement results.
U
ISO L-N
– measurement
voltage
Selecting the bar hides
the menu.
3.15 Continuity of connections (PV)
Connect the measuring system. The measurement is performed similarly
as in sec. 3.9.2.
