RCM
▼
RCD other than the EV, which is protected by a RCM
(residual current monitoring device at 6 mA DC). In this sit-
uation, before the test it is necessary to:
 determine according to which standard the measure-
ment is to be carried out (sec. 2.2.1),
 tick RCM,
 determine the multiplication factor of the 6 mA DC dif-
ferential current (EV button). The test settings vary de-
pending on the selected standard.
If standard mode has been selected, set the shape of the testing cur-
rent. In this mode, RCD EV and RCM tests are unavailable.
3.7.2 Automatic measurement of RCD parameters

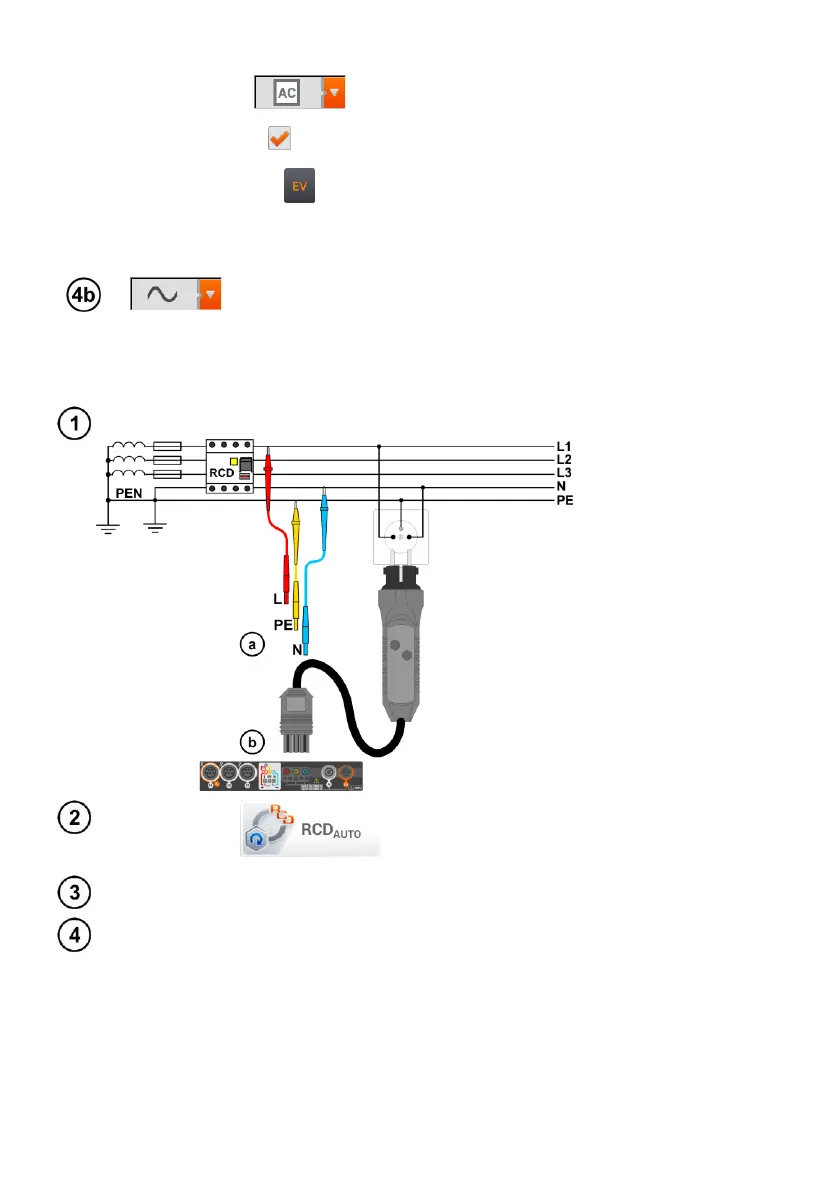

Connect the meter to the installation according to the drawing.
Select RCD
AUTO
.
Enter the measurement settings in accordance with section 3.7.1.
Press START to start the measurement.
