MPI-540 ● MPI-540-PV – BRIEF USER MANUAL
4 Auto measurements
The meter includes automated test procedures.

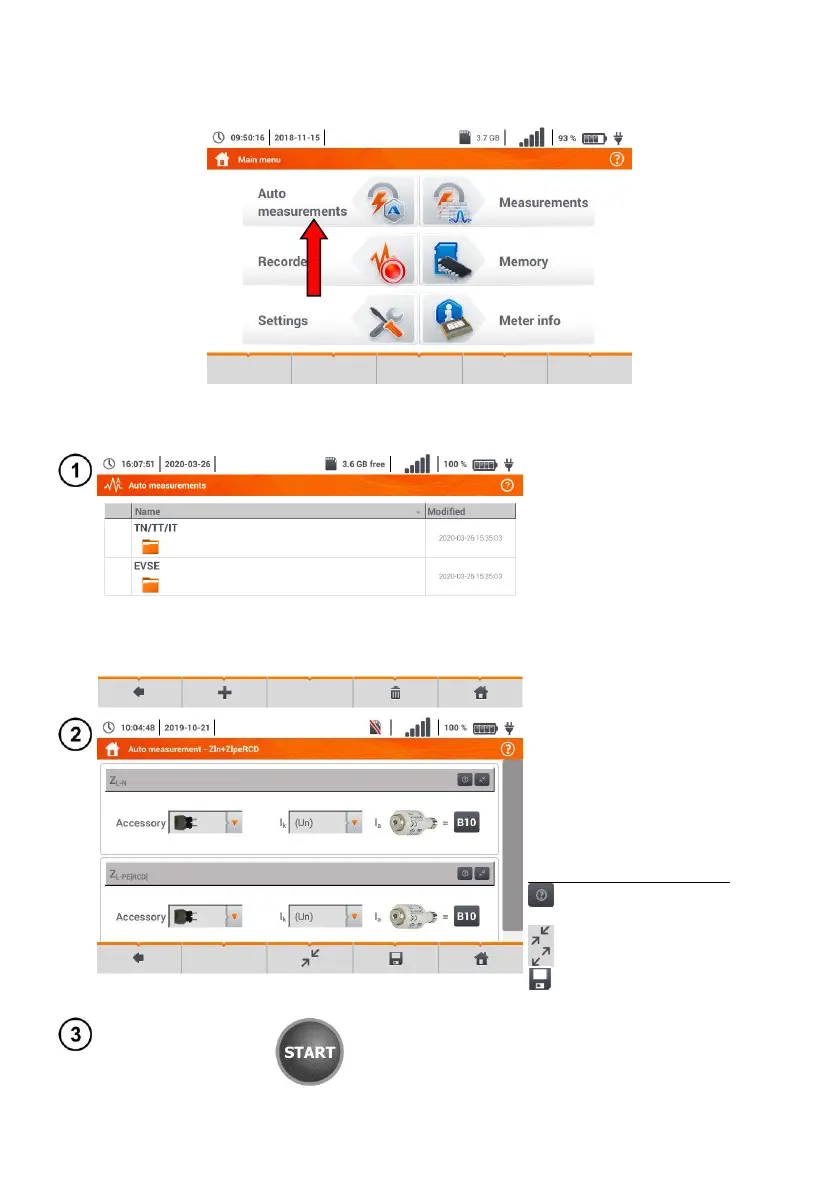

4.1 Proceeding auto measurements
The measurement sequences are
grouped into two folders:
measurements in TN/TT/IT
networks,
measurements dedicated for
electric vehicles charging sta-
tions.
Select the measuring sequence
from the list.
Connect the meter to the measur-
ing system.
In each setting field, enter the type
of measuring accessory, installa-
tion parameters and other required
data.
Description of function icons
assistance for a particular
measurement
collapsing setting fields
expanding setting fields
saving entered measurement
data.
Press START. The automatic
measurement sequence will start.
