MPI-540 ● MPI-540-PV – BRIEF USER MANUAL
50

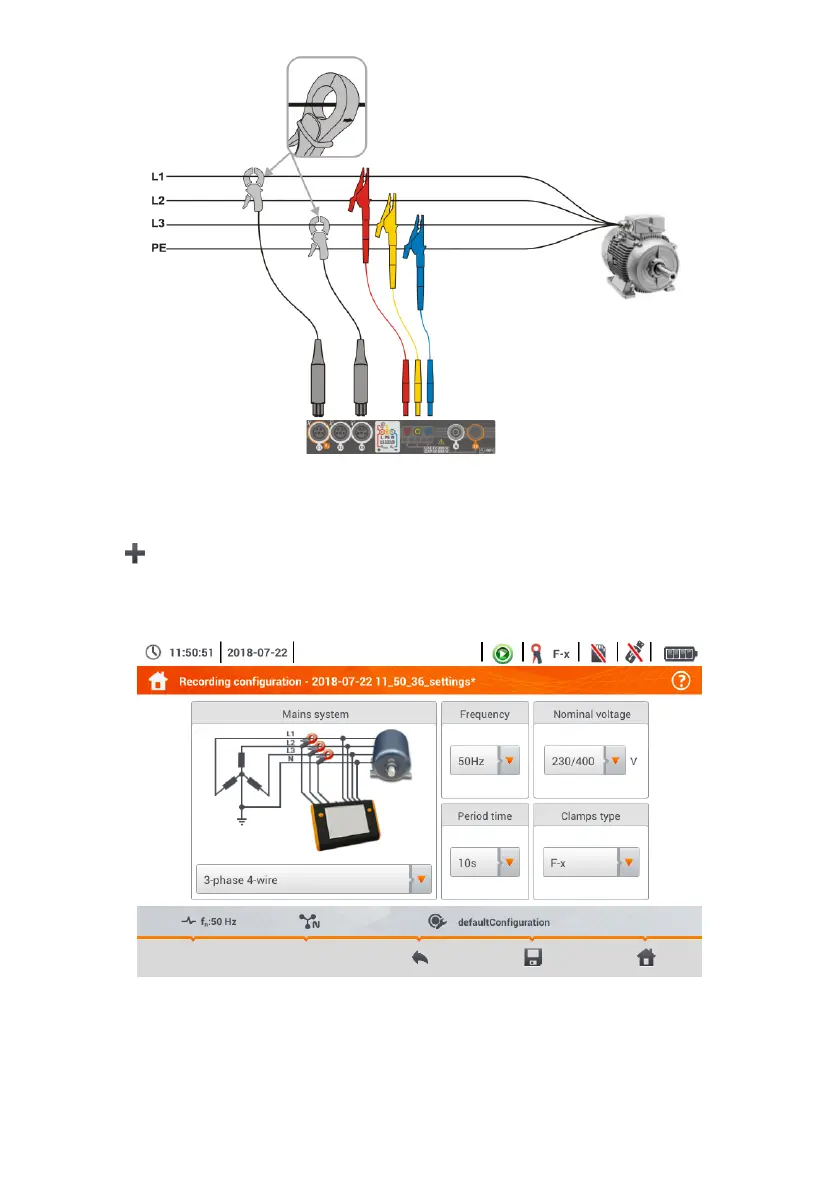

Fig. 5.7 Wiring diagram – 3-phase with three operating wires
(measurement of currents using Aron method)
5.3.2 Recording configuration
After the icon has been selected, a new window will be displayed as shown in Fig. 5.8. The default
name of the new configuration will be displayed in the title bar. It is created from the current date and
time in the "YYYY-MM-DD hh_mm_ss_settings" format, which may be modified.
Fig. 5.8. Recording configuration – general settings
