SonicWall SonicWave Deployment Guide
Hardware Overview
12
SonicWave 224w Ports and LEDs
The SonicWave 224w is a “wall jack” access point. The back of the device provides two LAN ports, a LAN1/PoE
IN port where the PoE Ethernet cable connects the access point with the PoE injector or PoE-enabled switch,
and one port of the LAN Pass Through port pair.
Punch down blocks are also provided for both LAN1/PoE IN and Pass Through. For the LAN1/PoE IN
connection, pin 1 of the Ethernet connector connects to the top left punch down block (labeled as 1>). For the
Pass Through connection, pin 1 of the Ethernet connector connects to the bottom right punch-down block
(labeled as <1). The rest of the pins are laid out in sequential order from 1-8.

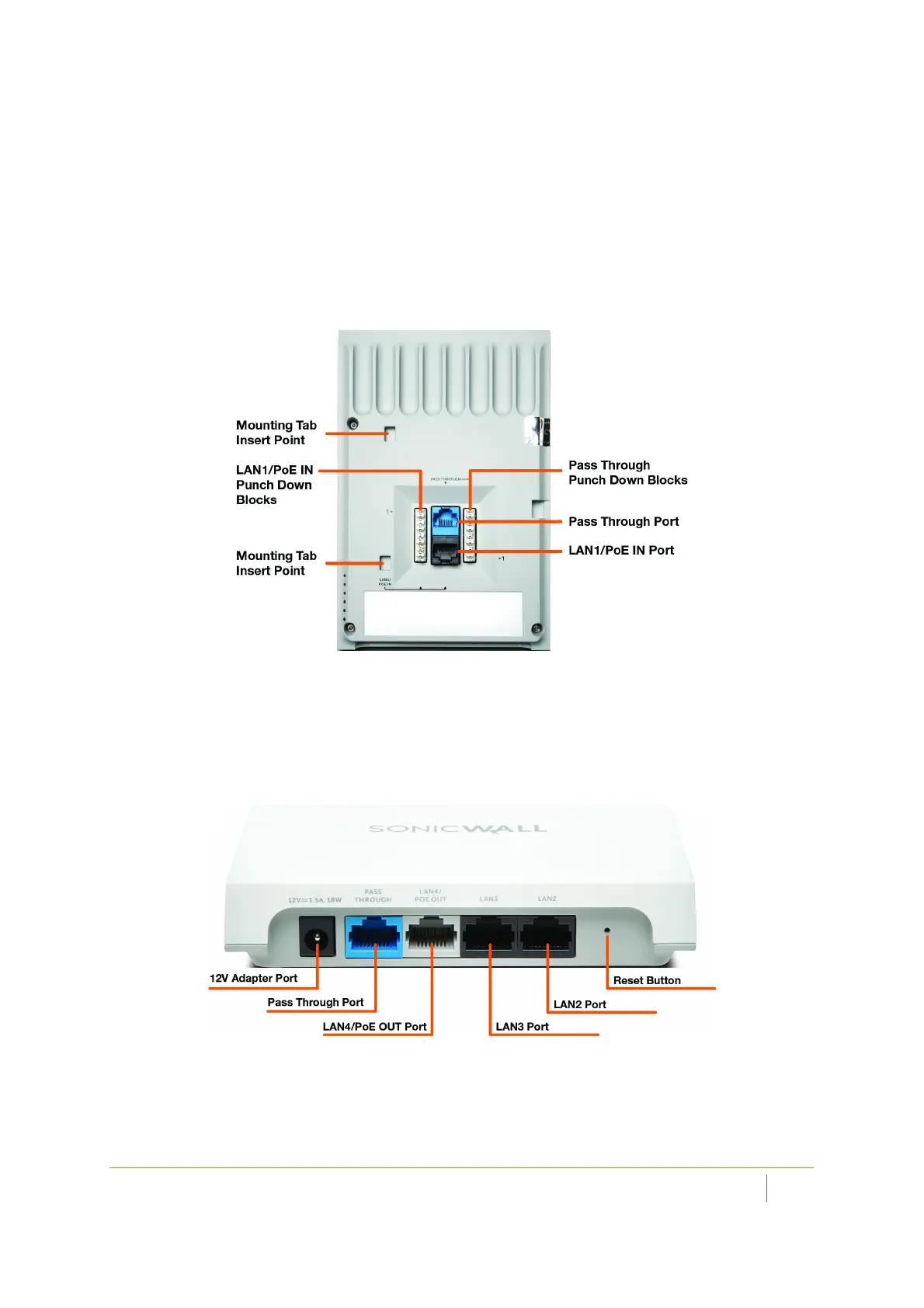

SonicWave 224w Back
When the access point is installed, the back panel is attached to the wall or to a junction box.
The blue Pass Through port is directly connected to the blue Pass Through port on the bottom edge of the unit.
Neither of these ports access any functionality in the SonicWave 224w, but they provide a way for you to
connect to a second network available in the same wall jack that provides your PoE-enabled network
connection.
224w Ports on Bottom Edge
Other ports on the bottom edge of the SonicWave 224w include a power connection where you can plug in a
12V adapter (optional), and the LAN4/PoE OUT port which provides power over Ethernet for an 802.3af device,
such as an IP camera.
The LAN2 and LAN3 ports provide a way for you to connect directly to the SonicWave 224w over Ethernet for
access to the Internet or internal networks via the SonicWall firewall that is connected to the SonicWave 224w.
The side panel of the SonicWave 224w has the LED indicators.
