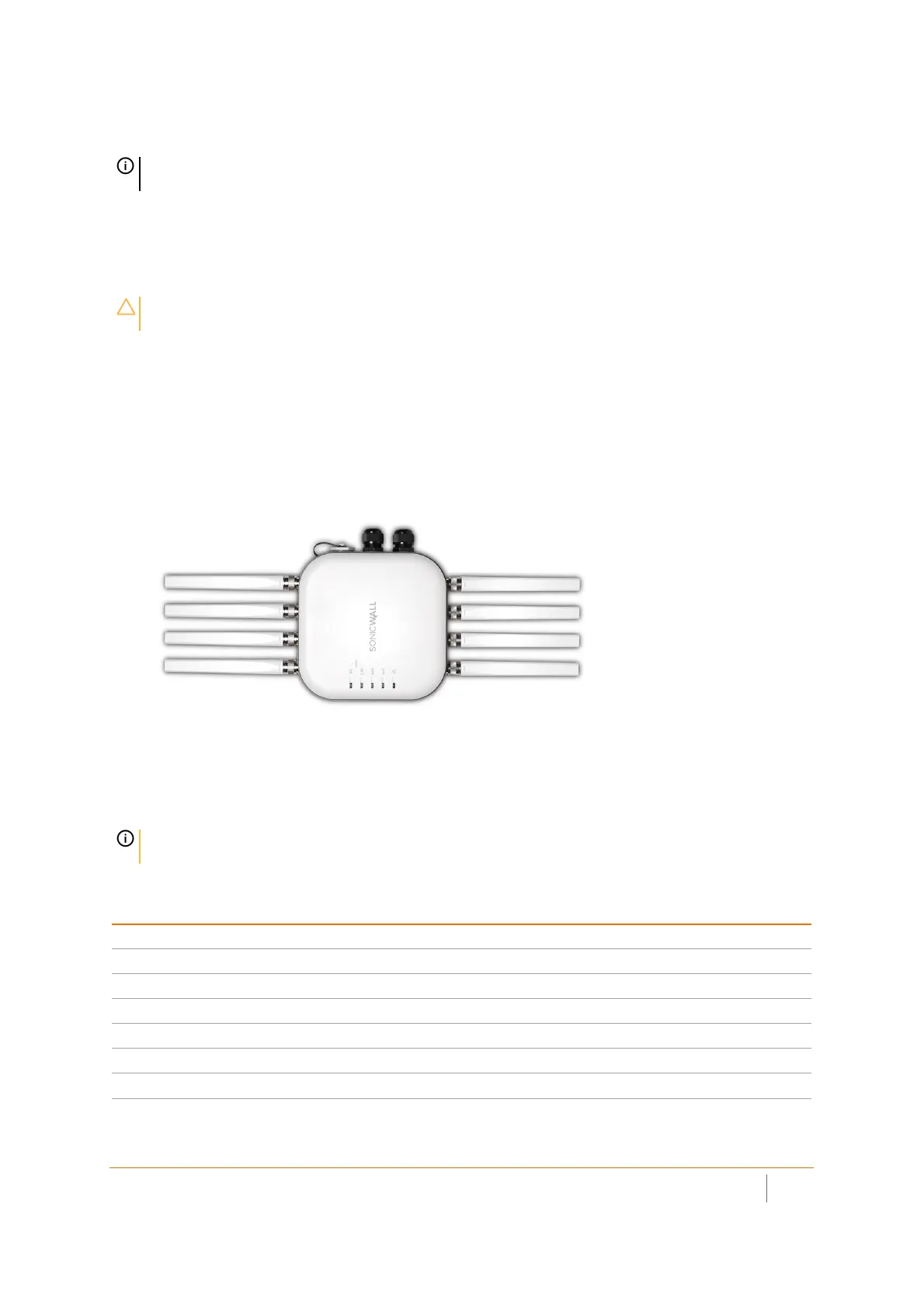

Installing SonicWave 432o Antennas
Install the external antennas (or approved alternates) intended for area coverage. The SonicWave 432o features
dual concurrent radio signals. Use the 2.4 GHz antennas to access Radio 1 (802.11 b/g/n at 600 Mbps) signals,
and the 5 GHz antennas to access Radio 2 (802.11 a/n/ac at 1733 Mbps) signals. You should use all eight WiFi
antennas to utilize both radio frequencies concurrently.
To install the antennas on your SonicWave 432o:
1 Remove all eight antennas from their bags and place one on each of the appropriate connectors,
matching the radio signals marked on the antennas to those marked above the connectors.
2 Insert the antenna base firmly into the antenna mount.
3 Carefully finger-tighten the fittings being cautious not to over-tighten them.
4 Repeat with the remaining antennas.
Available Antennas for the SonicWave 432o
The following antennas are approved for use with the outdoor SonicWave 432o.
IMPORTANT: This device must be professionally installed using either the supplied antennas
or with approved alternate antennas available from SonicWall.
CAUTION: To prevent damage to the SonicWave 432o, all RF output ports must be attached
to an approved antenna before the radios are enabled.
NOTE: For NEMA Type 4X compliance, use the optional NEMA Type 4X mounting kit (purchased separately)
and default antennas D121-05/D151-07.
Antenna Mode Band (GHz) Antenna Gain (dBi) Antenna Type
Deflection
(Beamwidth)
Default: D121-05*/D151-07* 2.4/5G 5dBi/7dBi Omni/Dipole 360°
S124-12† 2.4G 12dBi Sector 120°
S154-15† 5G 15dBi Sector 120°
P124-10‡ 2.4G 10dBi Panel 70°
P154-12‡ 5G 12dBi Panel 70°
P254-07 2.4/5G 5dBi/7dBi Panel 90°
P254-09 2.4/5G 8dBi/9dBi Panel 60°
