SonicWall SonicWave Deployment Guide
Hardware Overview
13

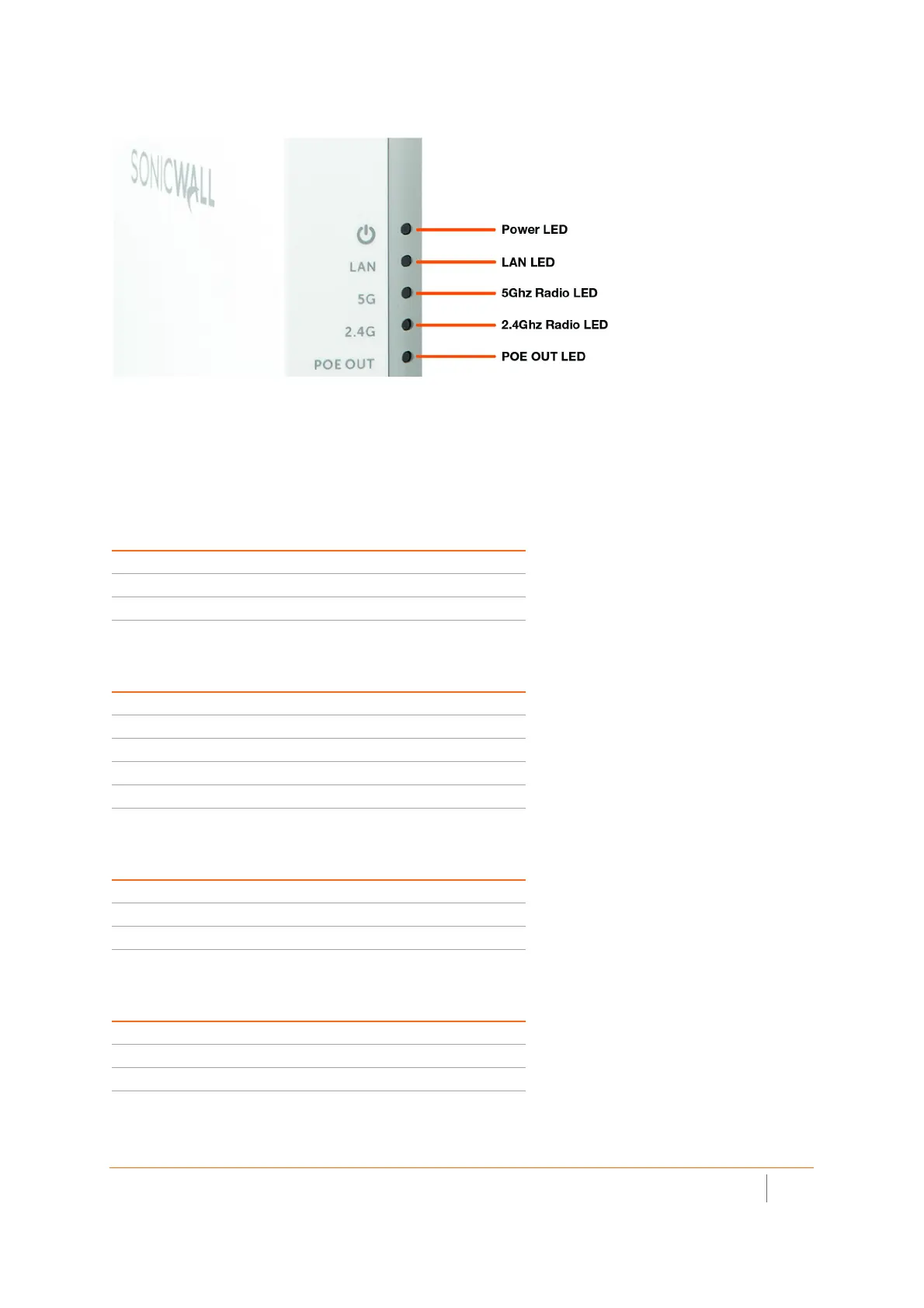

SonicWave 224 LEDs
For information about the LEDs, see the SonicWave 224w LED Activity section.
SonicWave 224w LED Activity
The SonicWave 224w LEDs provide essential status information about the access point.
Power LED
LED Color Description
Off No power
Blue Power source is AT (802.3at)
Yellow Power source is not AT
LAN LED
LED Color Description
Off No link
Solid Yellow Link established at 1 Gbps
Blinking Yellow Active traffic at 1 Gbps
Solid Green Link established at 100 Mbps or 10 Mbps
Blinking Green Active traffic at 100 Mbps or 10 Mbps
5 GHz Radio LED
LED Color Description
Off 5 GHz radio is off
Solid Green 5 GHz radio is on
Blinking Green Active traffic on 5 GHz radio
2.4 GHz Radio LED
LED Color Description
Off 2.4 GHz radio is off
Solid Green 2.4 GHz radio is on
Blinking Green Active traffic on 2.4 GHz radio
