Sonoscape E1 User Manual

10 Probes and Biopsy Brackets
Basic User Manual 133
6. Place the biopsy guide tube into the tube holder.
7. Insert the biopsy needle into the tube.
8. Unfold another probe sheath, and apply an appropriate amount of coupling gel to the
inside of the sheath.
9. Hold the probe attached with the biopsy bracket and unroll the sheath onto them.

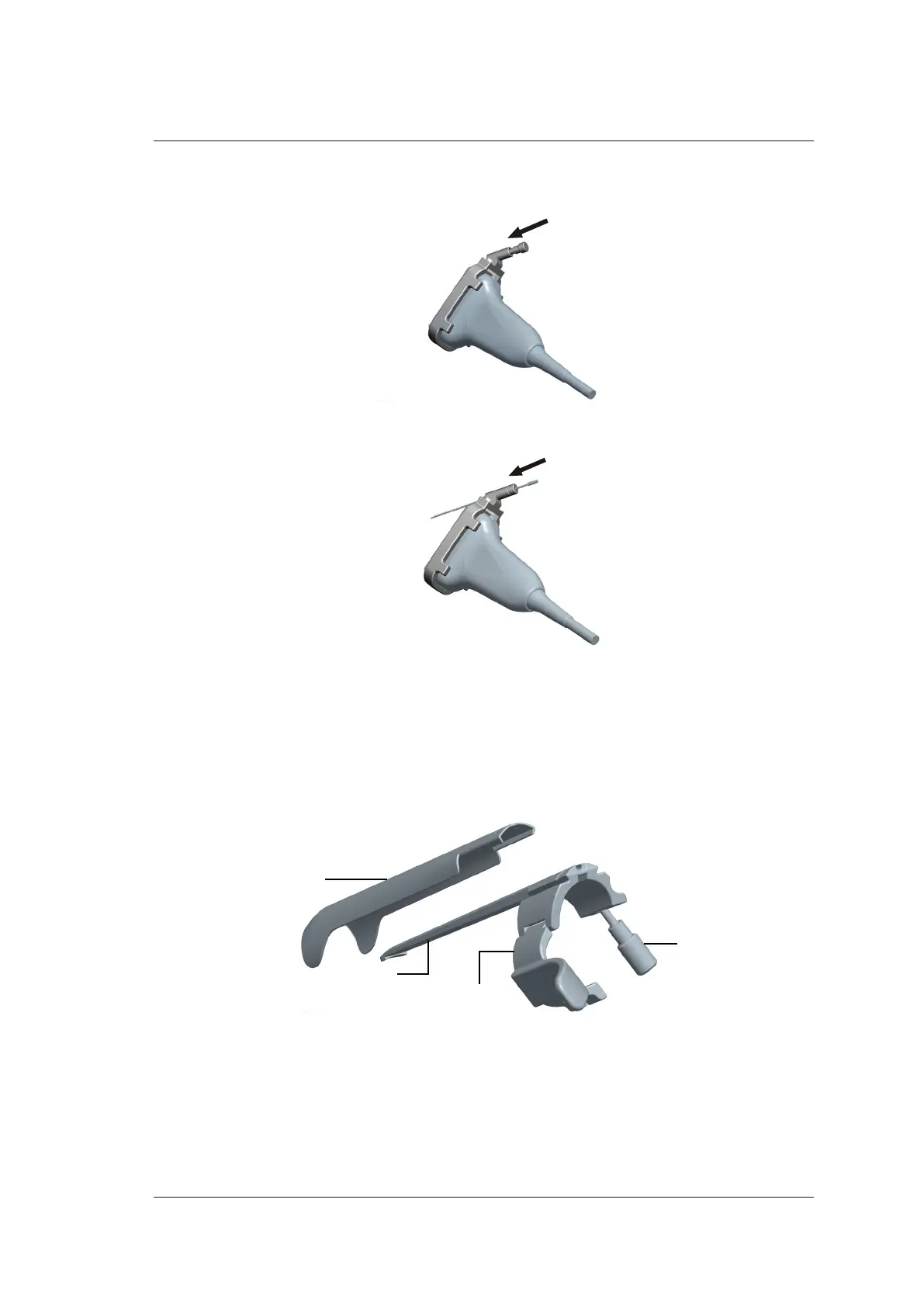

■ To Assemble the Endocavitary Biopsy Bracket
Inner Part
Fixing Bracket
Locking Screw
Top Housing
Perform the following steps.
1. Wear sterile gloves.
2. Unfold the probe sheath, and apply an appropriate amount of coupling gel to the
inside of the sheath and onto the face of the probe.

Sonoscape E1 Specifications

General

Type	Portable Ultrasound System
Display	15-inch LCD
Transducer Ports	2
Cine Loop	Yes
Imaging Modes	Color Doppler, Power Doppler
Applications	Obstetrics, Gynecology, Vascular, Musculoskeletal
Probe Connectors	2
Ports	VGA, USB, Ethernet
Supported Probes	Convex, Linear, Phased Array
