Sonoscape E1 User Manual

6 Acquiring Images
84 Basic User Manual
s
0
5
10
15
M Line

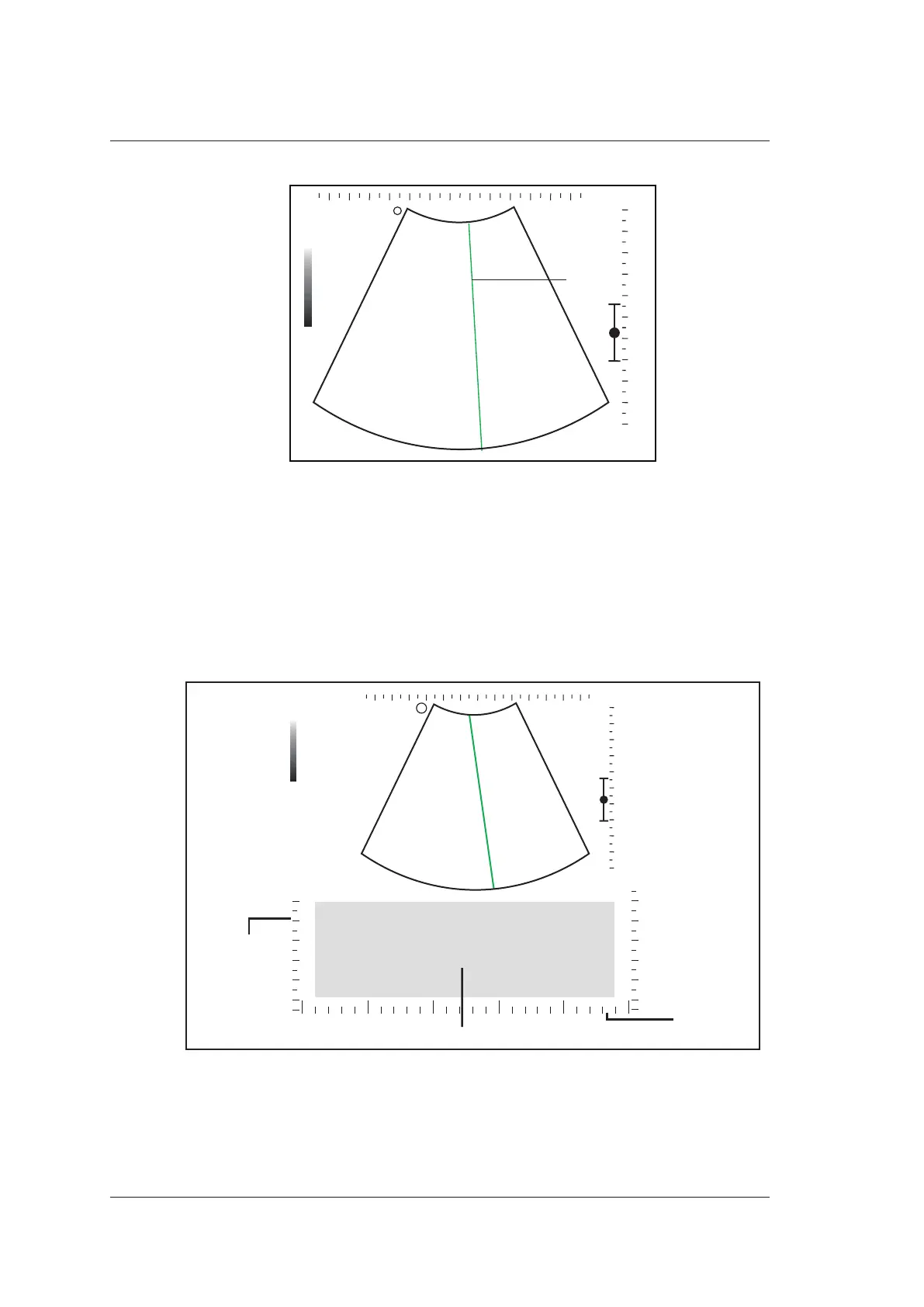

Figure 6-5 Inactivated B+M-Mode Imaging Screen
3. Adjust the position of the M line by using the trackball.
4. Press the Update key to activate the M mode.
The B-mode image with a M line is displayed at the upper part of the screen and the
M-mode image is displayed at the lower part of the screen after being activated, as
shown in Figure 6-6.
0
5
10
s
0
5
10
15
Y axis: depth
M Image
X axis: time
Figure 6-6 M-Mode Imaging Screen
−
X-axis is the time scale.
−
Y-axis is the depth scale.

Sonoscape E1 Specifications

General

Type	Portable Ultrasound System
Display	15-inch LCD
Transducer Ports	2
Cine Loop	Yes
Imaging Modes	Color Doppler, Power Doppler
Applications	Obstetrics, Gynecology, Vascular, Musculoskeletal
Probe Connectors	2
Ports	VGA, USB, Ethernet
Supported Probes	Convex, Linear, Phased Array
