Manual Integrator Supercal 531 06-06-2011 68
M-Bus module with two relay outputs (see 6.2.6)
M-Bus:
Definition of interface acc. to EN 1434-3
Interface potential-free, protected against reverse polarity
Transmission rate 300...9’600 baud
Data structure variable
Relay: see specification relay module

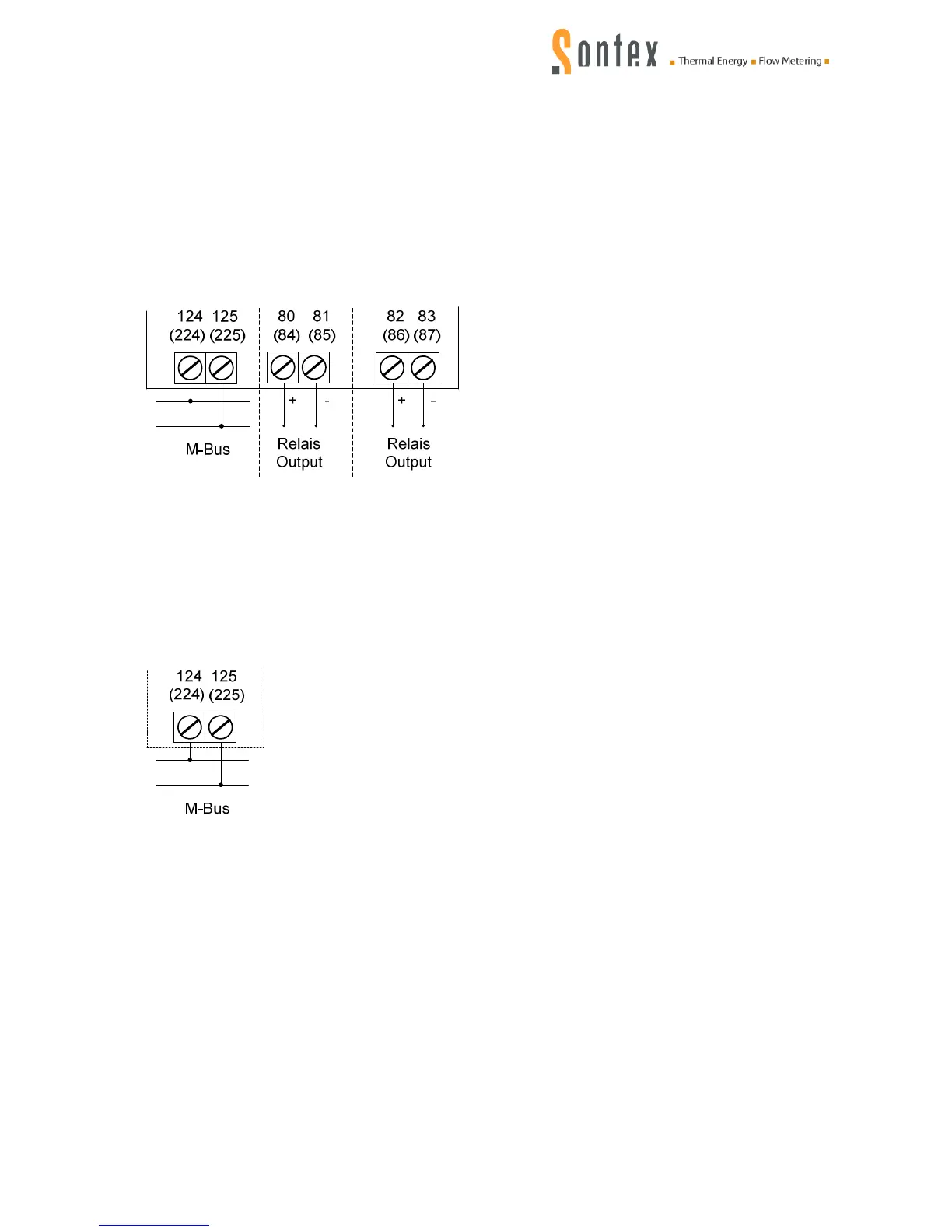

Connection diagram:
M-Bus module (see 6.2.7)
Definition of interface acc. to EN 1434-3
Interface potential-free, protected against reverse polarity
Transmission rate 300...9'600 baud
Data structure variable
Connection diagram:
