Sony HCD-DX90 - Printed Wiring Board - Main Section

HCD-DX90
2626
IC951 G-7
IC961 H-7
Q101 D-7
Q102 D-6
Q103 I-8
Q141 D-5
Q151 D-7
Q152 D-6
Q153 I-8
Q301 I-5
Q302 I-5
Q303 I-5
Q304 H-5
Q305 H-6
Q391 E-2
Q392 D-2
Q393 E-3
Q394 D-2
Q395 E-3
Q396 E-3
Q397 D-2
Q501 B-5
Q503 D-4
Q504 D-4
Q505 D-4
Q601 C-10
Q602 A-11
Q611 D-10
Q612 D-10
Q821 H-11
Q822 H-11
Q823 G-11
Q824 H-11
Q825 G-11
Q828 G-11
Q829 G-11
Q861 I-9
Q862 H-11
Q863 H-10
Q891 G-11
Q892 G-11
Q911 D-9
Q912 D-9
D501 B-5
D502 B-5
D503 B-5
D504 B-4
D505 B-5
D506 B-5
D511 D-2
D601 C-10
D641 D-12
D651 C-9
D801 I-11
D822 G-11
D824 F-10
D841 H-11
D861 I-9
D891 I-12
D892 I-12
D901 H-10
D902 I-9
D903 H-10
D904 H-9
D906 I-10
D907 I-10
D908 I-10
D909 I-10
D910 J-7
D911 I-7
D952 G-7
D953 G-7
IC101 E-8
IC102 D-6
IC104 C-7
IC201 B-12
IC301 G-5
IC302 H-4
IC303 F-3
IC304 H-3
IC401 C-3
IC501 B-5
IC601 C-11
IC651 B-10
IC911 C-8
IC921 H-8
IC931 H-6
A
PANEL BOARD
CN601
H
LEAF SW BOARD
CN1001
I
HEAD (A) BOARD
CN1
8180
51
50
31 30
1
100
1
E
3
K
DRIVER BOARD
CN701
E
BD BOARD
CN101
41
1
E
E
3
58
41
58
E
E
E
E
E
E
E
E
E
EE
E
E
E
E
13
(FOR ADJUSTMENT)
4
58
1
41
18
1
1
9
3
5
8
J
HEAD (B) BOARD
CN2
E
E
E
E
6
4
1
3
31 31
31
31
21 1
22 42
85
41
1
1
1
3
5
4
1
3
5
4
3
54
3
E
E
E
7
6
5
1
1
2
3
4
A
K
K
A
2
3
4
8
1
12
13
45
14
11
10
15
6
7
9
2
2
3
3
3
1
1
E
E
E
E
E
E
E
E
E
E
E
E
E
4
6
3
5
1
2
1
13
1
13
POWER AMP BOARD
CN503
B
POWER AMP BOARD
CN502
C
1-676-194-
(CHASSIS)
26
R (+)
L (+)
R (–)
L (–)
SPEAKER
TM801
MD/VIDEO
(AUDIO)
FM 75Ω
COAXIAL
M
M961
(FAN)
AM
ANTENNA
CD DIGITAL OUT
OPTICAL
TM601
MAIN BOARD
A
B
C
D
E
F
G
H
I
J
1 2 3 4 5 6 7 8 9 10 11 12 13
E

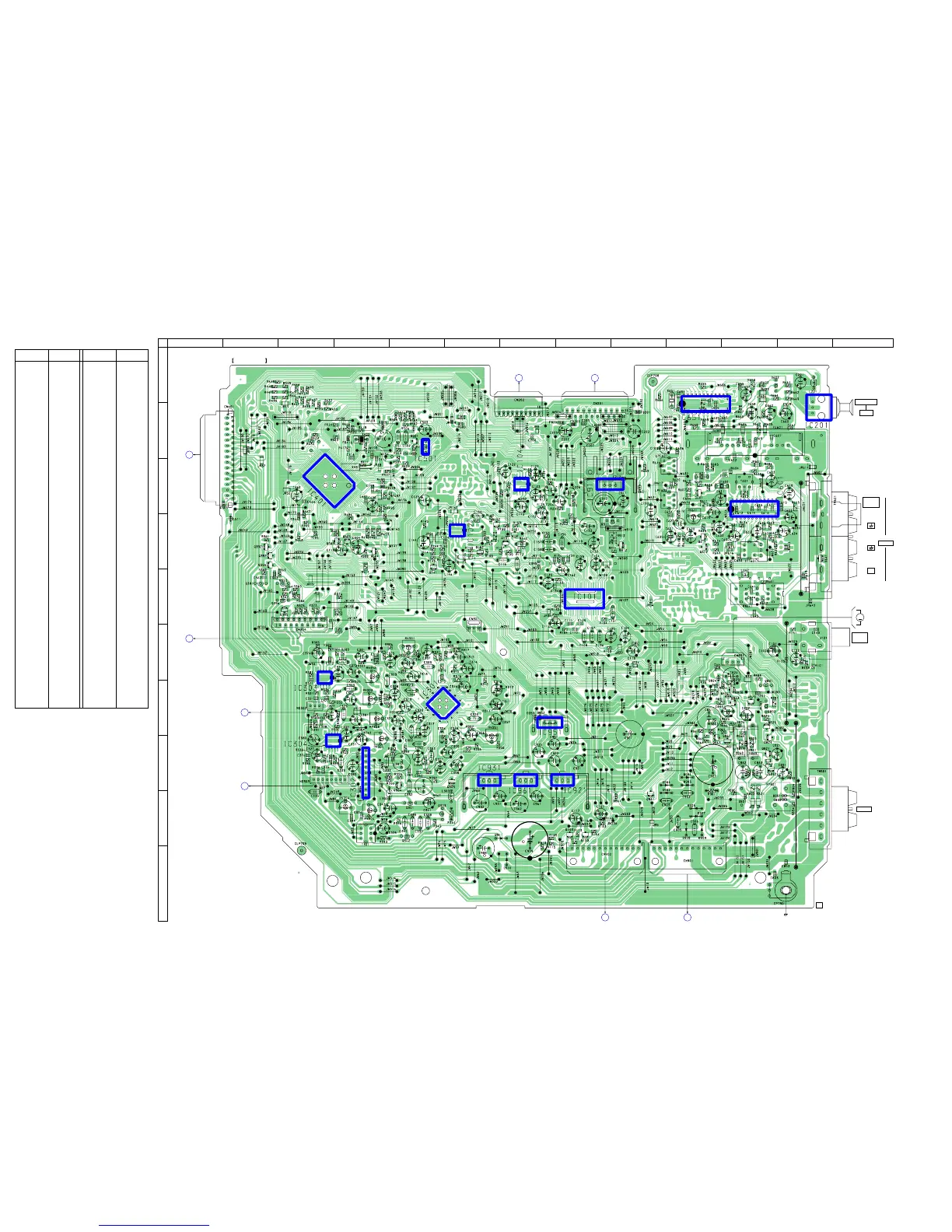

7-5. PRINTED WIRING BOARD – MAIN SECTION – • See page 21 for Circuit Boards Location.
Ref. No. LocationRef. No. Location
• Semiconductor Location
(Page 32)
(Page 34)
(Page 34)
(Page 34)
(Page 30) (Page 30)
(Page 36)
(Page 24)
