Front panel section
Chassis section
M961
9
8
7

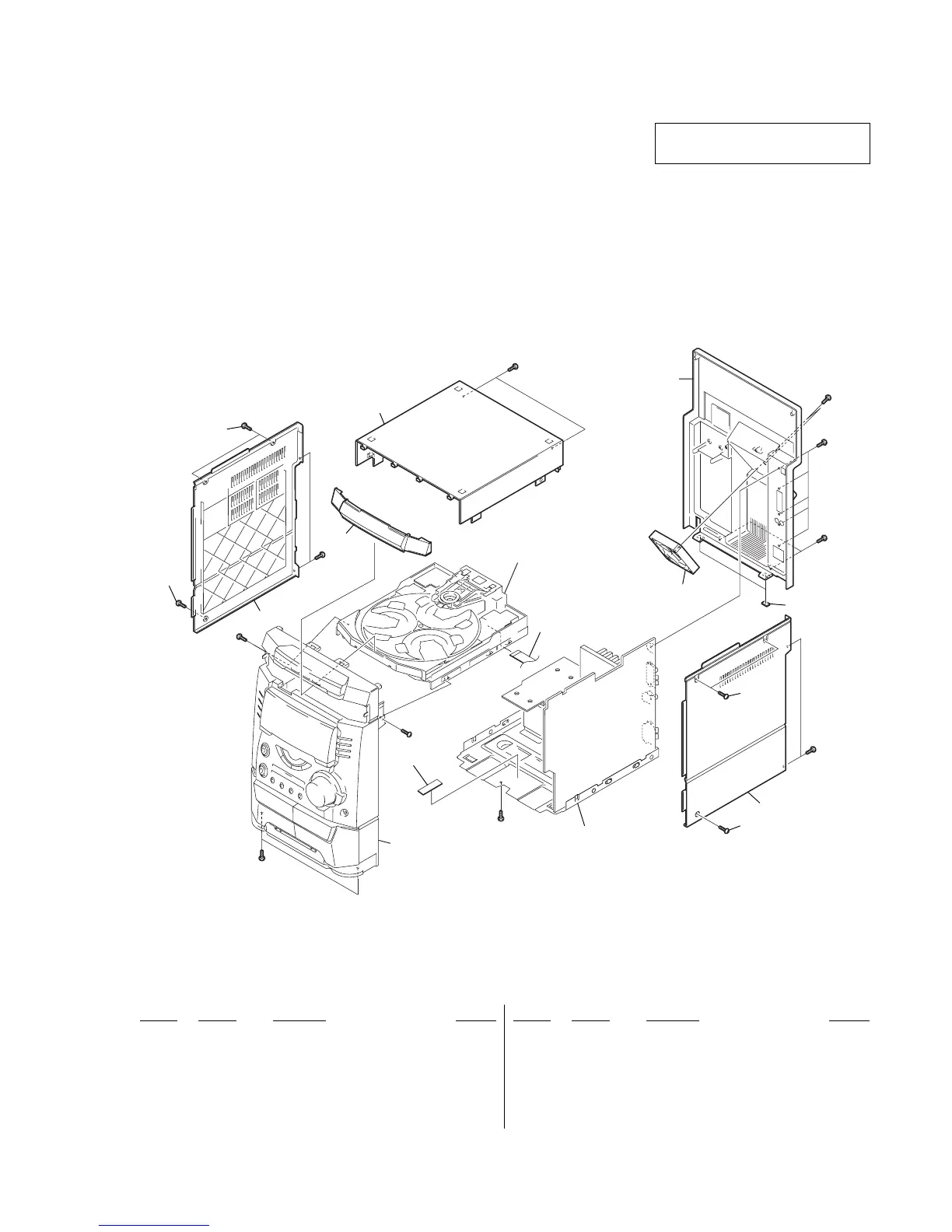

8-1. MAIN SECTION
1 3-363-099-01 SCREW (CASE 3 TP2)
2 3-363-099-41 SCREW (CASE 3 TP2)
3 4-225-038-32 SIDE PANEL (L)
4 A-4735-149-A LOADING PANEL ASSY
5 4-225-039-82 SIDE PANEL (R)
6 4-224-550-01 UPPER CASE (TOP)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
7 1-757-045-11 CABLE, FLAT (19 CORE)
8 4-225-041-51 BACK PANEL
9 4-225-252-01 CUSHION (FOOT)
10 3-831-441-11 CUSHION, SARANET
M961 1-763-072-11 FAN, D.C.
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• Abbreviation
E2 : 120 V AC Area in E model
E51 : Chiliean and Peruvian model
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
