Sony HCD-DX90 - Front Panel Section, CD Mechanism Deck (CDM58-K2 BD38); Tape Mechanism Deck (TCM-230 AWP11)

HCD-DX90
8

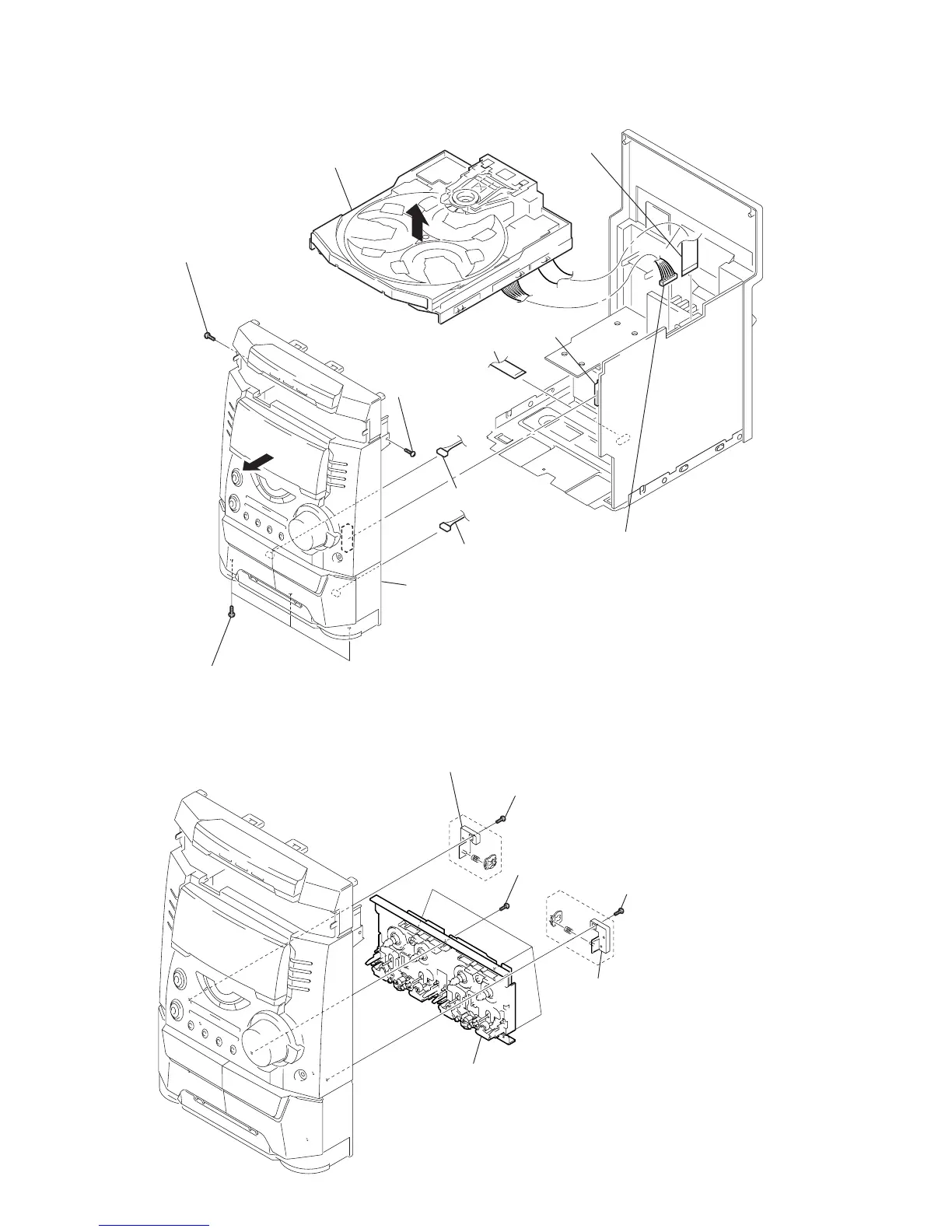

3-4. FRONT PANEL SECTION, CD MECHANISM DECK (CDM58-K2BD38)
3-5. TAPE MECHANISM DECK (TCM-230AWP11)
7
qa
qs
CD mechanism deck (CDM58)
8 front panel section
3 connector (CN2)
9 connector (CN201)
0 connector (CN202)
2 connector (CN1)
Connector
(CN601)
1 flat type wire (CN304)
6 three screws (+BVTT 3 × 6)
5 screw (+BVTP 3 × 10)
4 screw (+BVTP 3 × 10)
6 tape mechanism deck
(TCM-230AWP11)
5 four screws (+BVTP 2.6 × 8)
1 screw (+BVTP 2.6 × 8)
2 bracket assy (heart cam R)
4 bracket assy (heart cam L)
3 screw (+BVTP 2.6 × 8)
