Sony HCD-DX90 - CD Mechanism Deck Section Exploded View

48
HCD-DX90

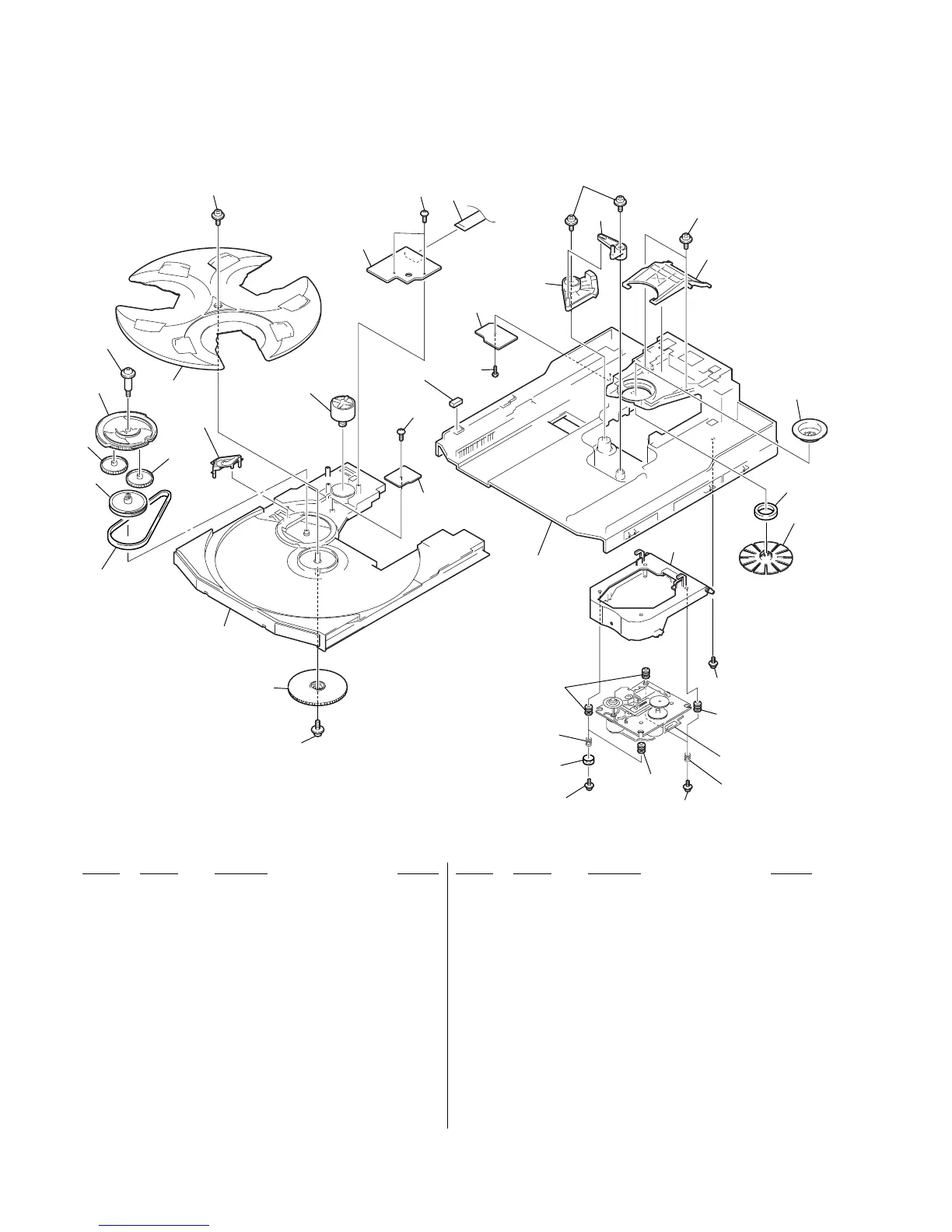

8-4. CD MECHANISM DECK SECTION
(CDM58-K2BD38)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
201 4-933-134-11 SCREW (+PTPWH M2.6X8)
202 4-221-679-01 CAM(RELAY)
203 4-221-675-01 TABLE
204 4-221-686-01 LEVER (CHANGE)
205 4-221-676-01 TRAY
206 4-933-134-51 SCREW (+PTPWH 2.6X8)
207 1-675-910-14 MOTOR BOARD
208 4-951-620-01 SCREW (2.6X8), +BVTP
209 1-791-983-12 WIRE (FLAT TYPE) (8 CORE)
210 1-675-911-14 SENSOR BOARD
211 1-675-912-14 DRIVER BOARD
212 X-4952-608-1 CAM(U/D) ASSY
213 4-221-681-01 LEVER (EX)
214 4-221-682-01 LEVER (LIFTER)
215 4-221-688-01 PULLEY (B), CHUCKING
216 1-471-035-11 MAGNET ASSY
217 X-4952-019-1 PULLEY (A) ASSY, CHUCKING
218 X-4951-889-1 HOLDER (BU) ASSY
219 4-222-097-01 SCREW, STEP
220 4-227-045-01 SPRING (INSULATOR), COIL
221 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
222 4-222-095-01 BELT
223 4-221-678-01 CAM(CONTROL)
224 4-221-683-01 GEAR (U)
225 4-221-685-01 PULLEY (S)
226 4-229-807-11 CUSHION (SLIDE)
227 4-227-549-11 INSULATOR
228 4-231-151-01 STOPPER (BU)
M721 A-4672-826-A MOTOR ASSY (LOADING)
BU-K2BD38
not supplied
201
202
203
204
223
219
222
225
224
224
M721
205
206
207
209
208
226
208
208
210
211
212
213
201
214
221
215
216
218
227
227
220
227
221
208
228
217
221
220
