Sony HCD-DX90 - Printed Wiring Board - Leaf SW Section

HCD-DX90
3434
CN303
TAPE MECHANISM
DECK BLOCK (2/3)
(TCM-230PWR11)
TAPE MECHANISM
DECK BLOCK (3/3)
(TCM-230PWR11)
(ERASE HEAD)
(REC/PB HEAD)
CN304
S1001, 1002 S1003 – 1006,
S1008,1009
M
M901
(CAPSTAN)
TAPE MECHANISM
DECK BLOCK (1/3)
(TCM-230PWR11)
PM1001
PLUNGER
(DECK-A)
PM1002
PLUNGER
(DECK-B)
A
B
C
D
1 2 3 4 5 6
CN302

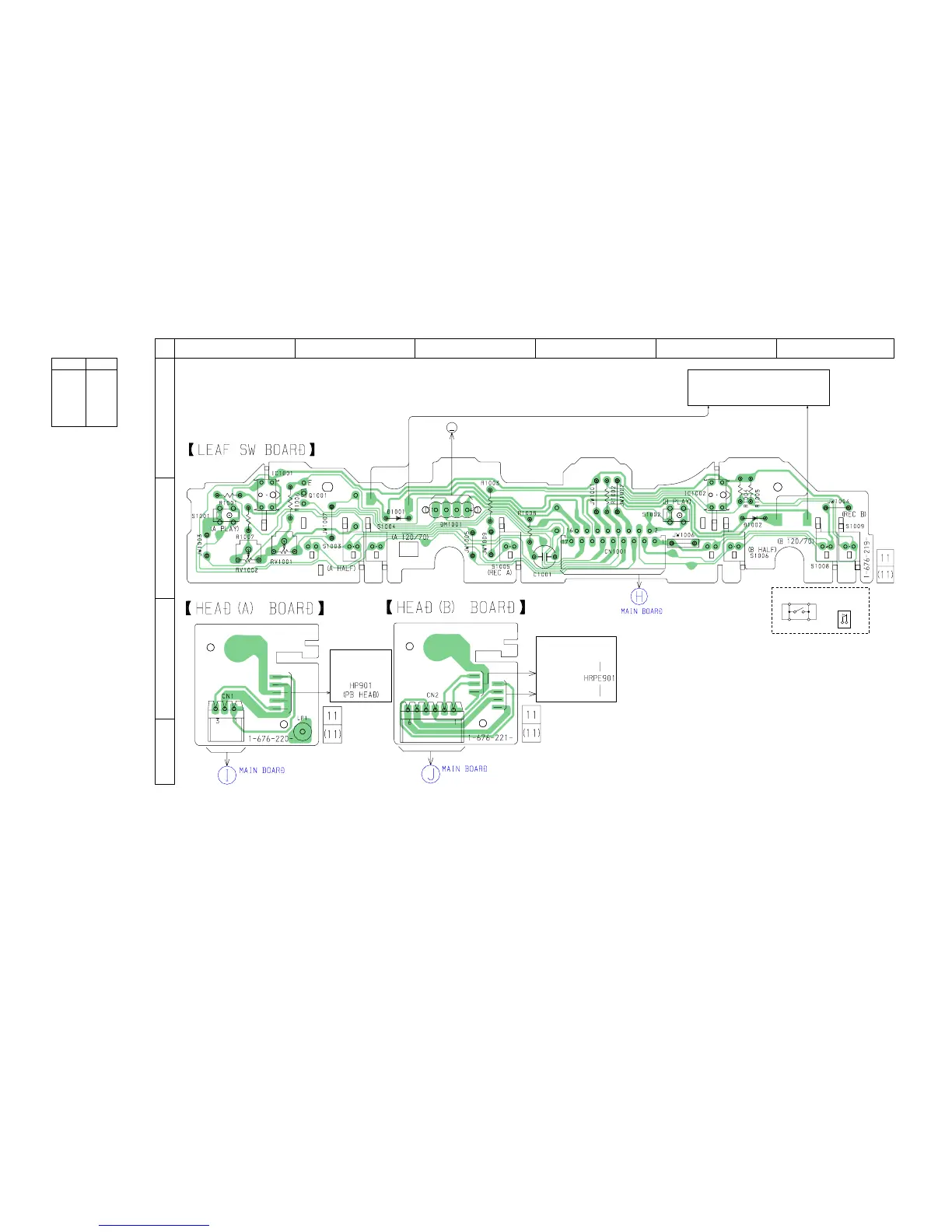

7-13. PRINTED WIRING BOARD – LEAF SW SECTION – • See page 21 for Circuit Boards Location. • See page 28 for Schematic Diagram of Head Board.
• Semiconductor
Location
Ref. No. Location
D1001 B-2
D1002 B-5
IC1001 B-1
IC1002 B-5
Q1001 B-2
(Page 26)
(Page 26)
(Page 26)
