Sony HCD-DX90 - Schematic Diagram - Trans Section

HCD-DX90
3939

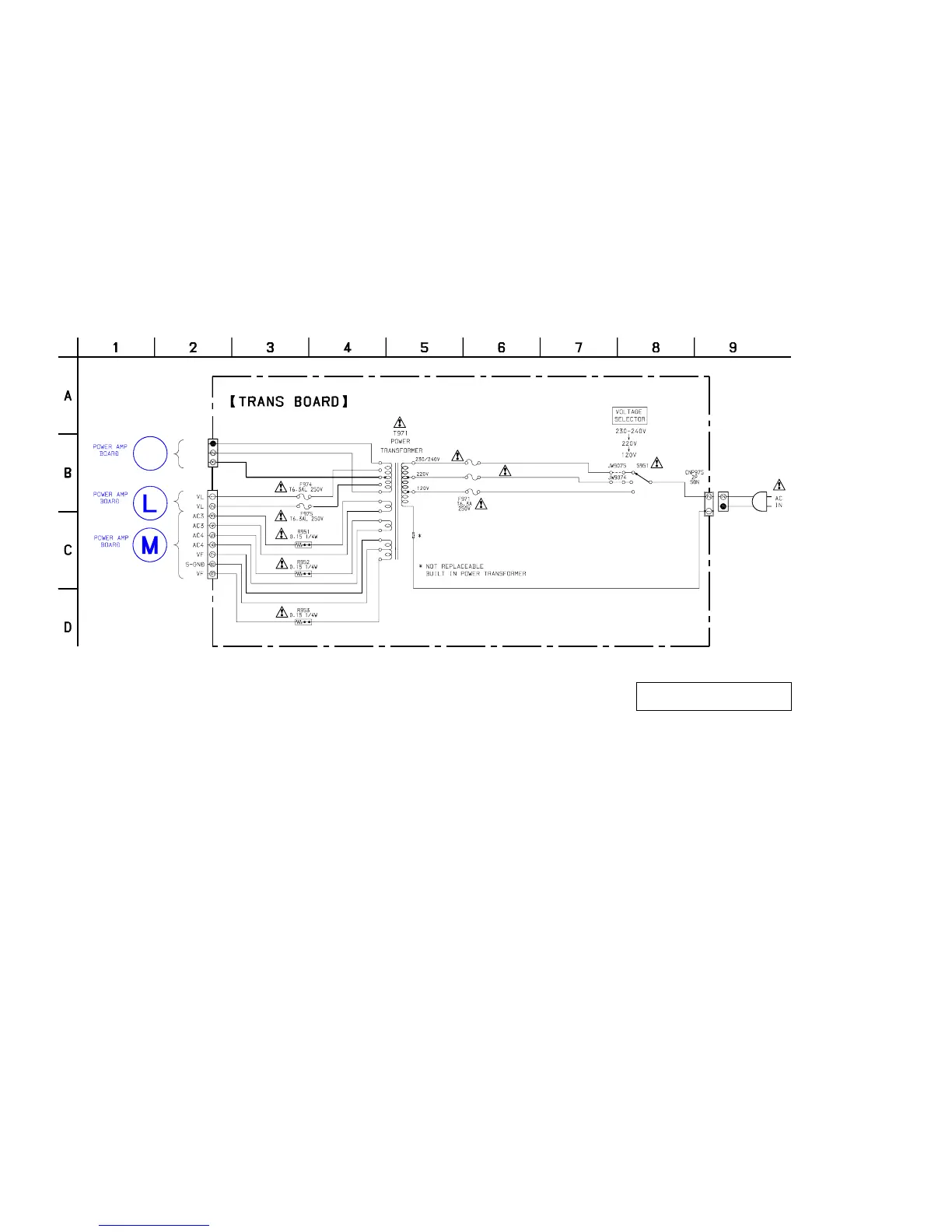

7-18. SCHEMATIC DIAGRAM – TRANS SECTION –
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
CN978
3P
VH
VH
GND
G
F973 T4A 250V
F972 T4A 250V
NO504
NO501
NO506
CN977
9P
S951
(Page 31)
(Page 31)
(Page 31)
