Sony HCD-DX90 - Main Board Section

47
HCD-DX90

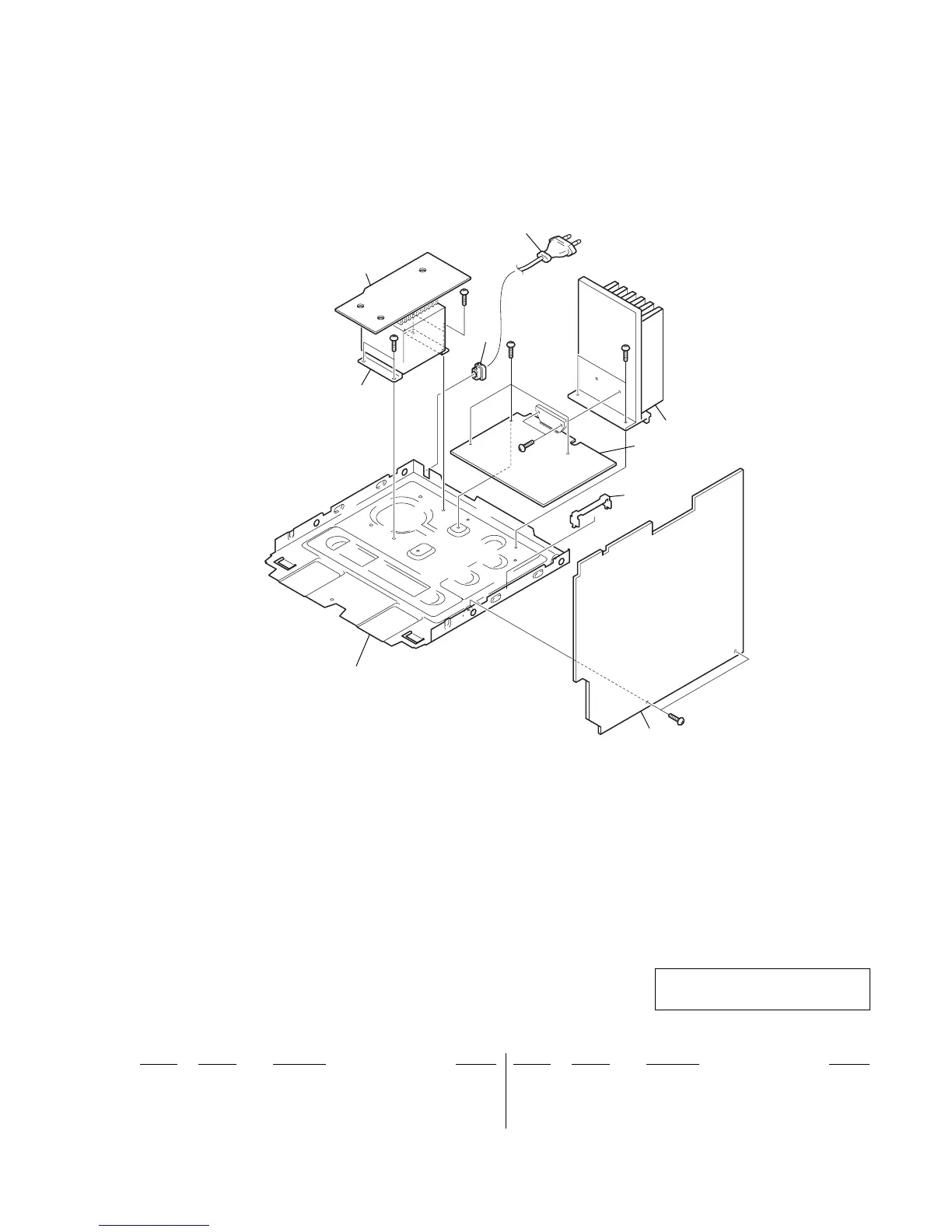

8-3. MAIN BOARD SECTION
#8
#2
#4
#6
#2
#6
103
107
106
102
105
not supplied
not supplied
T971
108
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
102 A-4473-087-A MAIN BOARD, COMPLETE
* 103 4-988-533-01 HOLDER, PWB
105 1-676-808-11 TRANS BOARD
106 3-703-244-00 BUSHING (FBS001), CORD (E51)
106 4-966-266-01 BUSHING (S) (FBS002), CORD (E2)
107 A-2007-890-A POWER AMP BOARD, COMPLETE
0108 1-777-071-51 CORD, POWER
0T971 1-435-323-11 POWER TRANSFORMER
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
