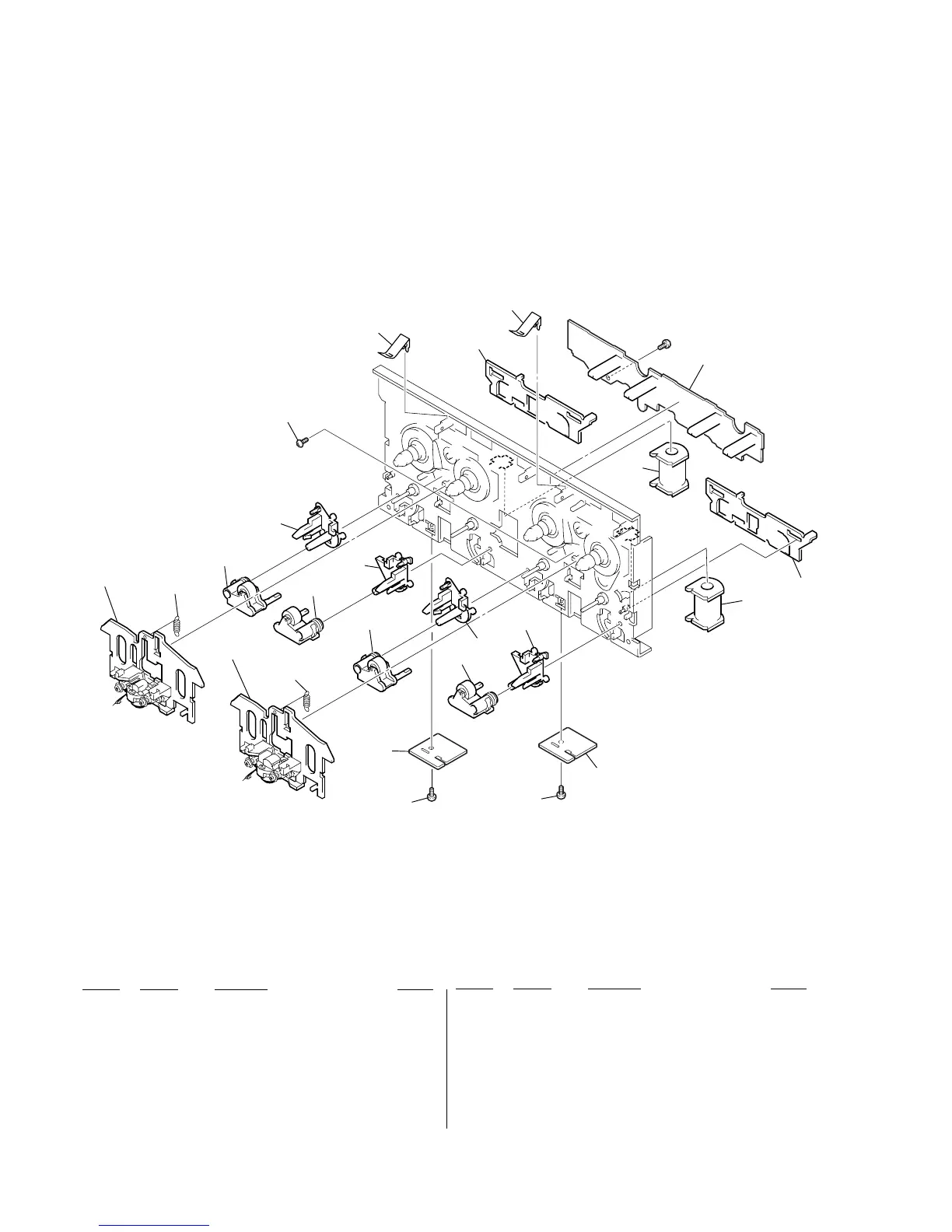

8-6. TAPE MECHANISM DECK SECTION-1
(TCM-230PWR11)
701
701
702
702
703
703
705
705
704
714
706
706
704
HRPE901
HP901
Note: Two different types of tape mechanism are used depending on models.
They maintain compatibility as an entire mechanism even though
there are some different parts are used.
710
708
707
707
709
713
PM901
#7
PM902
713
701 3-016-574-01 SPRING (HEAD), TENSION
702 X-3374-156-5 PINCH LEVER (REV) ASSY
703 X-3374-155-5 PINCH LEVER (FWD) ASSY
704 3-017-366-01 BASE (PINCH LEVER REV)
705 3-017-365-01 BASE (PINCH LEVER FWD)
706 3-016-567-02 SPRING (CASSETTE), LEAF
707 4-227-872-01 SCREW (+PTT 2X4), GROUND POINT
708 A-2007-839-A HEAD (A) BOARD, COMPLETE
709 A-2007-840-A HEAD (B) BOARD, COMPLETE
710 A-2007-838-A LEAF SW BOARD, COMPLETE
713 3-016-566-01 SLIDER, REVERSE
714 3-703-454-21 SCREW (1.7X6), TAPPING
HP901 A-2004-765-A BASE (A) ASSY, HEAD
HRP901 A-2004-766-A BASE (B) ASSY, HEAD
PM901 1-454-887-21 SOLENOID, PLUNGER
PM902 1-454-887-21 SOLENOID, PLUNGER
