Sony HCD-DX90 - Panel Board; Trans Board

HCD-DX90
9

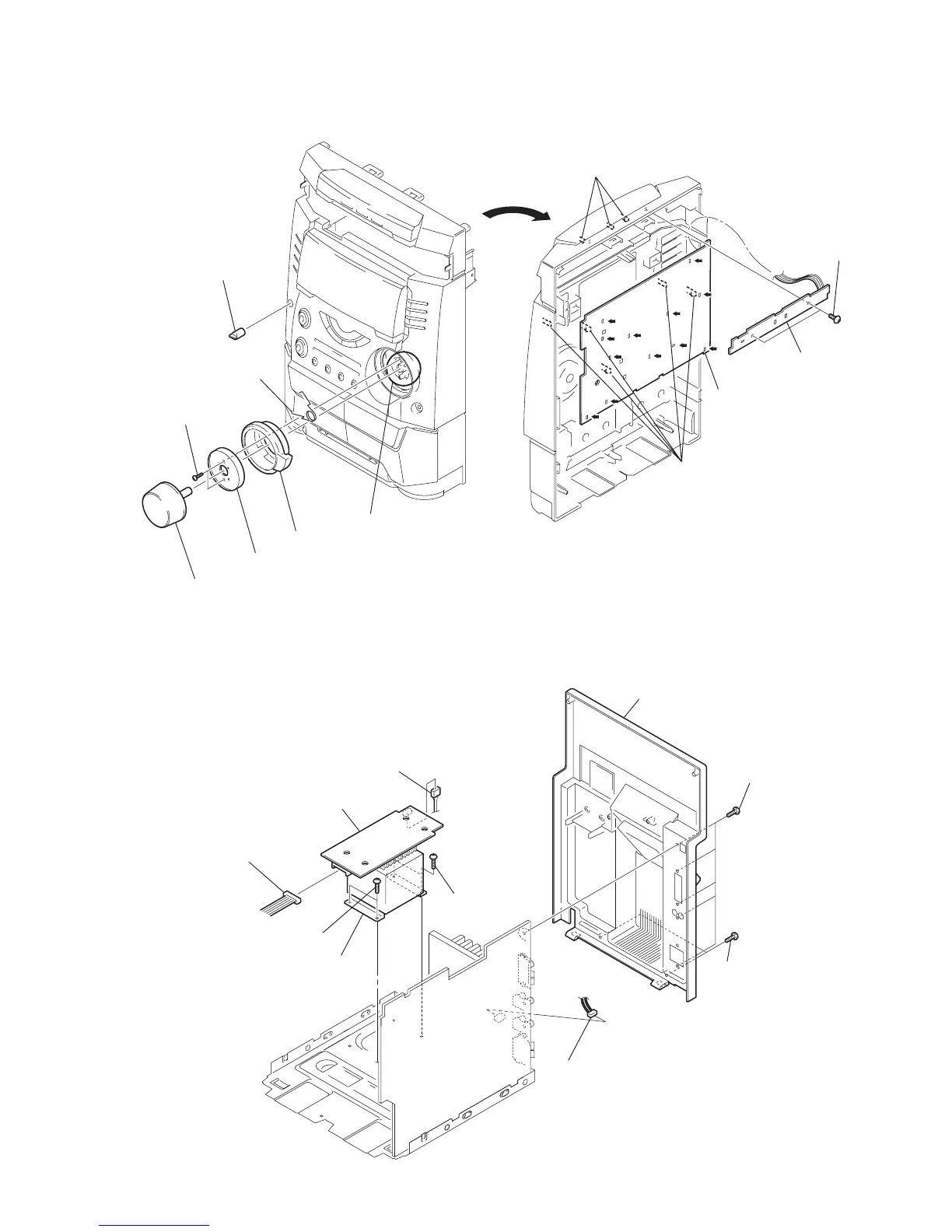

3-6. PANEL BOARD
3-7. TRANS BOARD
qs Cut the thirteen melted-connection points with a cutting plier.
Note: When attching the panel board,
refer to "Service Note" on page 3.
qf panel board
qa CD Switch boar
d
1 vol knob
8
5
FR knob
4 bracket (FR)
qd five claws
0 three claws
9 two screws
(+BVTP 2.6
× 8)
3 two bosses & four pins
6 spring
2 two screws
(+BVTP 2.6
× 8)
7 knob(MIC)
8 two screws
(+BVTT 4 × 8)
2 five screws
(+BVTP 3 × 10)
1 two screws
(+BVTP 3 × 10)
4 back panel
7 two screws (+BVTT 4 × 8)
0 trans board
9 power transformer (T971)
5 connector (CN975)
6 connector (CN977)
3 connector (CN891)
