Sony HCD-DX90 - Panel Section Exploded View

46
HCD-DX90

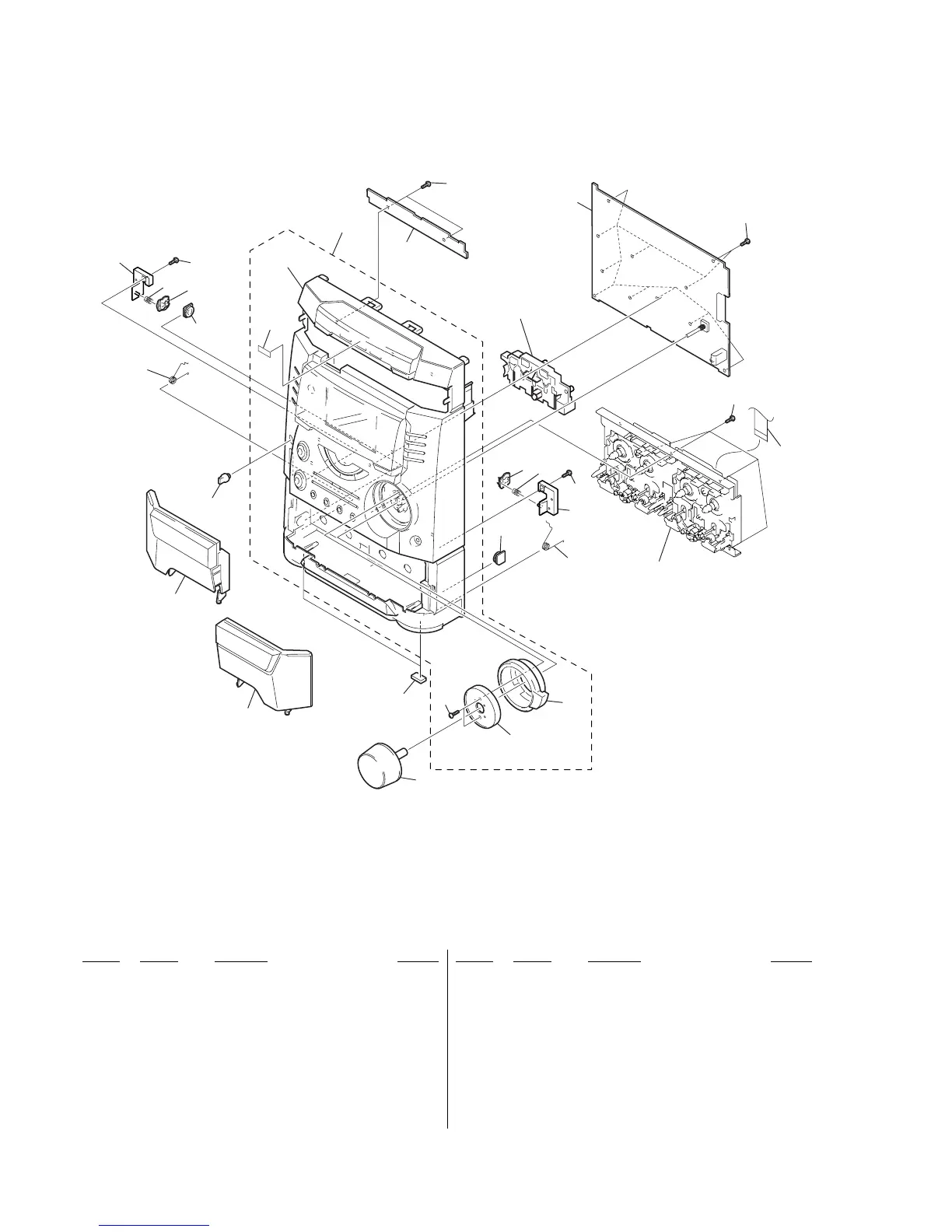

8-2. PANEL SECTION
51
52
53
56
69
58
57
70
67
59
59
63
64
66
54
55
* 67
67
67
67
61
60
60
62
* For service only
(Be sure to refer to "Service note" on page 4.)
Tape mechanism deck
(TCM-230AWP11)
68
67
71
not supplied
not supplied
not supplied
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
51 X-4953-732-1 TC HOLDER (L) ASSY
52 X-4953-733-1 TC HOLDER (R) ASSY
53 4-225-032-01 VOL KNOB
54 A-4428-077-A CD SWITCH BOARD, COMPLETE
55 4-962-708-71 EMBLEM (4-A), SONY
56 4-225-033-01 FR KNOB
57 X-4953-730-1 FRONT PANEL ASSY
58 4-224-562-01 BRACKET (HEART CAM L)
59 4-224-803-01 SPRING (PUSH), COMPRESSION
60 4-224-104-11 DAMPER
61 4-224-560-01 CAM(L), HEART
62 4-224-559-01 CAM(R), HEART
63 4-224-561-01 BRACKET (HEART CAM R)
64 4-225-053-01 SPRING R
66 A-4476-248-A PANEL BOARD, COMPLETE
67 4-951-620-01 SCREW (2.6X8), +BVTP
68 4-224-578-11 KNOB(MIC)
69 4-225-052-01 SPRING L
70 4-225-252-01 CUSHION (FOOT)
71 1-773-045-11 WIRE (FLAT TYPE) (17 CORE)
