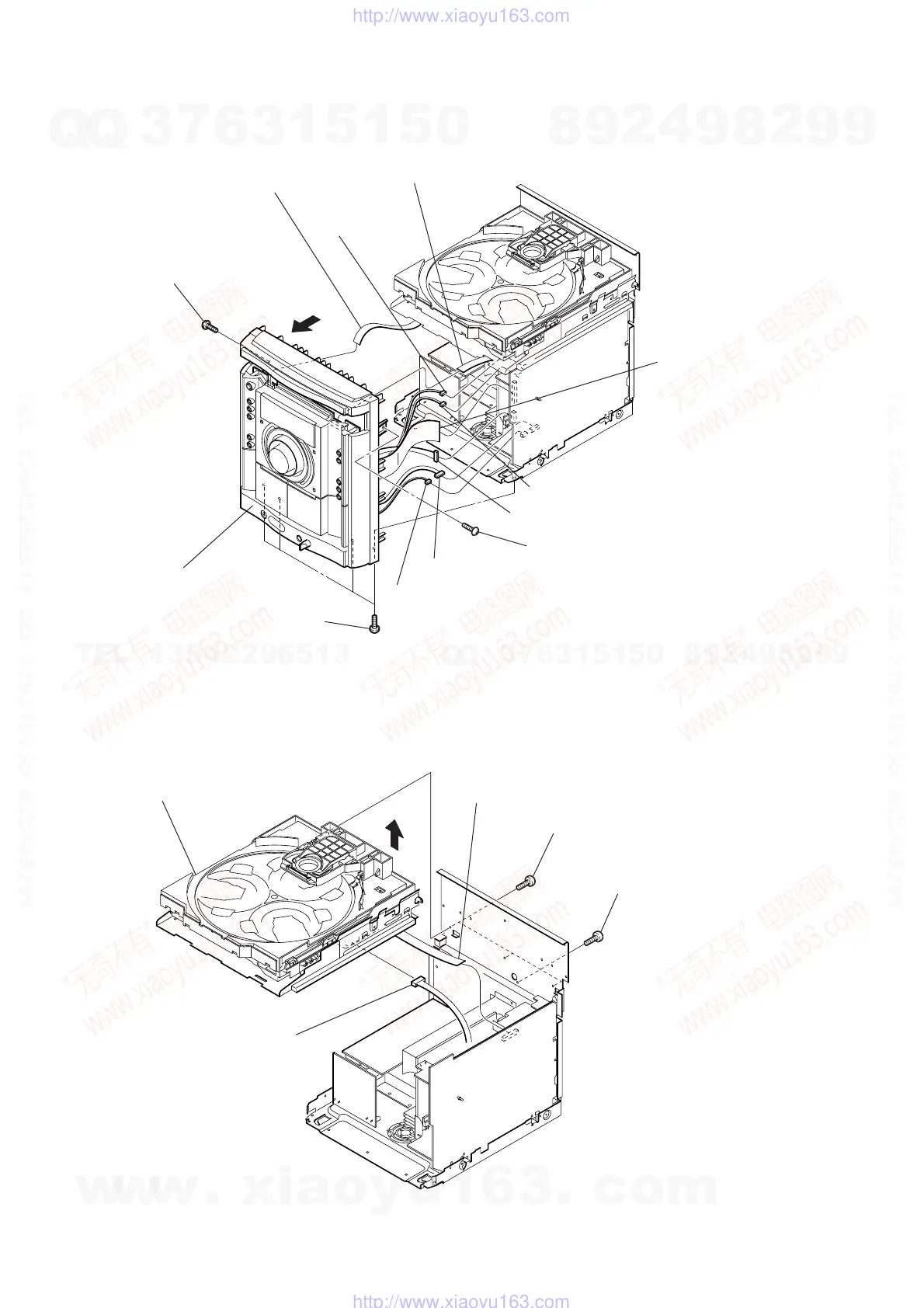

3-3. FRONT PANEL SECTION
qs CN601 (3P)
qa CN602 (8P)
0 CN751 (10P)
7 CN752 (27 core)
1 CN005 (13 core)
8 CN755 (4P)
9 CN203 (4P)
2 CN102 (13 core)
3 screw
(+BVTP 3
× 10)
4 screw
(+BVTP 3
× 10)
6
5
four screws (+BVTT 3 × 6)
qd front panel section
3-4. DVD BLOCK SECTION
1 screw
(+BVTP 3 × 10)
2 three screws
(+BVTT 3 × 6)
3
4
CN301 (17 core)
5 CN851 (8P)
6 DVD block section
